36 Quick reference guide | Atlan SW 2.0n
Principles of operation
9.1.4 Volume-controlled ventilation
9.1.4.1 Compliance compensation
The applied VT is corrected by the determined breathing hose compliance, i.e., an additional
volume is delivered in order to ensure the application of the volume to the patient. On the
product variant with the integrated patient-gas measurement module, the applied VT is
corrected by the amount of suction flow as soon as CO
2 respiratory phases are detected.
9.1.4.2 VC
9.1.4.3 VC - CMV
– Volume-controlled
– Pressure-limited
– Time-controlled
– Machine-triggered
– Constant inspiratory flow
In this volume-controlled ventilation mode, the patient receives the set tidal volume VT with
each mandatory breath.

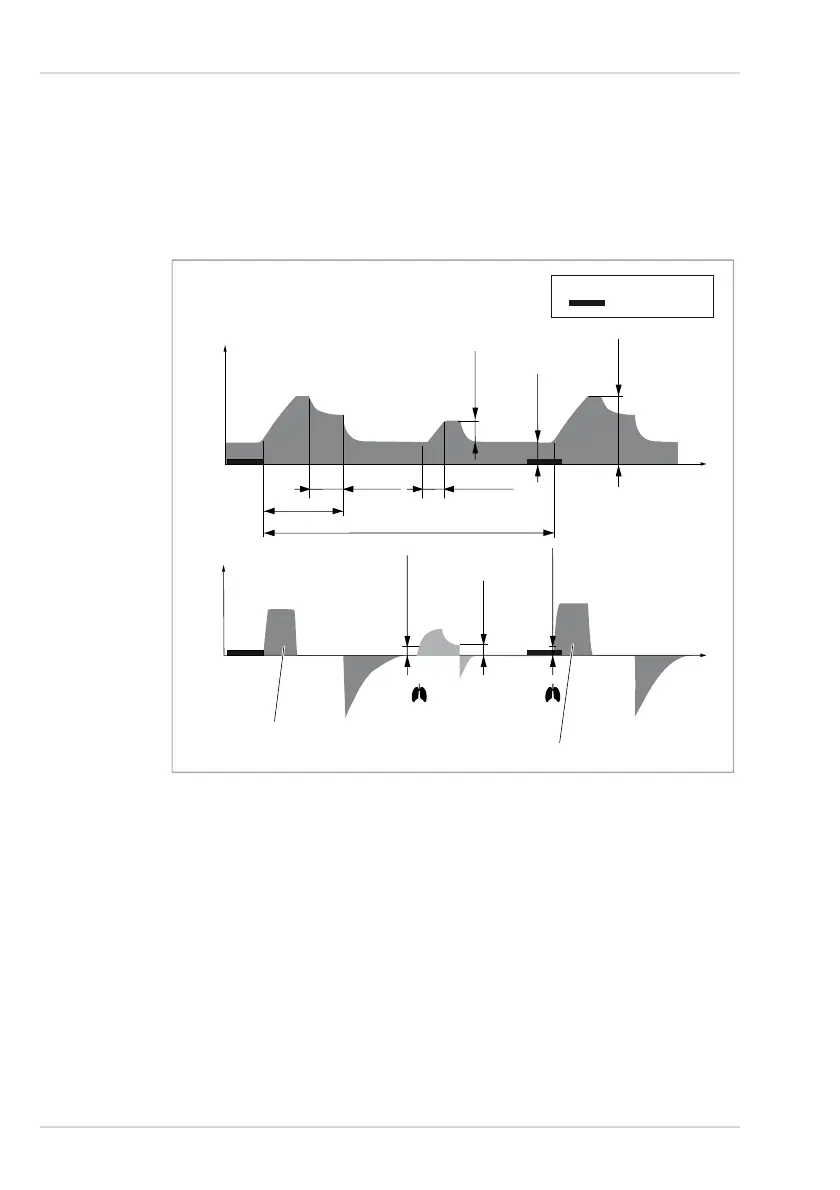

9.1.4.4 VC - SIMV
– Volume-controlled
– Pressure-limited
– Time-controlled
– Machine-triggered or patient-triggered
– Constant inspiratory flow
– Synchronized inspiration
36287
7LPH
7LPH
7ULJJHUZLQGRZ
LQVS
0DFKLQHWULJJHUHGEUHDWK
3DWLHQWWULJJHUHGEUHDWK
Flow
Paw
Pmax
PEEP
% Tplat
Ti
1/RR
Trigger
Trigger
Insp term
Slope
∆Psupp

Dräger Atlan Specifications

General

Manufacturer	Dräger
Model	Atlan
Type	Anesthesia Workstation
Power Supply	100-240 VAC, 50/60 Hz
Display	Touchscreen
Ventilation Modes	Pressure Support
Gas Supply	O2, Air, N2O
Patient Monitoring	Airway Pressure
Safety Features	O2 Failure Alarm
Tidal Volume Range	20 to 1500 ml
PEEP	0 to 20 cmH2O
Vaporizer Mounts	2
Gas Delivery	Electronic
Connectivity	Ethernet
Weight	Approx. 200 kg
