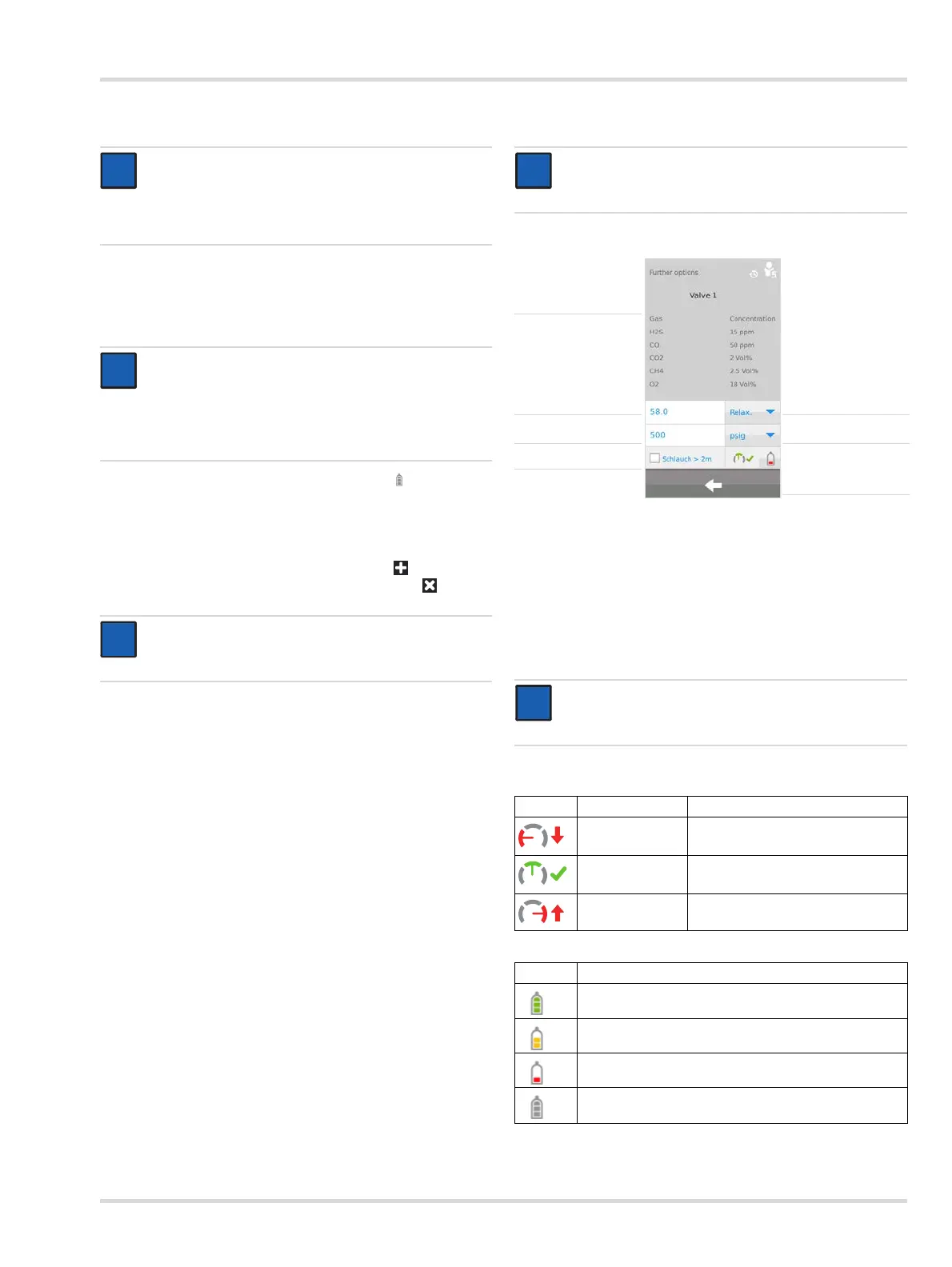

Basics
Dräger X-dock 5300/6300/6600 11
When using a Dräger gas cylinder:
1. Enter the part no. of the Dräger gas cylinder.
All the necessary details for the configuration will be filled
in automatically. The batch number and the expiry date can
be entered manually in addition.
2. If necessary select Further options and , to reset the
gas cylinder level indicator.
3. If required, configure other gas inlets in the same way.
When using a gas cylinder from another manufacturer:
1. Create or delete test gas component.
 Create a new test gas component with .
 Delete the current test gas component with .
2. Select gas.
3. Enter the gas concentration.
4. Select gas units.
5. If required, create additional test gas components.
6. The following information can optionally be given:
 Part no. of the gas cylinder
 Batch number of test gas cylinder
 Expiry date of the gas cylinder
7. If required, enter Further options.
4.7.1 Further options
1. Enter volume of gas cylinder.
2. Specify the type of volume:
compr. = cylinder volume
relaxed = gas volume (cylinder volume x pressure)
3. If required, refresh test gas pressure.
4. If necessary, activate Hose > 2m if the length of the test
gas hose exceeds 2 m.
5. If required, configure other gas inlets in the same way.
State of gas pressure:
Gas cylinder level indicator:
NOTICE
Upon entering the part no. of a Dräger gas cylinder, a
gas cylinder level indicator is displayed automatically,
unless this function was deactivated before (see
chapter 4.7.2 on page 12).
NOTICE
The values entered automatically must be matched
with those indicated on the test gas cylinder. If these
values are not identical, the value indicated on the gas
cylinder is to be considered and a manual correction of
the values must be made in the station.
NOTICE
Deleting all test gas components deletes all
information of the test gas inlet.
i
i
i
i
i
i
NOTICE
It is necessary to specify the volume, volume type,
pressure and unit to use the gas manager.
Configured test gas
components
►
Enter volume ►◄Volume type
◄
Enter unit for
pressure
Enter pressure ►
Hose length ►
◄ State of
gas pressure/
Gas cylinder level
indicator
1
1 Select this symbol to reset the gas cylinder level.
NOTICE
Dräger recommends not to exceed a hose length of
10 m for the gas supply hoses.
Display
Gas pressure
Meaning
<0.4 bar Gas pressure too low.
0.4 - 0.6 bar Gas pressure correct.
>0.6 bar Gas pressure too high.
Display
Gas cylinder level
61 - 100 %)
30 - 60 %)
<30%
Gas cylinder level indicator deactivated
i
i
i
i
