Draper BS250A - Blade Tracking Adjustment

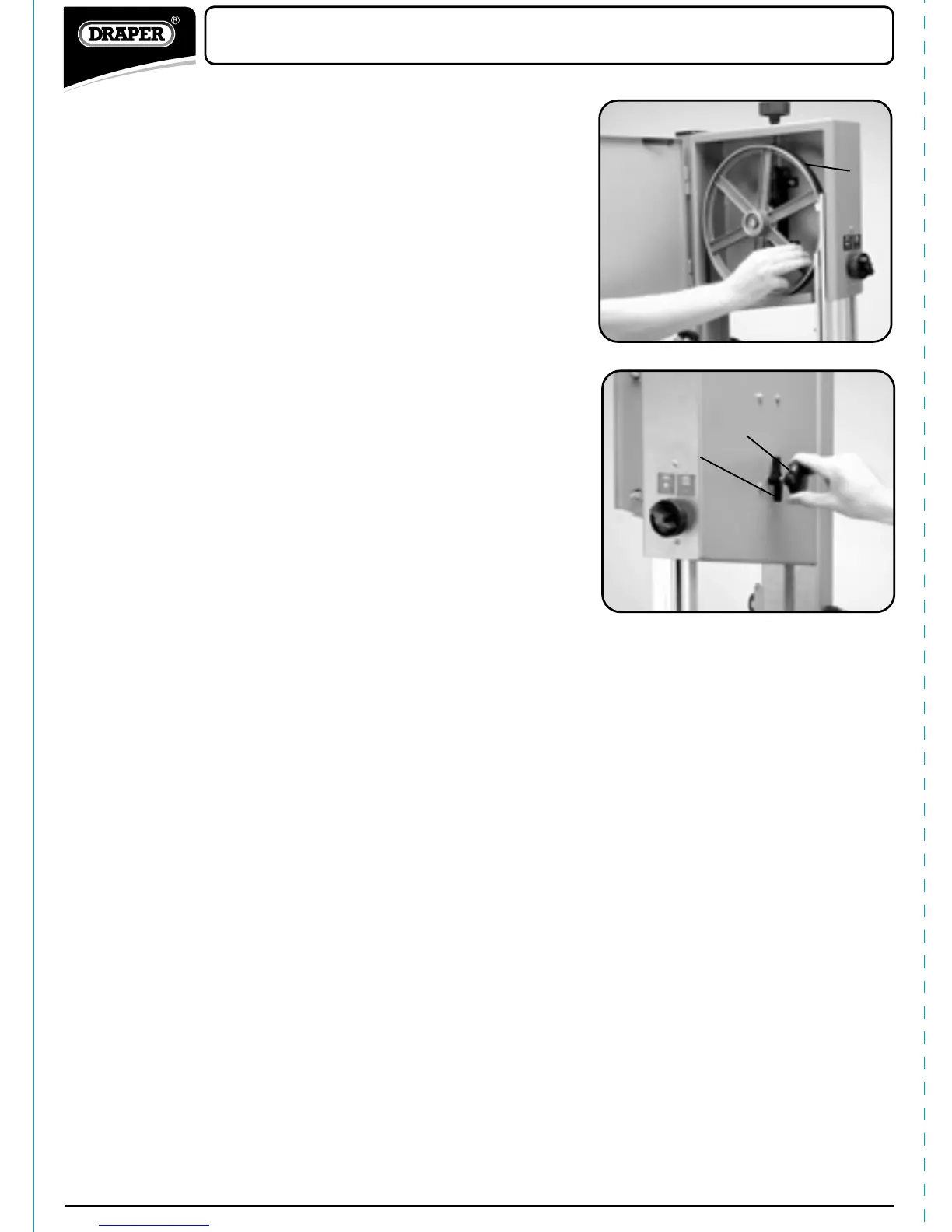

- TRACKING THE BLADE: (Fig.21-22.)
NOTE: The blade tension must be correctly adjusted
before tracking the blade.
Slowly turn the upper wheel 8 clockwise by hand
and watch the blade on the tyre. If the blade does not
stay central on the tyre the tracking will have to be
adjusted.
To adjust the upper wheel tracking loosen the lock nut
9turn the control knob :>clockwise if the blade
runs towards the front of the saw or anti-clockwise if
the blade runs towards the rear of the saw]. Watch the
reaction of the small adjustments on the blades
tracking.
FIG.21
FIG.22
OPERATION AND USE
8
:
9
✗
- 15 -
