Draper Paragon E - Section 5 - Bottom Closure Removal;Replacement; Section 6 - Tab-Tension Adjustment Procedure

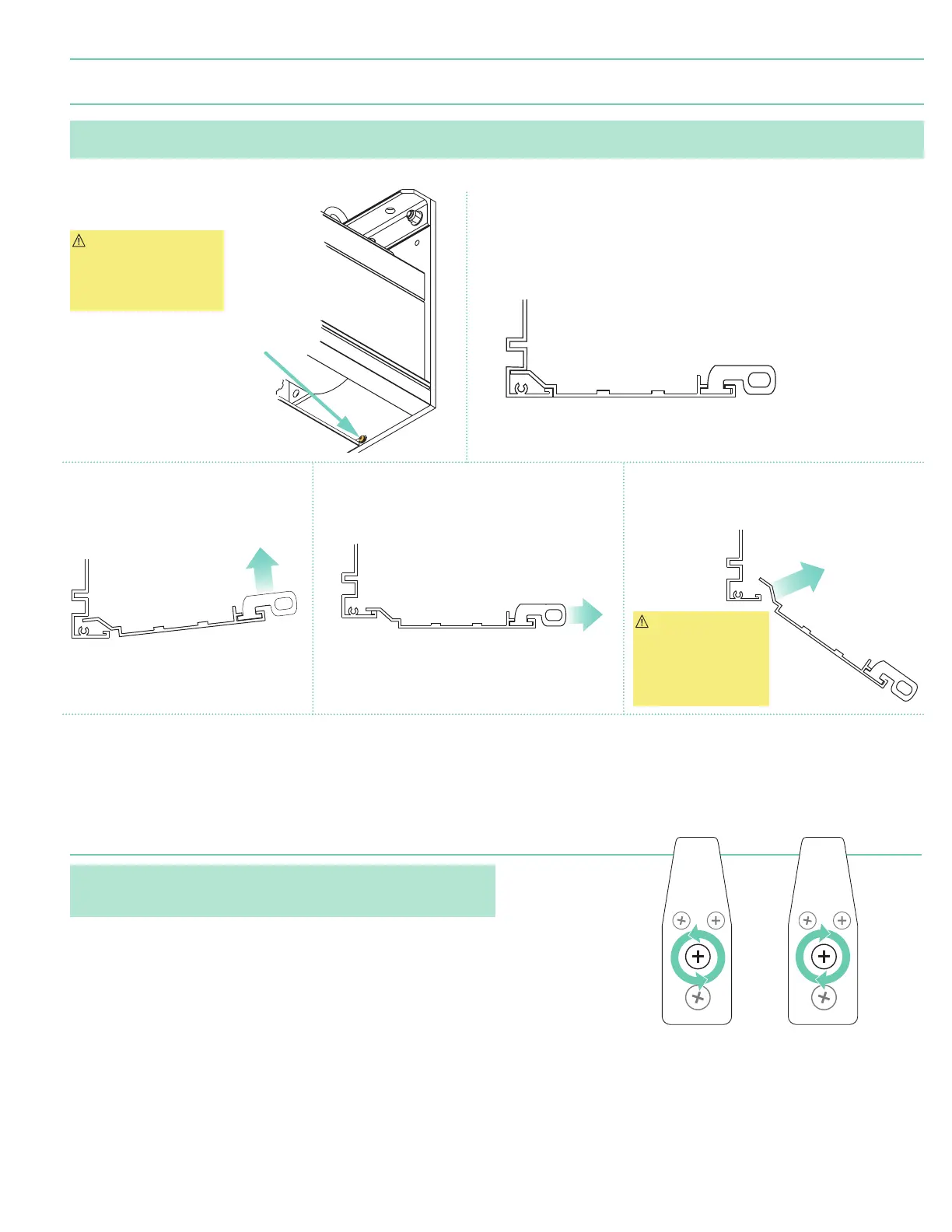

Section 5 - Bottom Closure Removal/Replacement
Please Note: Removal and replacement of the bottom closure panel requires two people positioned about 5' from each end of the panel.
Closure should be handled as shown in Step 5 to prevent bowing of the closure during handling.
Scr
ew and
Washer
Step 1
CAUTION: Before
removing bottom
closure, you must first
remove screws at each
end of case (see drawing) .
Step 5
Step 2
Step 3 Step 4
CAUTION:
Be sure to replace
screws and washers
at each end of case
when replacing
closure! (see drawing) .
Section 6 - Tab-Tension Adjustment Procedure
Please Note: Draper’s Tab-Tensioning System is factory-set, and under normal
circumstances will not require field adjustment. If wrinkles are observed,
however, follow the adjustment procedure shown in Figure 4.
Figure 4
PUSH & TURN
CLOCKWISE
to INCREASE TENSION
PUSH & TURN
COUNTER-CLOCKWISE
to RELEASE TENSION
END OF
DOWEL
END OF
DOWEL
page 5 of 7
Paragon E & V
