Draper Paragon E - Section 7 - Wiring Diagrams: Standard and Quiet Motor

Please Note: Do not wire motors in parallel.
Section 7 - Wiring Diagrams: Standard and Quiet Motor
FACTORY WIRING
Low-Voltage wiring by Others
DASHED WIRING BY ELECTRICIAN
GND
L1
N
Red-to screen (directional)
Brown-to screen (directional)
Yellow-to 110V-120V AC-Hot
Black-to 110V-120V AC-Hot
White-Common to screen
& 110V-120V AC Neutral
Green/Yellow
(Ground)
IR Eye Input
LVC-IV motor lead bundle
LVC-IV AC power input bundle
Low-Voltage
Trigger
4-28 VDC
RS232/485
Inputs/Outputs
3 Button Wall Switch
DOWN - Black
COM - White
UP - Red
Wall Switch
Electrically Straight
Data Cable to more
LVC-IV modules.*
To
110-120 VAC
Line
*A maximum of six (6)
LVC-IV modules can
be linked together.
Receiver Button
FUSE - 3.15 AMP
250 VAC 5x20mm
White (Common)
Red (Up)
Black (Down)
INTERNAL SCREEN WIRING
Green/Yellow
(Motor Ground)
TO: MOTOR LEADS
Location of key
operated 0n-off
switch if furnished.

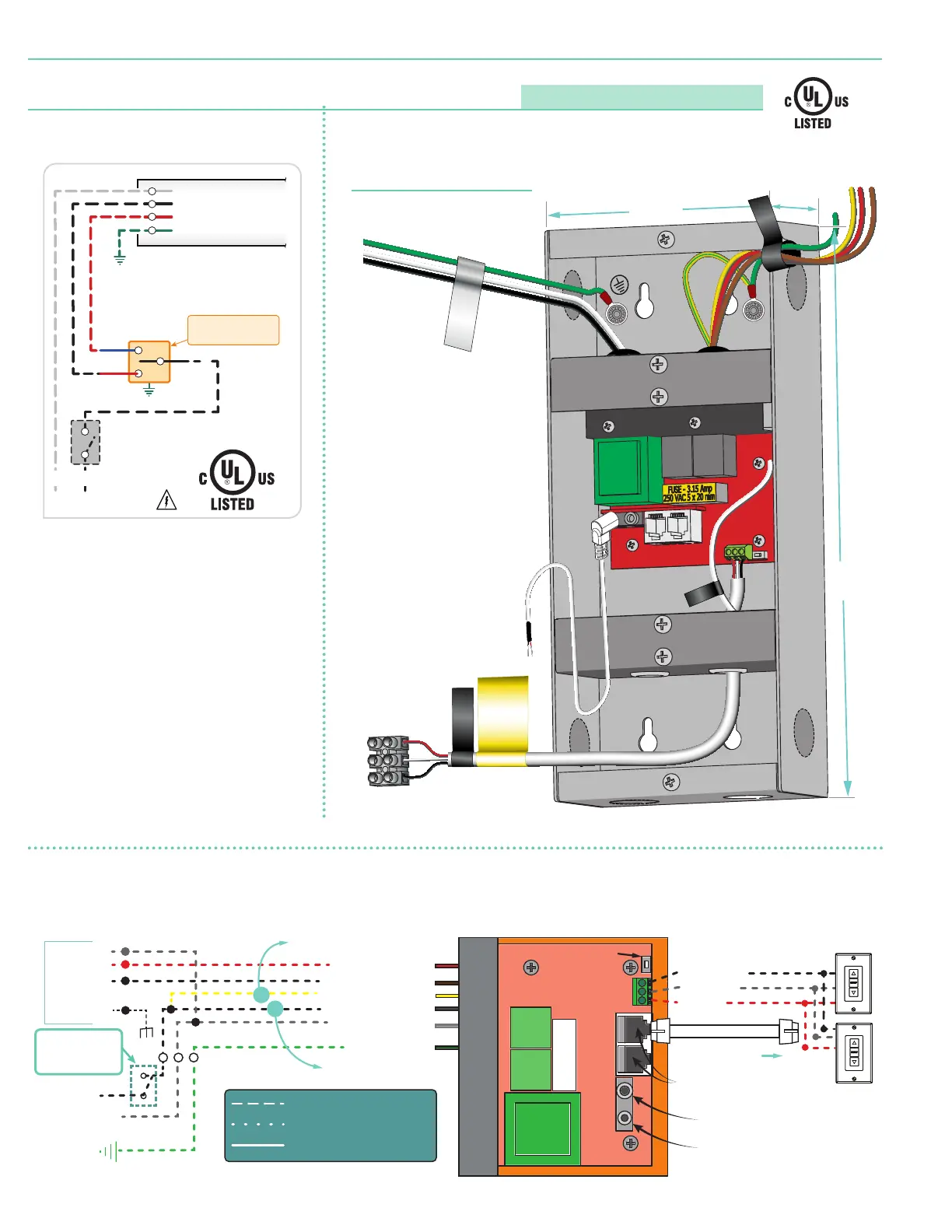

WIRING DIAGRAM - External LVC-IV (Low-Voltage Control Module)
External LVC-IV Junction Box
2.214"
(56mm)
4.5"
(114mm)
10.39"
(264mm)
MOTOR LEADS
WALL SWITCH
AC POWER INPUT
WARNING
DRY CONTACT
CLOSURE ONLY.
APPLYING VOLTAGE
HERE WILL DAMAGE
CONTROLLER.
RF Antenna
Wire
110-120V Motor and Quiet Motor
110-120V MOTOR STANDARD
Internal Screen Wiring
Single Station Control
Green (Ground)
White (Common)
RED (Up)
Black (Down)
RED
BLUE
Black (L1)
CONTROL
SWITCH
Location of key
operated on-off
switch if furnished.
To 110-120V Line
Single gang box by others.
Min. 4" x 21⁄8" x 17⁄8" deep.
(102mm x 54mm x 48mm)
Dashed wiring
by electrician
L1
N
page 6 of 7
Paragon E & V
