VigorFly 200 Series User’s Guide
57

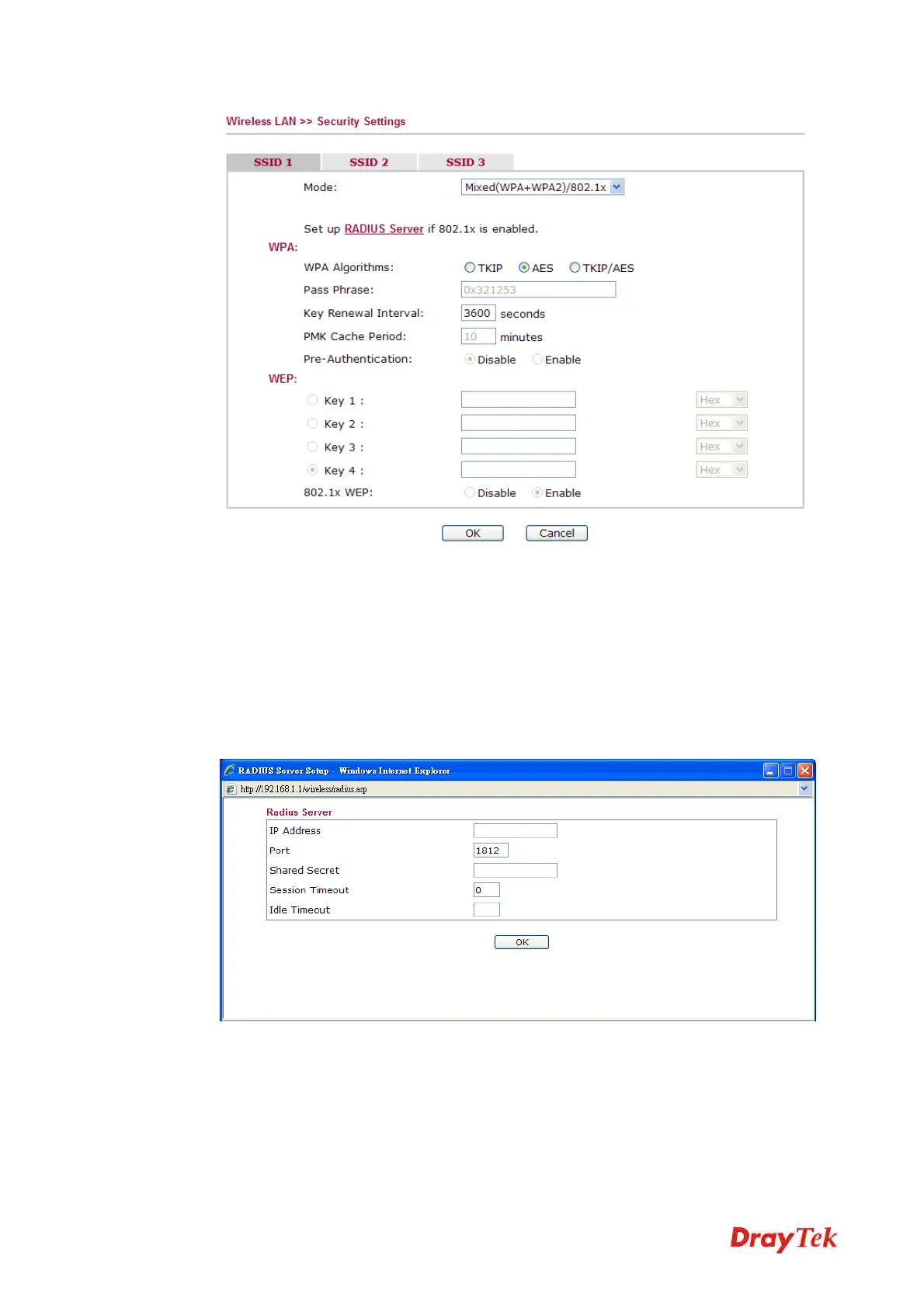

WPA Algorithms
Select TKIP, AES or TKIP/AES as the algorithm for WPA.
Key Renewal
Interval
WPA uses shared key for authentication to the network.
However, normal network operations use a different
encryption key that is randomly generated. This randomly
generated key that is periodically replaced. Enter the
renewal security time (seconds) in the column. Smaller
interval leads to greater security but lower performance.
Default is 3600 seconds. Set 0 to disable re-key.?
Click the link of RADIUS Server to access into the following page for more settings.
IP Address
Enter the IP address of RADIUS server.
Port
The UDP port number that the RADIUS server is using.
The default value is 1812, based on RFC 2138.
Shared Secret
The RADIUS server and client share a secret that is used to
authenticate the messages sent between them. Both sides
must be configured to use the same shared secret.
