Dri-Eaz LGR 7000XLI - Cleaning the Coils and Block

⅜ in. rear panel
fasteners (×6)
⅜ in. cover
fasteners
(×2)
Pump location

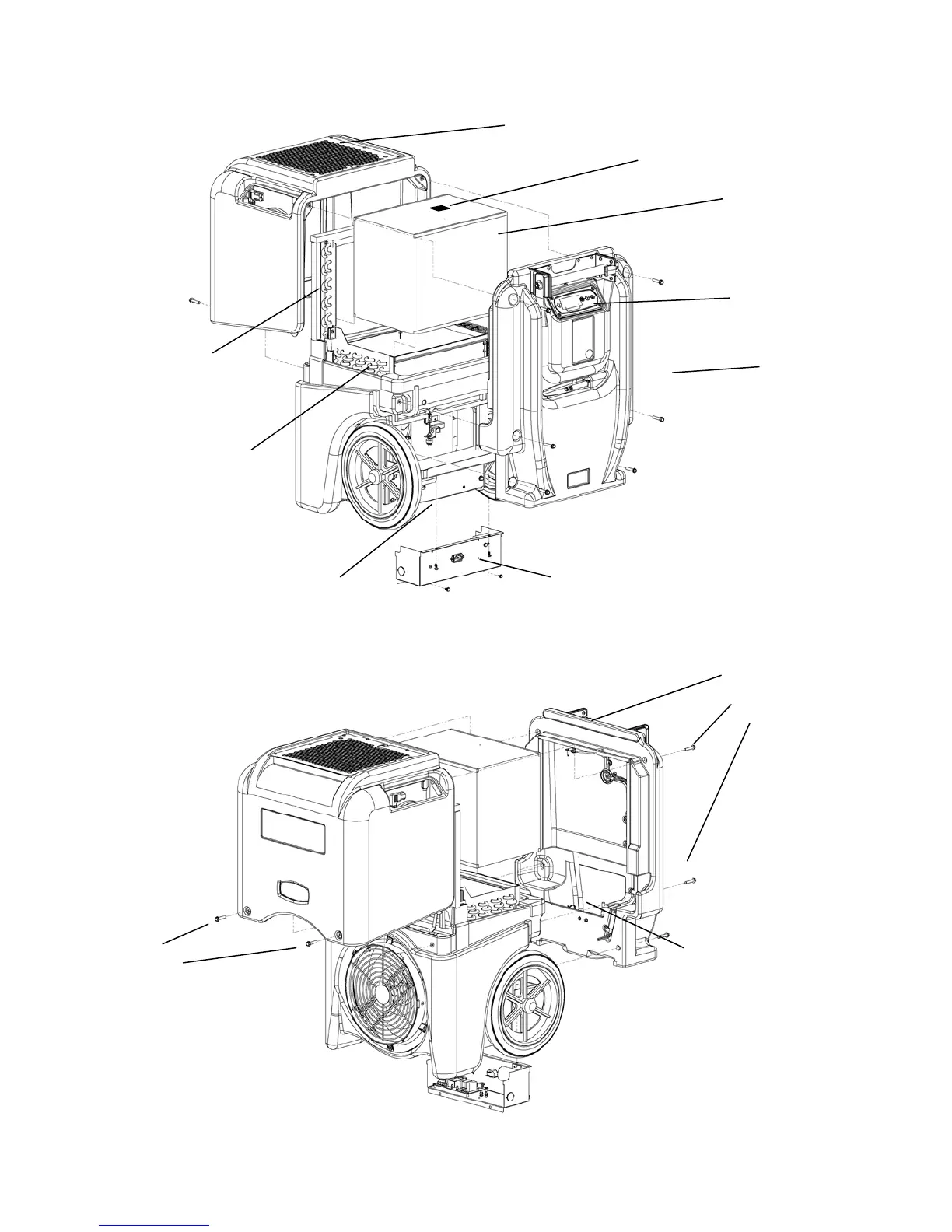

FIG. D: PARTS DIAGRAM
Heat exchange
block.
HAF filter
Rear panel
Condenser (hot) coil
Evaporator (cold) coil
Cover
Electrical box.
Control
panel
⅜ in. rear panel
base plate fasteners
(×5, not shown)
⅜ in. rear
panel
fasteners (×6)
Sensor chip. Lead cable
(not shown) is attached to
back of control panel.
