1. Before starting operation
1.1 Checking supplied components and parts.
When you receive the VF61, check it carefully.
(1) Make sure that the specifications of VF61, accessories and spare parts are properly in
accordance with your order. Check the logo mark on the cover to see if the unit type is as
you ordered.
Example: 2R2: 2.2
3R7: 3.7 200V type: 22
5R5: 5.5 400V type: 44
7R5: 7.5 Voltage (V)
Inverter capacity (kW)
Applicable power source INPUT: 380 to 460V, 3-phase, 50/60 Hz
OUTPUT: 2.2kW, 5.5A
(2) Make sure that the supplied VF61 hasn't been damaged during transportation.
(3) Make sure that no screws, bolts, etc. are loose or dislocated.
If you find some problems, contact the dealer you purchased the VF61 from.
1.2 Structure of the unit

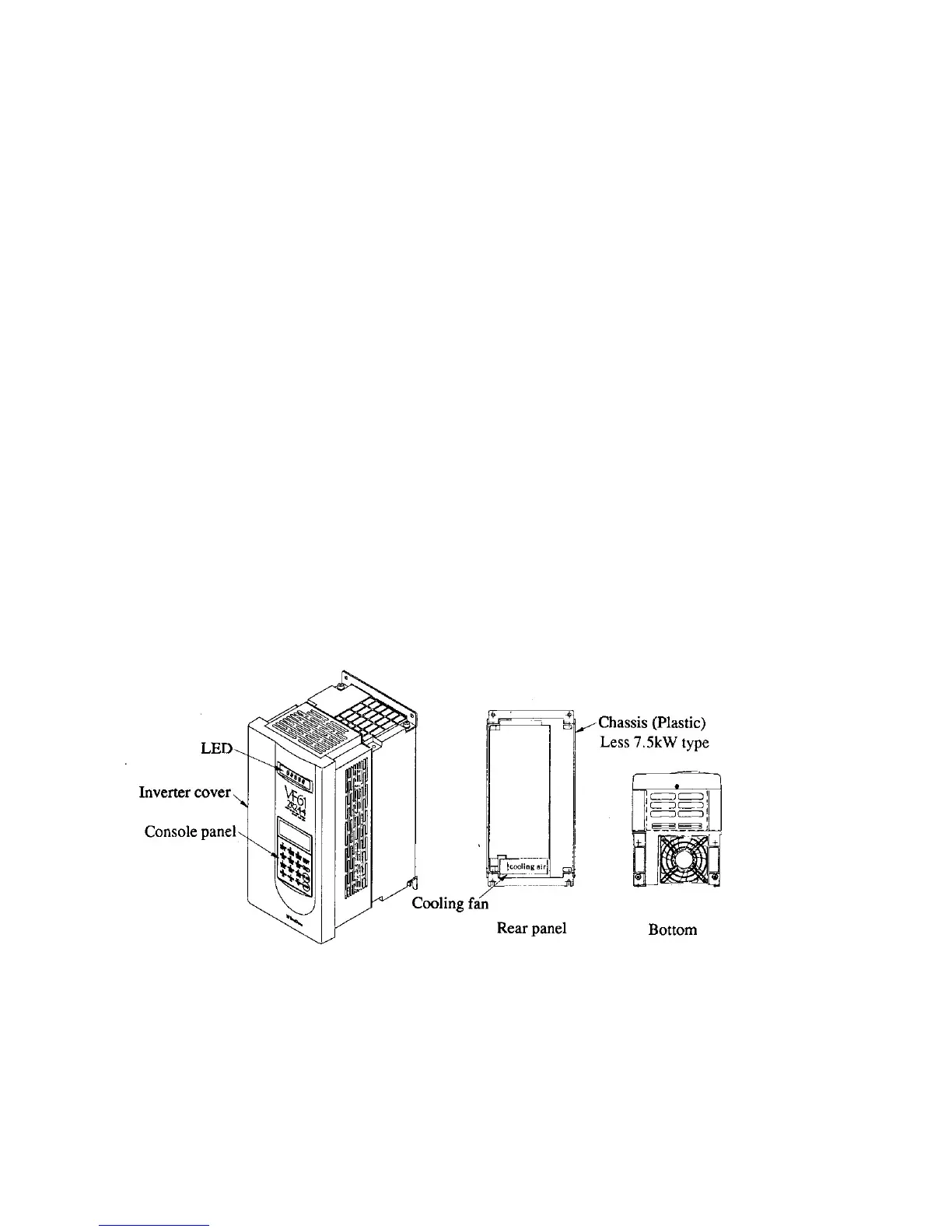

1.2.1 Appearance of unit and components
