-4-
Safety Precaution
Terminals 10 and 34 carry 0V of the control circuit. Never connect these terminals to GND.
1.4.2 Terminal blocks
(1) Main circuit terminal block
R, S and T Connect AC power to these terminals. (Do not supply 400V to the
200V type inverter.)
Terminal 1 and 2 Connect the wires of the optional DC reactor DCL to these terminals.
These terminals are short circuited before shipment.
Terminal 2 and B Connect the optional dynamic braking (DB) resistor to these terminals.
Terminal 2 and 0 Connect the optional DB unit and resistor to these terminals.

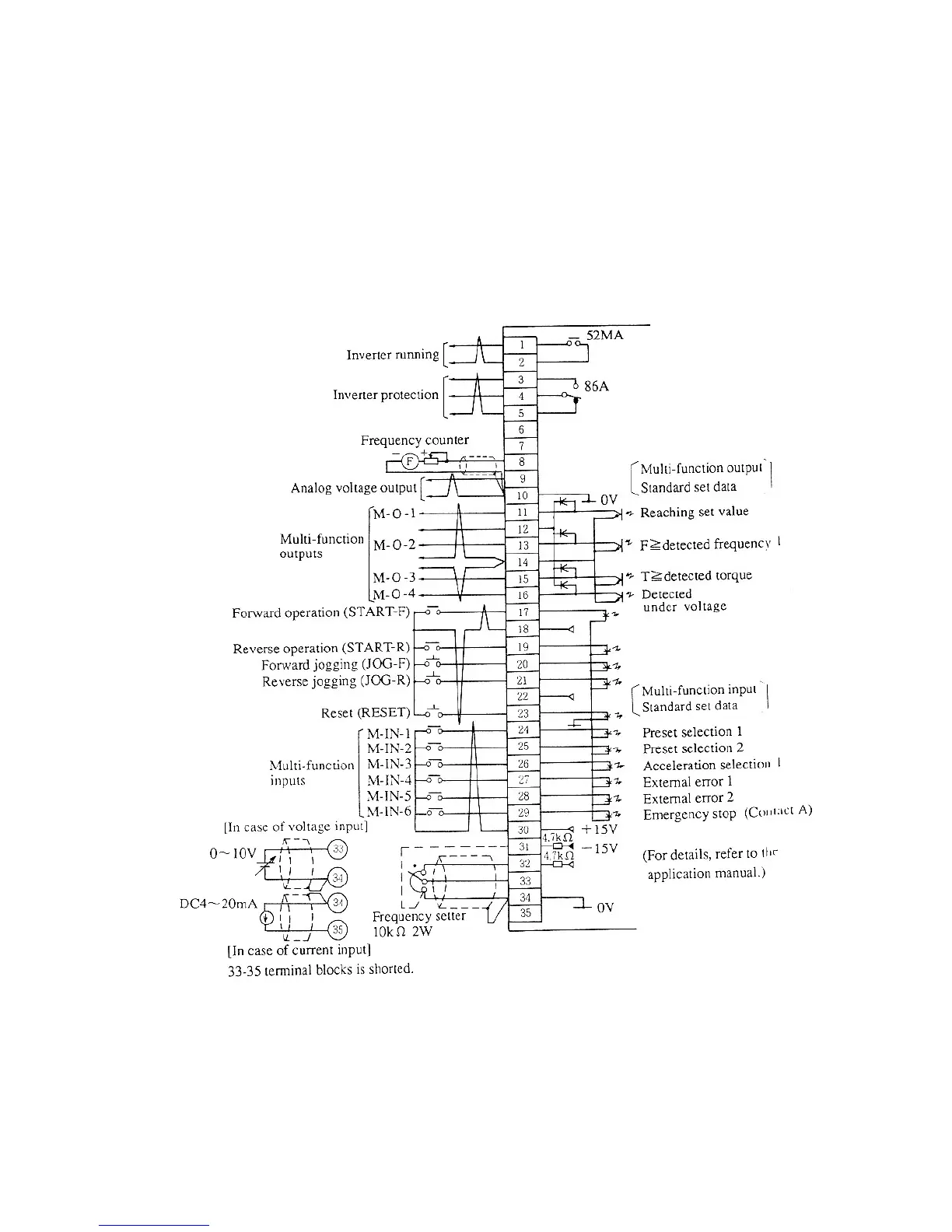

(2) Control terminal block
