11

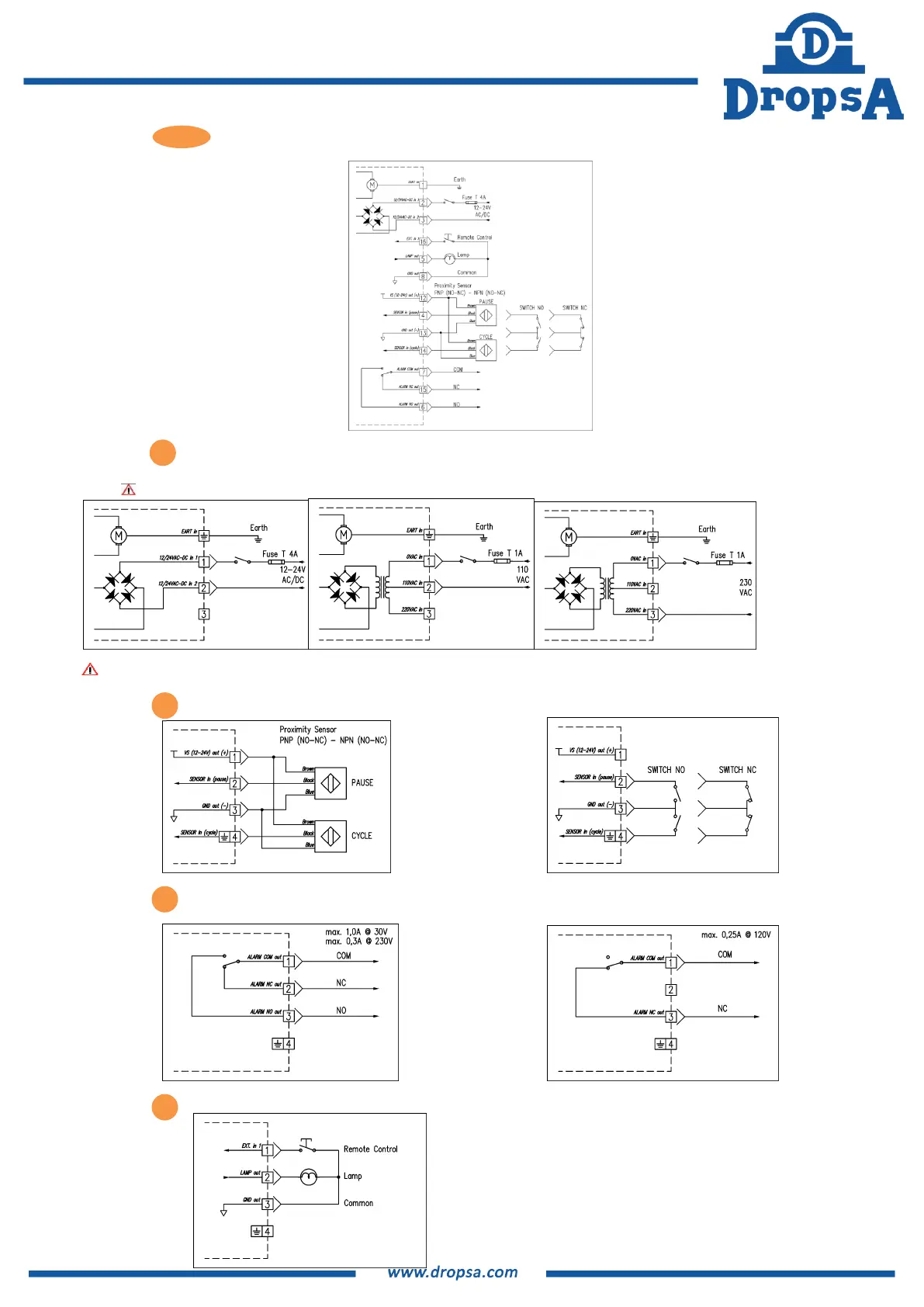

Wiring MULTIPOLE Connector
Wiring POWER SUPPLY
12/24 VAC-VDC 110VAC 230VAC
Wiring CYCLE SENSOR
Wiring MINIMUM LEVEL
AUTOMATIC VERSION MANUAL VERSION
Wiring REMOTE CONTROL
A
D
B
C
Amph
On 12/24 VAC-VDC manual version do not connect earth terminal
