6.7 INSTALLING IP69K PROTECTION EQUIPMENT (OPTIONAL)*.
Bravo pump can be configured with an IP 69K protection degree according to DIN 40050.
To do this is necessary install the right connector plate as mentioned at paragraph 6.2. In addition the key board
protection cover has to be mounted.

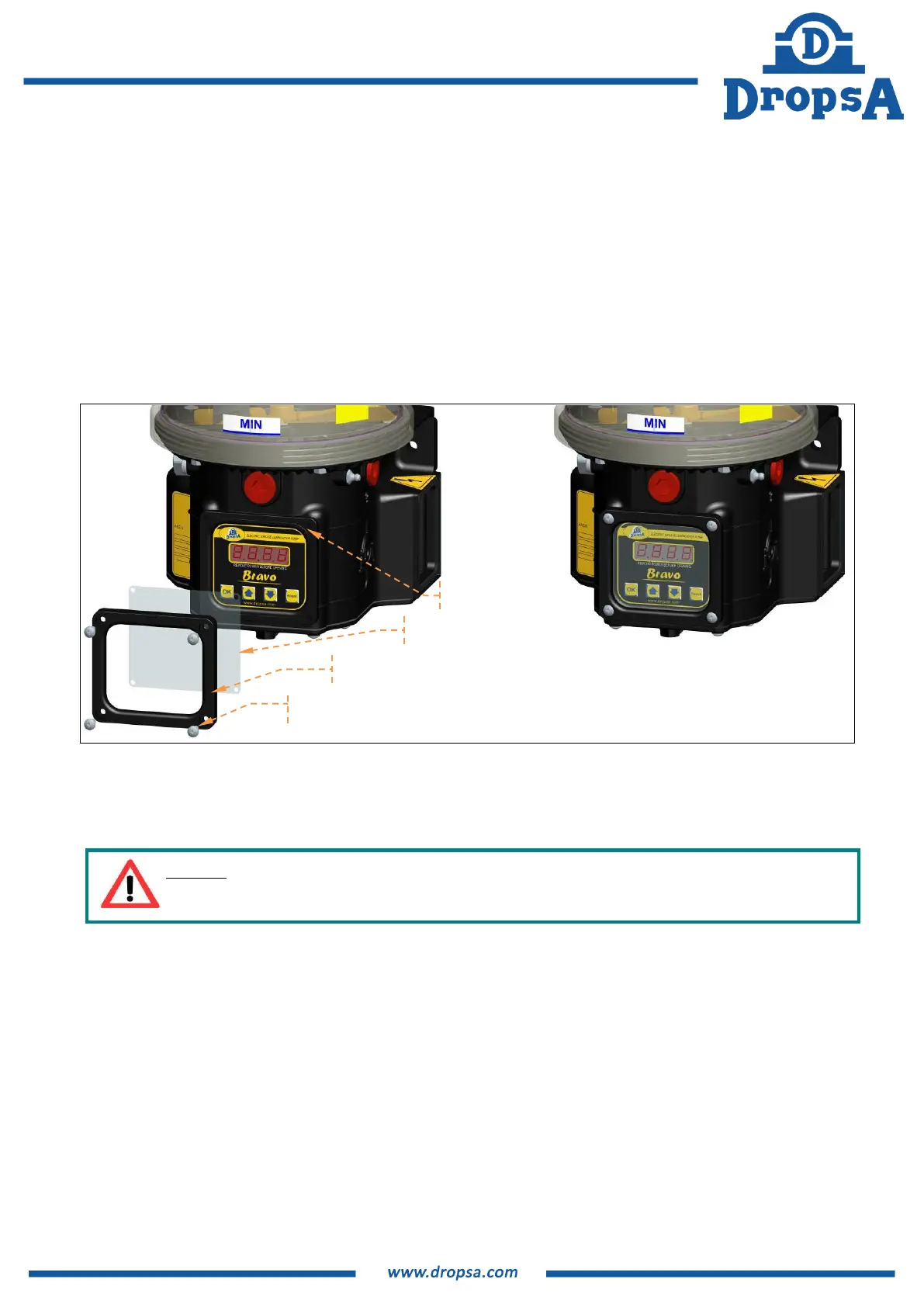

For cover assembling proceed according to the following steps:
Remove the four plugs on the pump body using a screwdriver avoiding the sealing rim damage;
Fit the silicon membrane into the square frame seat;
Fit the four screws into the holes assembling the membrane;
Fit the complete frame avoiding a membrane movement;
Screw the four screws.
*Note: IP69K kit can be installed on pumps manufactured with a WO following 1207322.
6.8 ELECTRICAL CONNECTIONS & WIRING
The electrical connection should be carried out an electrician who has understood and identified the various connectors
and wiring that has been selected for the system (operating voltage, connector types, remote control, cycle sensors).
Connect the pump to the power supply using the appropriate power connector (refer to 6.7.1 Connector types) again
ensuring they are suitable for the selected voltage and frequency. The power cable should be adequately chosen to ensure
it can handle the current at the specified voltage.
On 110V/230VAC versions it is strongly recommended that a 1A fuse T and a differential trip is installed with an activation
level of 30 mA at 1 millisecond max. Isolation capability should be = 10kV minimum and nominal current ≥ 4Amps.
CAUTION: Before carrying out any electrical wiring you should verify the label on the pump to ensure
that the correct operating voltage is being used and ensure that all power is removed.
