6.5 HYDRAULIC CONNECTIONS
The hydraulic connection to the pump is via the pump outlets using adequate 1/4BSP fitting and tubing. Additionally there
is a 1/8” BSP port that can be used as a return line or a remote refilling line. Ensure that any refilling system provides clean
grease to the pump.
6.6 INSTALLING THE OPTIONAL SMP OR SMPM DIVIDER VALVE

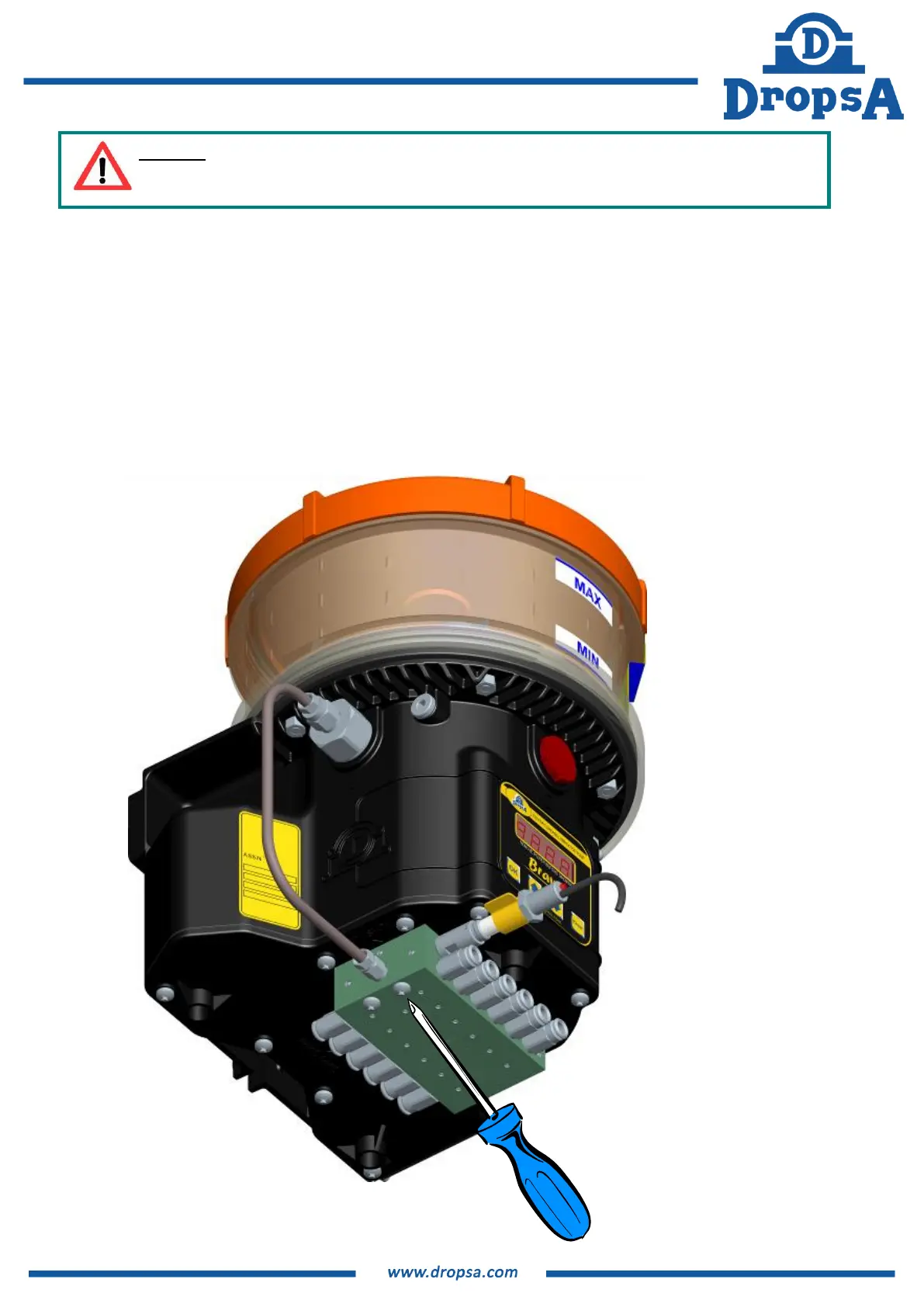

On the base of the pump it is possible to install an SMP or SMPM distributor valve to further divide the lubricant. This
should be secured using fixing screws. Refer to the diagram below:
WARNING: Based on the position of the internal cam drive it may be difficult to screw in the pump
element a sit compresses the return spring. In this case, use another outlet or of pay particular attention
when inserting the pump element and ensure that it does not cross-thread.
