13

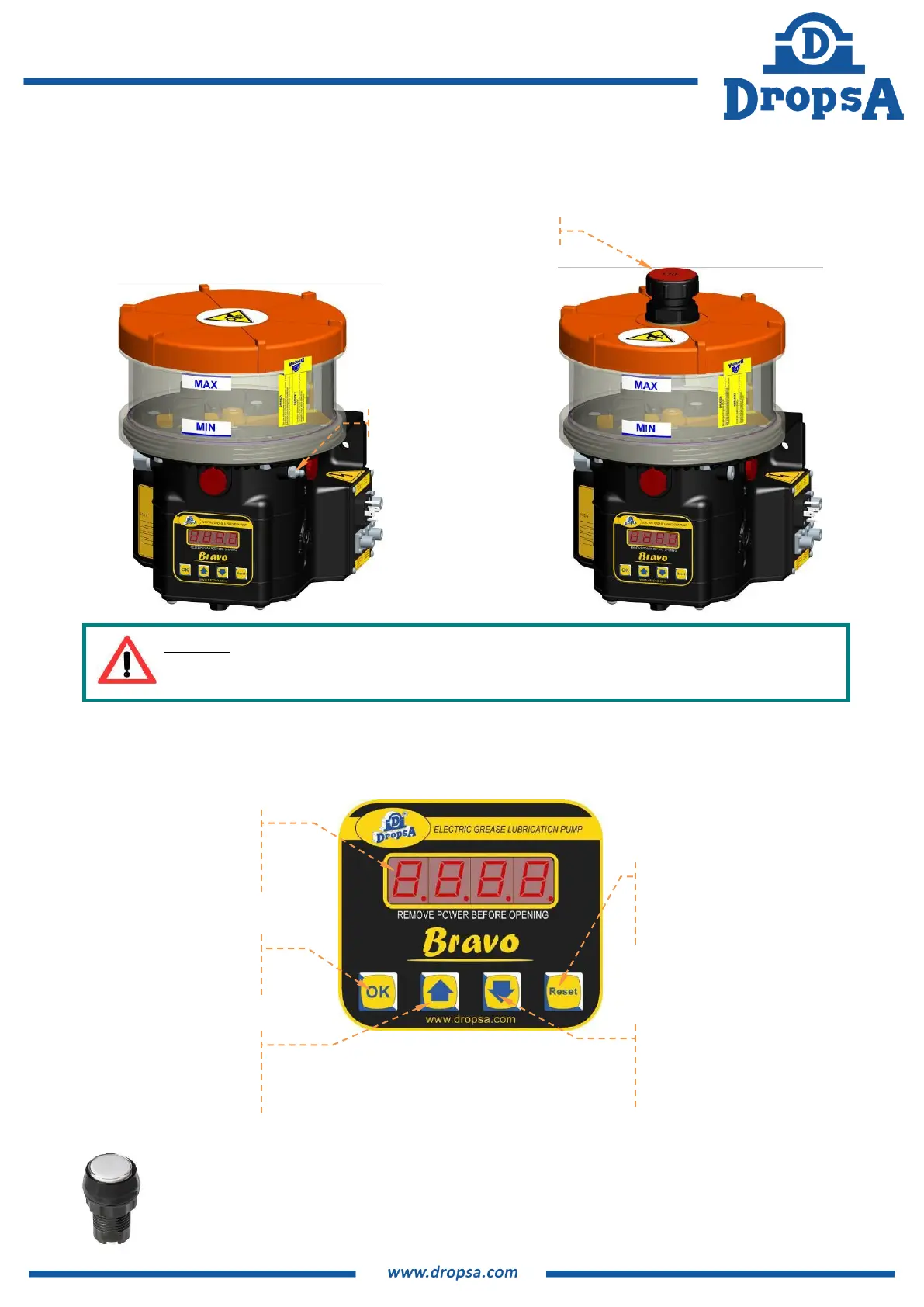

7.4 REFILLING THE RESERVOIR
The refilling of the tank is carried out through the dedicated filling ports with adequate filtration to ensure clean lubricant.
Continue to fill unit until the max level is reached/ this level should not be exceed. In the event the user overfills the tank,
the excess lubricant will be expelled through vent holes located under the lid.
7.5 CONFIGURATION
Automatic version
Control panel layout
Optional Remote Light Button
The light is constantly lit when the pump is running.
Flashes when a minimum level or other alarm is detected by the control system in the pump. The number of
flashes defines the anomaly code. When pressed during the pause (standby) cycle, it will make the pump
starts a lubrication cycle and then return to normal automatic operation. The RESET of the pump is allowed
when the button is pressed for 6 seconds.
WARNING: to avoid introducing contamination into the pump and voiding the warranty ensure that
refilling is always carried out through the designated ports using clean grease.
Refer to 14.2 for more information about lubricant characteristics.
DISPLAY
Indicates the parameter
being programmed and
the set value
OK
Confirms the value
shown on the display
UP ARROW
Allows the user to increment
the setting value shown on
the display
DOWN ARROW
Allows the user to decrease
the value shown on the
display
RESET
Resets the current lube cycle,
cancels any alarms and
restarts the program.
