16
PAUSE TIMER: SET Hours and Minutes
TIMER to suspend the cycle
PAUSE COUNTER: number of divider switch cycles to wait in
pause
CYCLE TIMER:
if timed cycle it indicates the duration;
if cycle with control impulses, indicates the waited
maximum time of the single impulse before alarm
CYCLE COUNTER: number of divider switch cycles per
lubrication cycle. input used:
Sensor Cycle if Cycle Mode
Sensor Pause if Pulse Mode
PRELUBE: Start –controller in Lubrication mode when
powered on.
Motor DUTY: allows reduction in pump output by adjusting
motor speed
Number of cycles given from the manual input
( it allows eventual filling system)
If OFF, to expiring of the pause time, stars the lubrication
cycle
If ON, to expiring of the pause time, gives Pause Time
Overrun alarm.
If OFF, the minimum level is excluded.

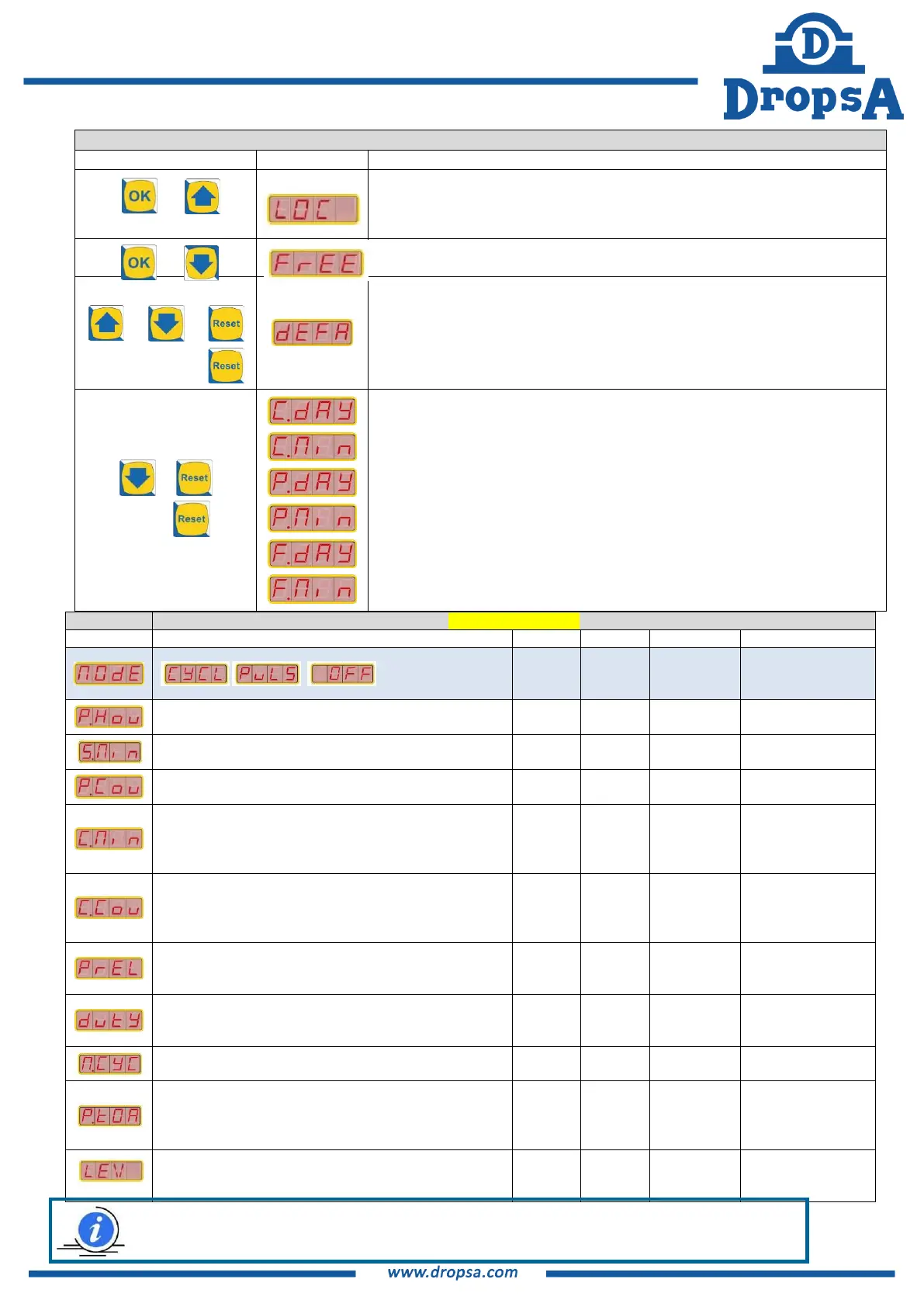

SPECIAL FUNCTIONS AND PARAMETERS
Lock key board. Reset is operating
Reset the default values in the active operating mode
Display total days in working state
Display total minutes in working state
Display total days in pause state
Display total minutes in pause state
Display total days in alarm state
Display total minutes in alarm state
NOTE: Continuous Cycle: Continuous cycle can be achieved by setting the pause timer to zero.
Complete cycle: Valid on input full cycle ON>OFF>ON or OFF>ON>OFF. Both: When the pause timer is set to non zero, the system
operates in a combined mode. The cycle will start EITHER on impulse Count OR Pause Time being reached.
