Keypad Configuration
Keypad Configuration

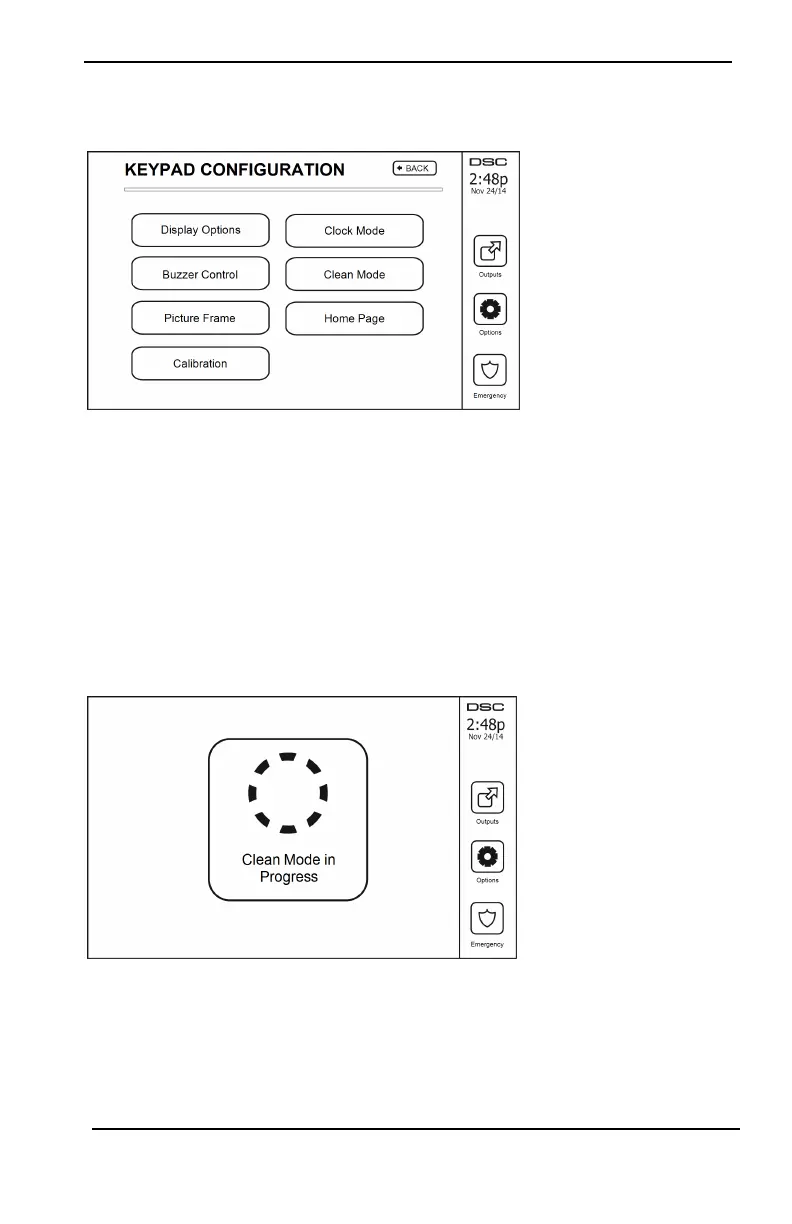

Figure 10- Keypad Configuration
Display Options: sets the brightness and screen timeout of the Touchscreen, as well as screen saver
options.
Buzzer Control: sets the buzzer volume of the Touchscreen. Note: For SIA CP-01, the buzzer volume
shall not be placed at the minimum setting.
Note: For UL/ULC installations, the buzzer level shall not be changed from the default level.
Picture Frame: selects the pictures that will be displayed on the slideshow.
Calibration: calibrates the Touchscreen.
Clock Mode: displays the digital clock.
Clean Mode: allows the user to touch (i.e., clean) the screen without enabling or disabling any functions.
The screen will remain in this mode for 30 seconds, then return to the Keypad Configuration screen.
Figure 11- Clean Mode
Home Page: can be configured in one of two different views, Classic (square buttons) and Contemporary
(rondel).
- 26 -
