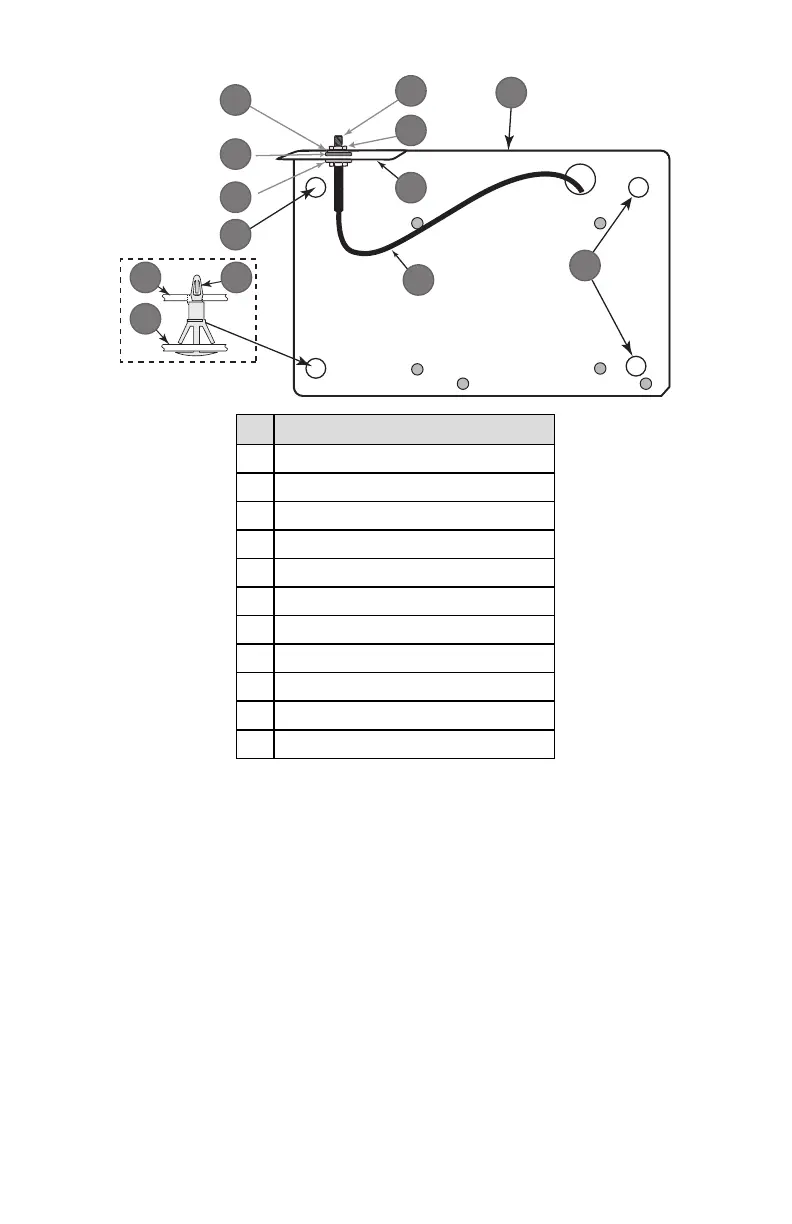

Figure 1: Communicator Mounting Bracket
Item Description
1 External Antenna Screw Thread
2 Brass Nut
3 Brass Washer
4 Nylon Washer (flat)
5 Antenna Mounting Tab
6 Nylon Washer with bushing (thicker flat washer)
7 Antenna Cable
8 Mounting Holes
9 Mounting Plate
10 Communicator Board
11 Stand Off
2.
Install the Communicator into the panel:
a.
Attach one end of the PC-LINK cable to the panel PCLINK_2 header on the panel (red wire goes on the right-
hand pin of the panel PCLINK_2 header (see Figure 3).
b. Insert the assembled communicator into the panel.
NOTE: Ensure that the threaded antenna connection is visible through the knockout hole at the top right of
the panel.
c. Place the nylon washer with bushing (thick flat washer) onto the threaded section of the antenna cable. Insert
the threaded section through the antenna mounting knockout hole at top right of panel.
d. Place the second nylon washer (flat),followed by the brass washer and the brass nut, onto the threaded sec-
tion of the cable, outside the panel. Tighten the assembly by hand only (finger tight only- do not over tighten
the antenna assembly).
e.
Locate the screw hole on the right side wall of the panel. See Figure 2 "screw".Line up the assembled com-
municator with the right side wall of the panel and, using the screw provided, secure the mounting bracket to
the panel.
f. Attach the other end of the PC-LINK cable to the communicator (red wire goes on the right-hand pin of the
communicatorPC-LINK header (See Figure 3).
g. Using light pressure (finger tight only), attach the supplied white quad band whip antenna to the threaded
antenna connector at top of the panel.
10
