Note: PLINK3 DSC operation is not backed up
by the control panel’s battery and it is shut down
during AC failure.

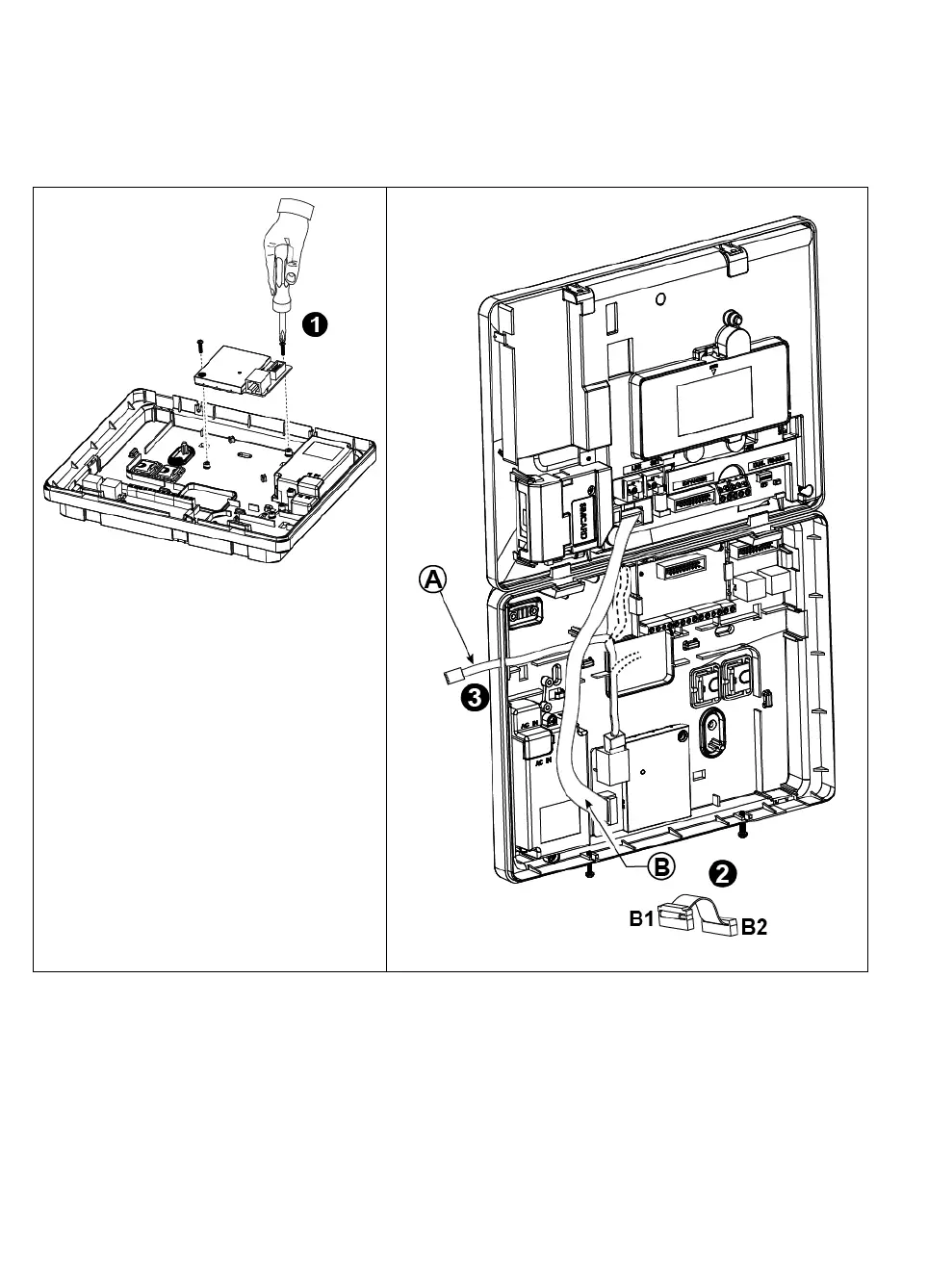

1. Mount the internal PLINK3 DSC into the back
unit and fasten it with 2 screws.
2. Connect the flat cable (B) from the front panel
to the PLINK3 DSC, as follows: Connector B1
to the front panel; connector B2 to the
PLINK3 DSC.
3. Connect the Cat-5 cable from the PLINK3
DSC to the home router.
Note: In order to prevent interference to the
antenna, do not route the Cat-5 cable through
the cable entry knockout on the right side of
the panel.
A. Cat-5 cable to home router
B. Flat cable
B1. This side for front unit
B2. This side for PLINK3 DSC
