16 D-306048 WP8033 Installer's Guide
EXTERNAL POWER CONNECTION
Connect the power adaptor to the front panel power connector.

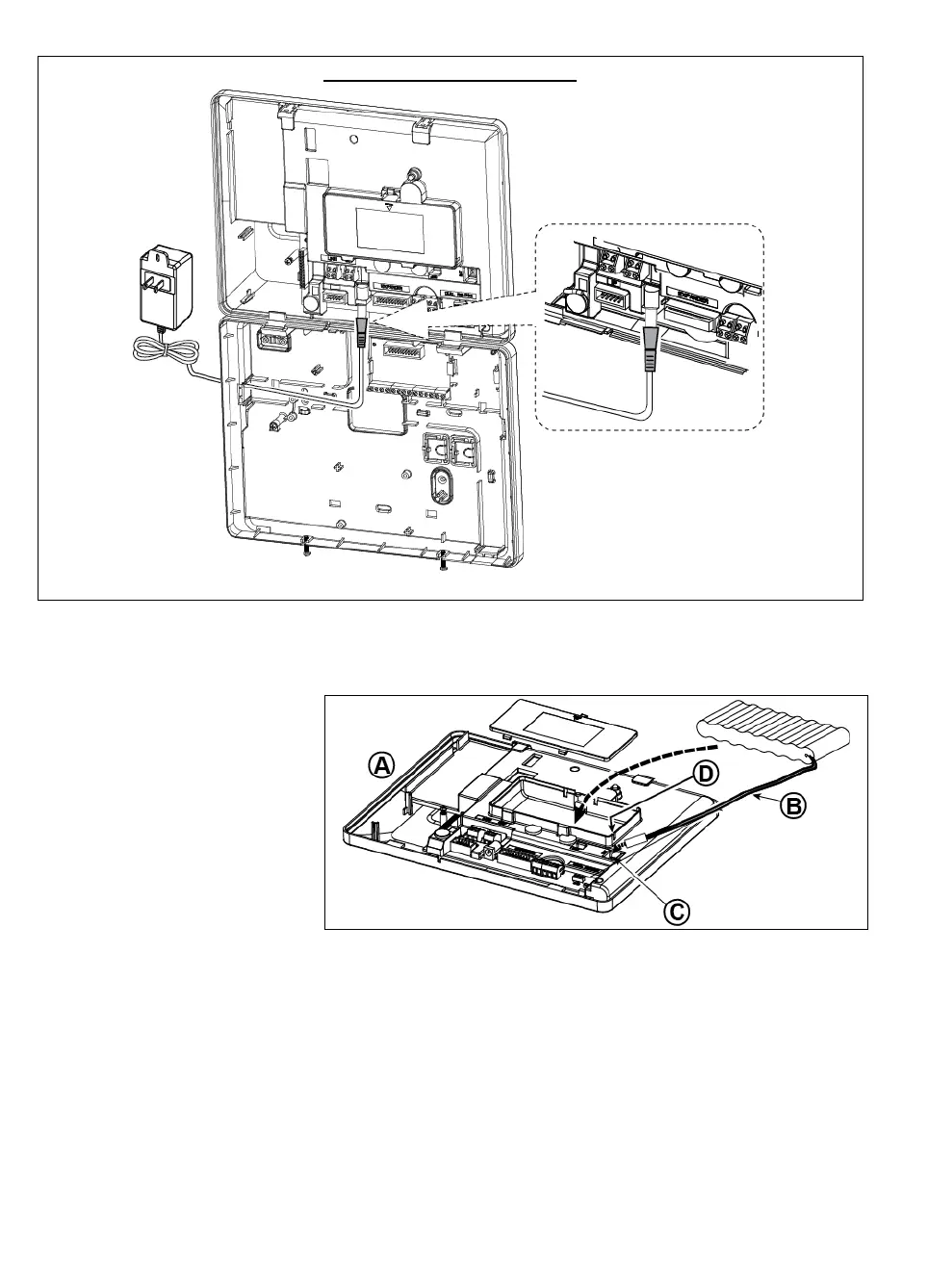

Figure 3.9b – External Power Connection
3.9.1 Battery Insertion
Open battery compartment cover.
Insert one 6-battery pack or 8-battery
pack and connect its connector as
shown in Figure 3.8c.
A. Front unit
B. Battery cable
C. Battery cable connector
D. Slot for battery cable
Figure 3.9c – Battery Insertion
3.9.2 Connect AC Power to the Unit
Connect power to the WP8033 to mains power outlet (see Figures 3.8a and 3.8b).
Disregard any “trouble” indications pertaining to lack of battery or lack of telephone line connection.
