D-306048 WP8033 Installer's Guide 9

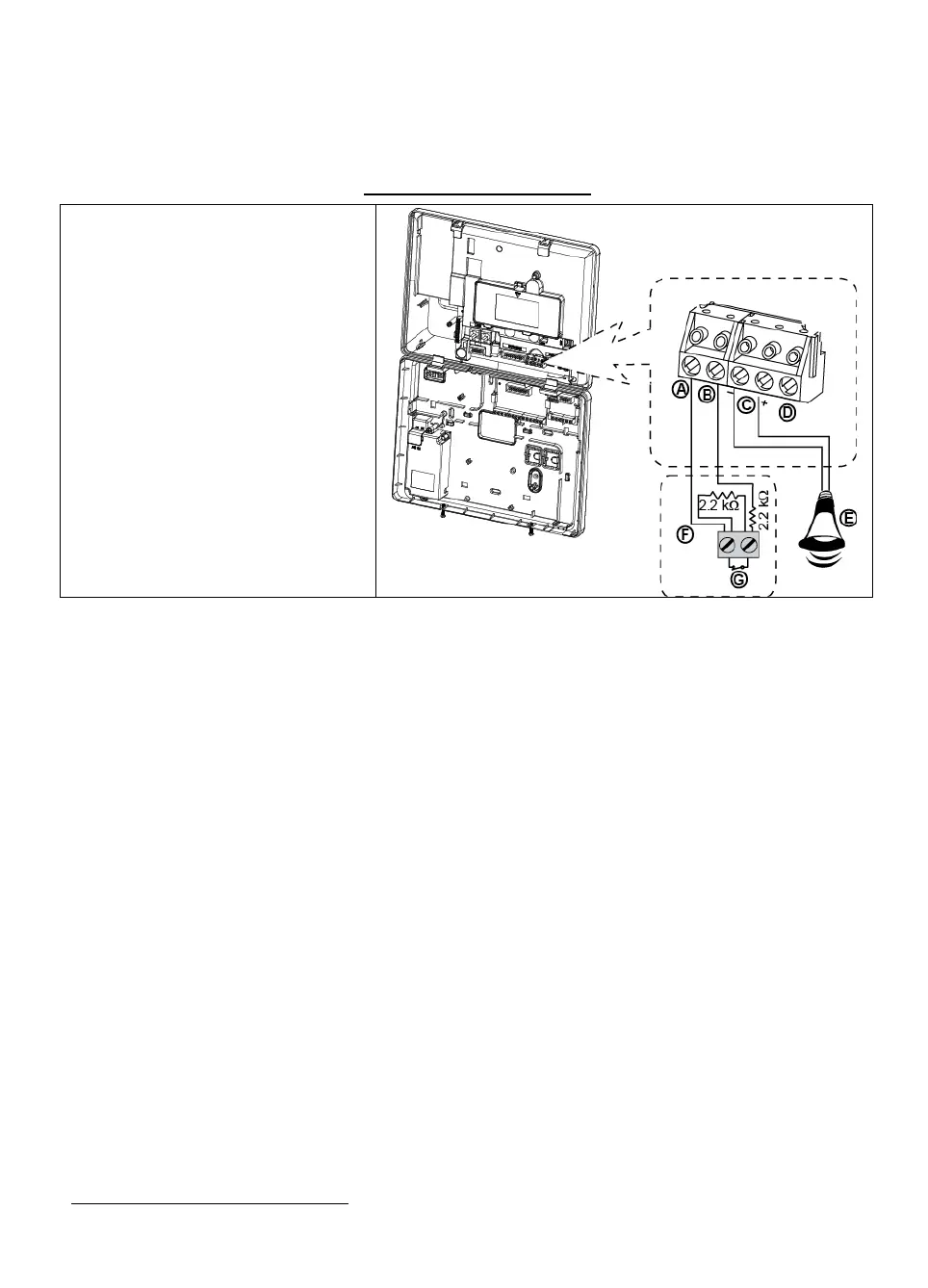

3.4 Connecting Wired Zone and Siren (detail "B" in Figure 3.1)
If an expander module is not used, one wired zone and one low voltage siren can be connected directly to the front
panel PCB.
WIRED ZONE
*
&SIREN WIRING
A. GND
B. Wired Zone
C. Siren
D. For future use
E. Site external siren MG electronics
MG441PDS or equivalent 6-12VDC,
150 mA Max
F. Magnetic contact or any other contact
(not a detector)
G. Alarm N.C.
Figure 3.4 – Wired Zone and Siren Wiring
*
Wired zones can be enrolled in any zone in the WP8033- G2 control panel from 01 to 64
