D-306048 WP8033 Installer's Guide 7
3. WP8033 INSTALLATION
Required tool: Philips screwdriver #2.
WP8033 mounting process is shown in Figures 3.1 - 3.10.

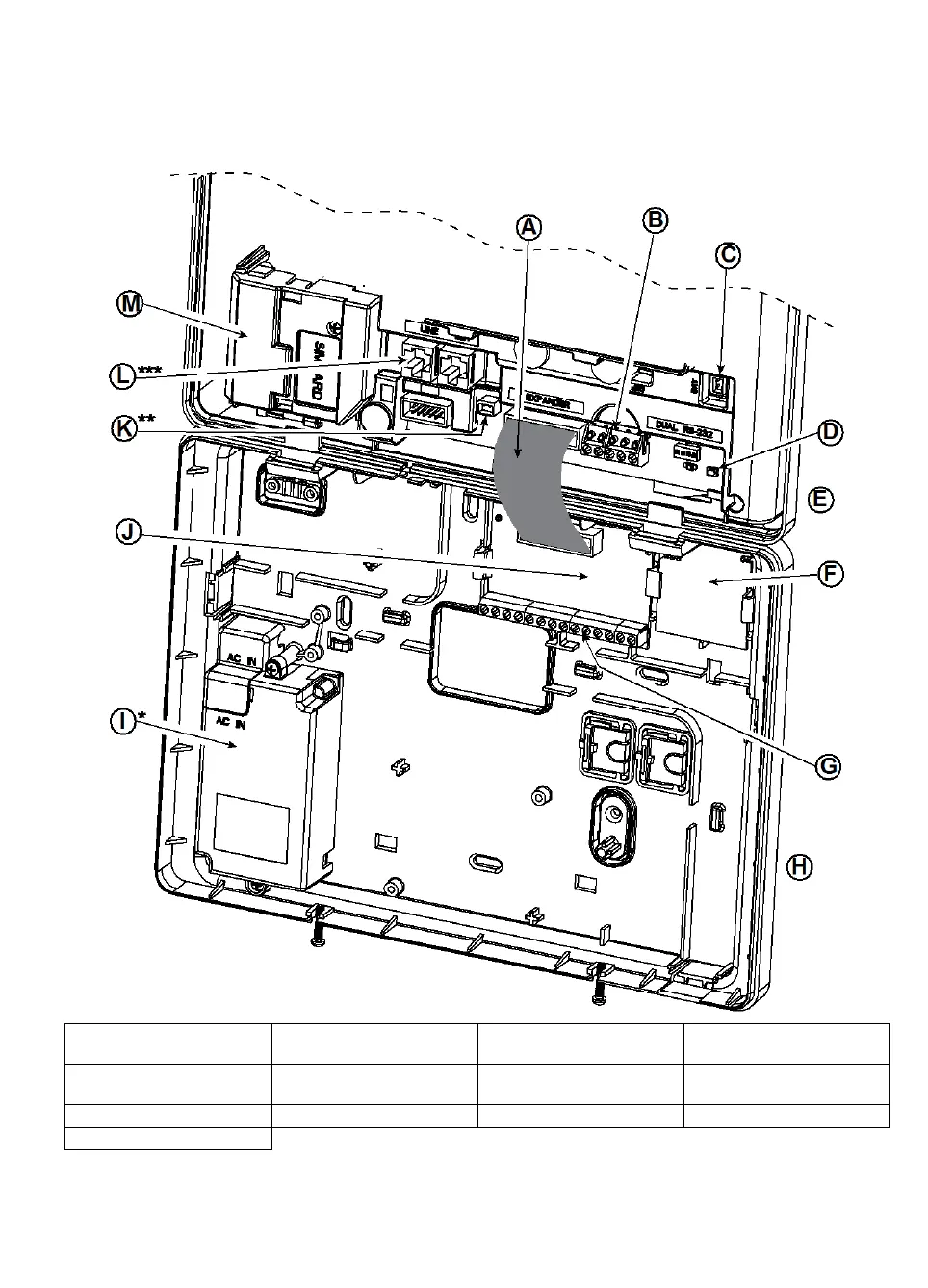

3.1 WP8033 Wiring Diagram
A. Expander Module Flat
Cable
B. Wired Zone / Special
Siren Terminal Block
C. Battery Connector
D. ENROLL button
E. Front Unit
F. Output Interface Module
G. Expander Module Wiring
Terminal Blocks
H. Back Unit
I. Power Supply
J. Expander Module
K. Power Connector
L. Phone Wiring Connectors
M. GSM-350
* or External Power Supply Unit
** or External Power Connector
*** or Terminal Block in North American Panels
Figure 3.1 – WP8033 Wiring Diagram
