DSE 8610 MKII User Manual

Specification
057-254 ISSUE: 2 Page 34 of 188

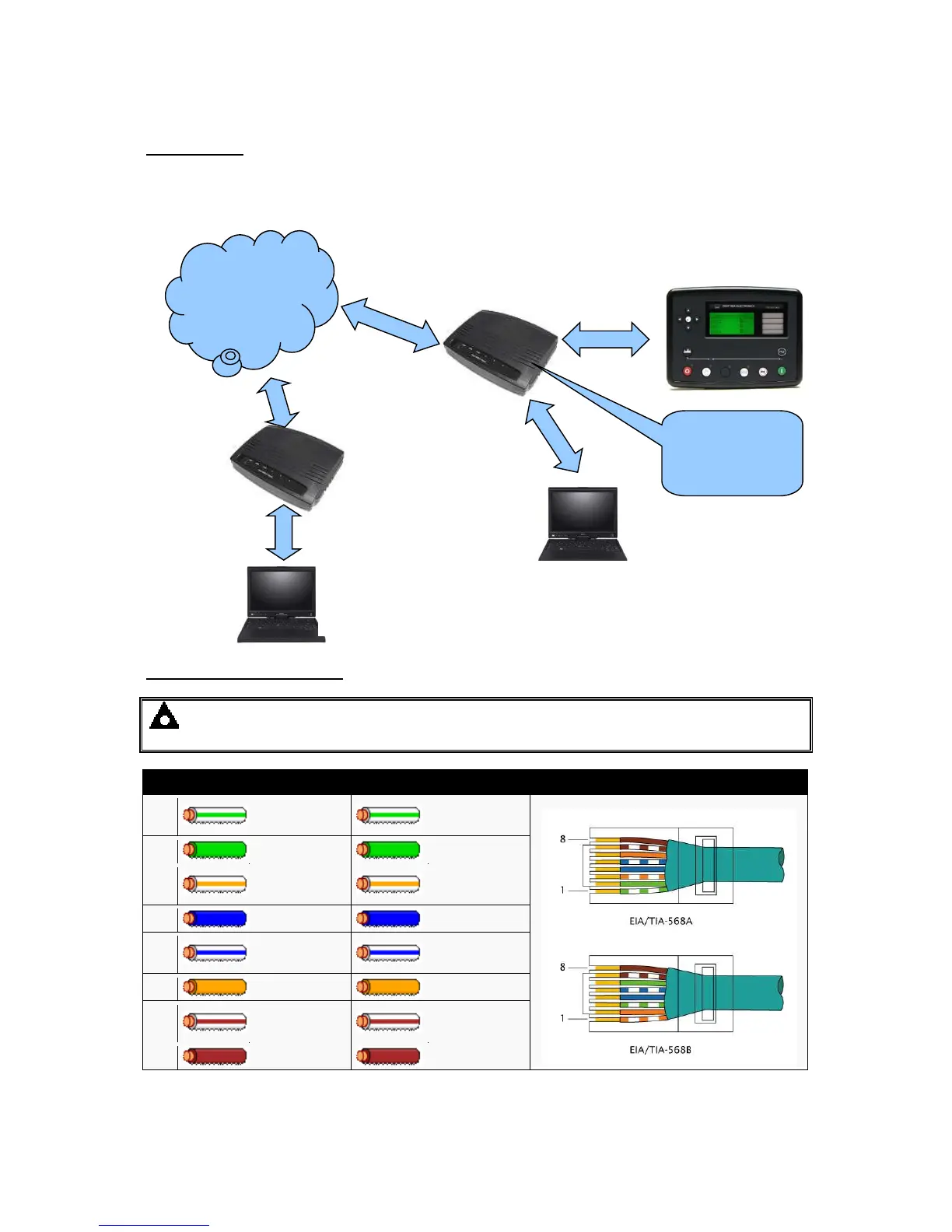

2.10.4.4 CONNECTION TO THE INTERNET
Requirements
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• Working Internet connection (ADSL or DSL recommended)
Ethernet Cable Wiring Detail
NOTE: DSE stock 2 m (6.5 feet) Ethernet Cable, DSE Part Number: 016-137. Alternatively
they can be purchased from any PC or IT store.
Pin
Connection 1
(T568A)
Connection 2 (T568A)
1
white/green
stripe
white/green
stripe
2 green solid green solid
3
white/orange
stripe
white/orange
stripe
4
blue solid
blue solid
5
white/blue
stripe
white/blue
stripe
6 orange solid orange solid
7
white/brown
stripe
white/brown
stripe
8 brown solid brown solid
DSL or ADSL
Router
Optional ‘Local’
Site PC
INTERNET
PC Remote From
Generator Site
The DSL/ADSL
router routes
external network
traffic
Ethernet
Cable
DSL or ADSL
Router

DSE 8610 MKII Specifications

General

Generator & Mains Frequency	3.5 Hz to 75 Hz
Display	LCD with backlight
Communication	RS232, RS485, Ethernet, USB
Inputs	4 analogue inputs
Outputs	Configurable x 8
Power Supply	8 to 35 V DC
Operating Temperature	+70°C
Dimensions	240mm x 181mm x 42mm
Magnetic Pick-up Voltage Range	0.5 V
Magnetic Pick-up Frequency	10, 000 Hz (max)
Protection Rating	IP65 (Front only)
