2.10.9.1 DSENET
®
USED FOR MODBUS ENGINE CONNECTION
NOTE: For further details of module configuration, refer to DSE Publication: 057-238
DSE8610 MKII Configuration Suite PC Software Manual.
As DSENet
®
utilises an RS485 hardware interface, this port can be configured for connection to
Cummins MODBUS engines (Engines fitted with Cummins GCS (G-Drive Control System)).
This leaves the RS485 interface free for connection to remote monitoring equipment (i.e. Building
Management System, PLC or PC RS485 port).
While this is a very useful feature in some applications, the obvious drawback is that the DSENet
®
interface is no longer available for connection to expansion devices.

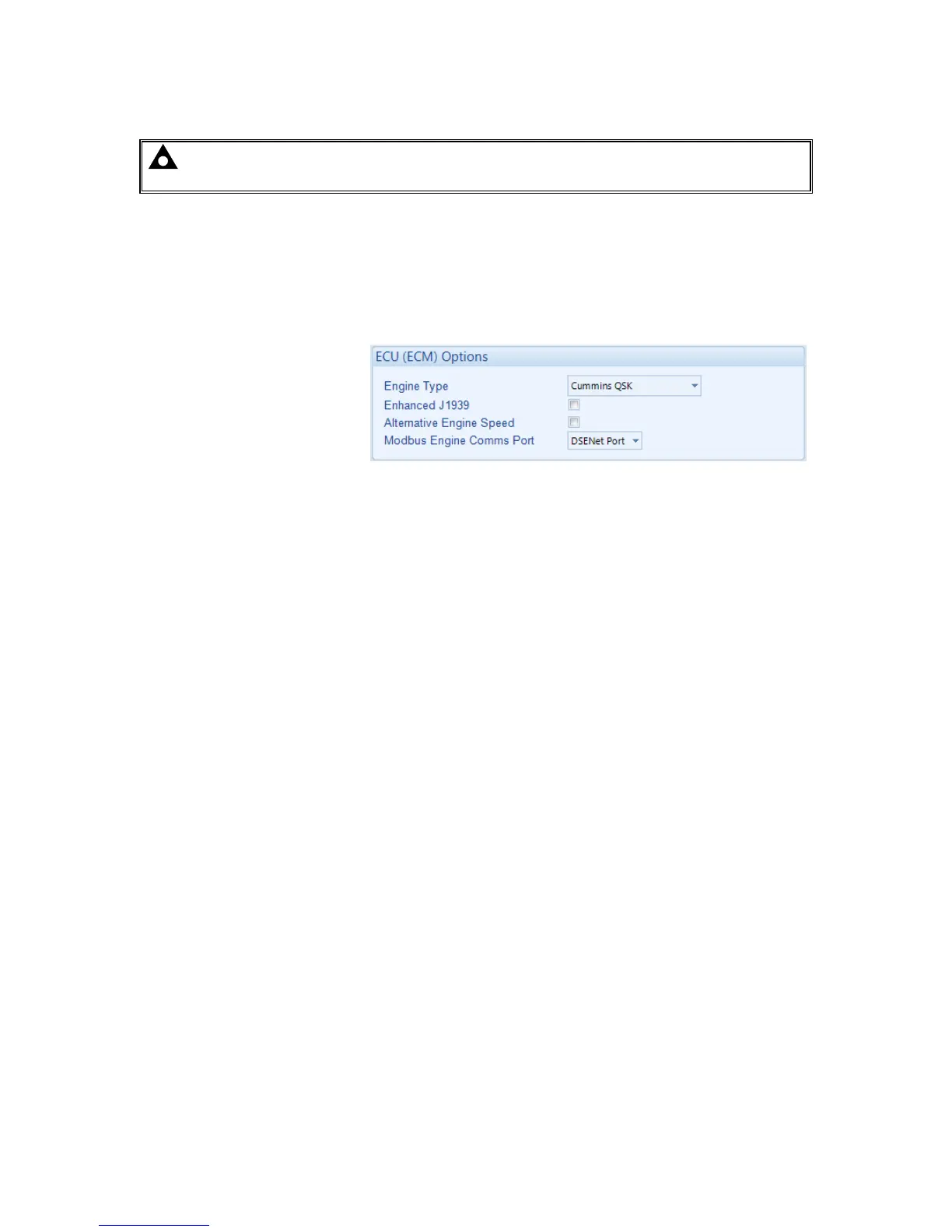

Example of configuring the
DSENet
®
for connection to
Cummins QSK GCS using the
DSE Configuration Suite
Software:

DSE 8610 MKII Specifications

General

Generator & Mains Frequency	3.5 Hz to 75 Hz
Display	LCD with backlight
Communication	RS232, RS485, Ethernet, USB
Inputs	4 analogue inputs
Outputs	Configurable x 8
Power Supply	8 to 35 V DC
Operating Temperature	+70°C
Dimensions	240mm x 181mm x 42mm
Magnetic Pick-up Voltage Range	0.5 V
Magnetic Pick-up Frequency	10, 000 Hz (max)
Protection Rating	IP65 (Front only)
