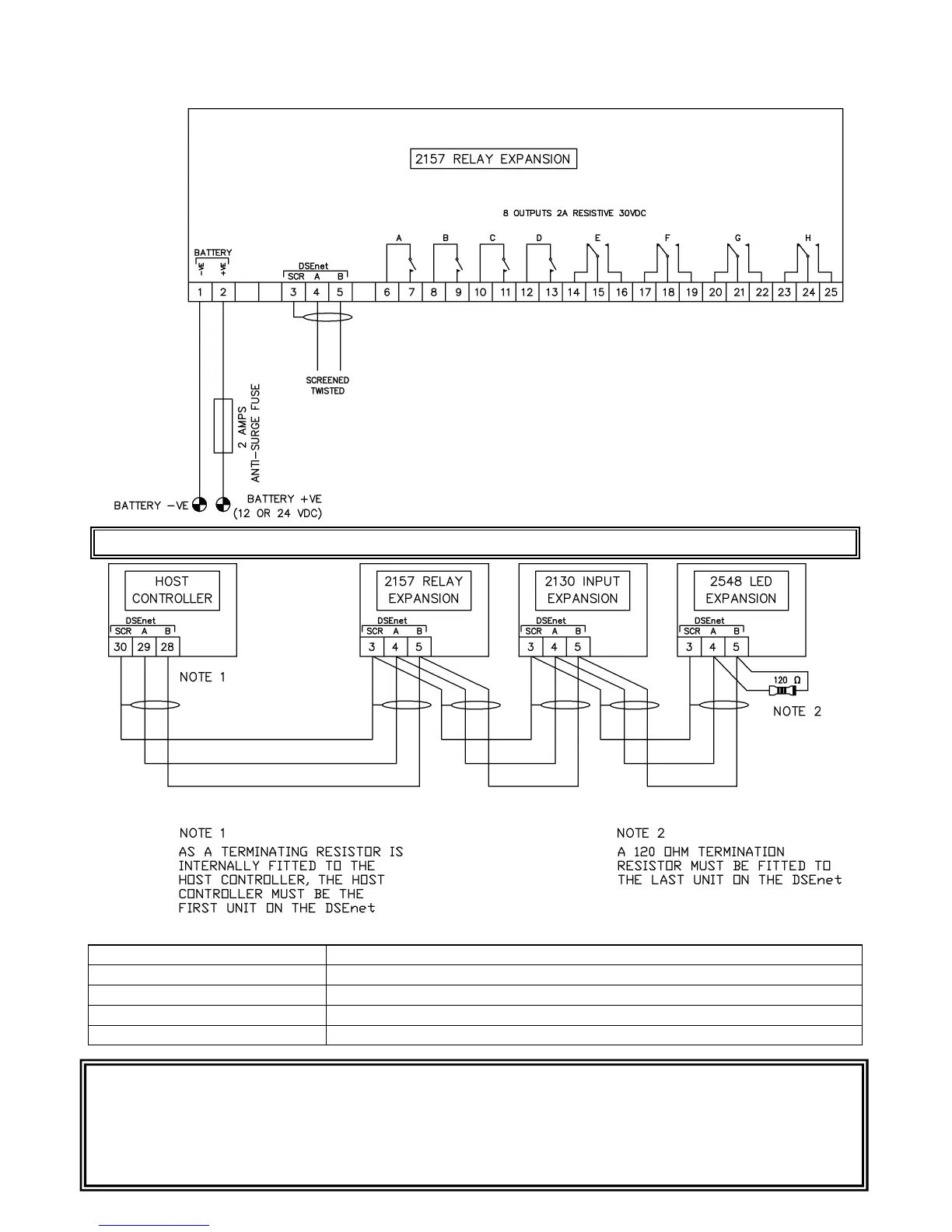

Typical wiring diagrams
NOTE : Configuration of the outputs is performed in the host controller.
Dimensions
Overall size 164.6mm x 76.4mm x 48.9mm (6.48” x 3.01” x 1.93”)
Mounting type DIN rail or chassis mounting
Din rail type EN 50022 35mm type only
Mounting holes M4 clearance
Mounting hole centres 152.37mm x 64.50mm (6.00” x 2.54”)
