DSE2157 relay output expansion module
6
057-083 Issue 1 DSE2157 relay output expansion operator manual
3.3 OUTPUTS
Relay rating 2A DC rated (Max 30V)

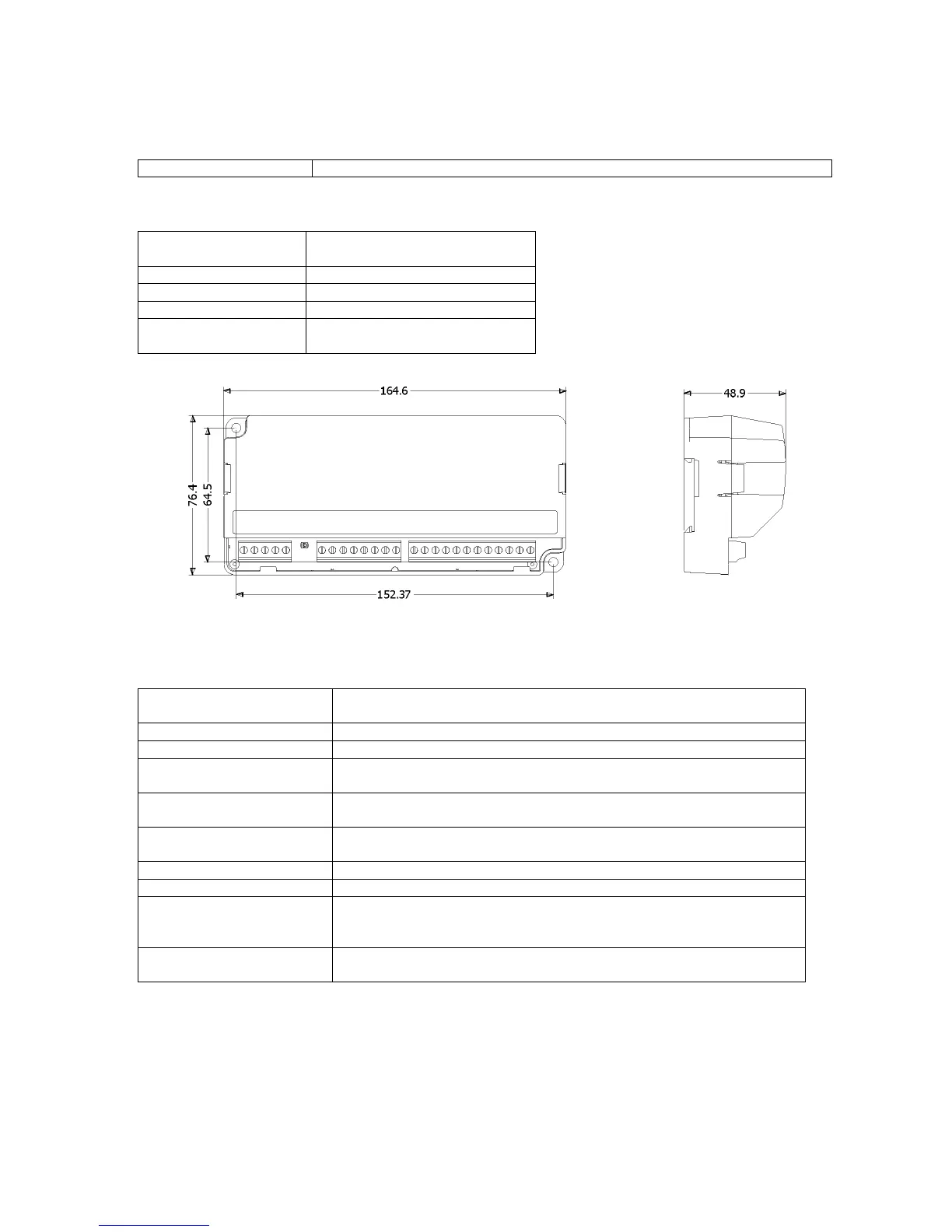

3.4 DIMENSIONS
Overall size 164.6mm x 76.4mm x 48.9mm
(6.48” x 3.01” x 1.93”)
Mounting type DIN rail or chassis mounting
Din rail type EN 50022 35mm type only
Mounting holes M4 clearance
Mounting hole centres 152.37mm x 64.50mm
(6.00” x 2.54”)
Dimensions in mm
3.5 APPLICABLE STANDARDS
BS
4884
-
1
:1992
This document conforms to BS4884-1 1992 Specification for
presentation of essential information.
BS
4884
-
2:1993
This document conforms to BS4884-2 1993 Guide to content
BS
4884
-
3:1993
This document conforms to BS4884-3 1993 Guide to presentation
BS EN 60068
-
2
-
1
(Minimum temperature)
-30°C (-22°F)
BS EN 60068
-
2
-
2
(Maximum temperature)
+70°C (158°F)
BS EN 60950
Safety of information technology equipment, including electrical
business equipment
BS EN 61000
-
6
-
2
EMC Generic Immunity Standard (Industrial)
BS EN 61000
-
6
-
4
EMC Generic Emission Standard (Industrial)
BS EN 60529
(Degrees of protection
provided by enclosures)
IP21
UL508
NEMA rating
enclosure type 1 (indoor use only)
In line with our policy of continual development, Deep Sea Electronics, reserve the right to change specification without notice.
