Installation – Typical Wiring Diagrams

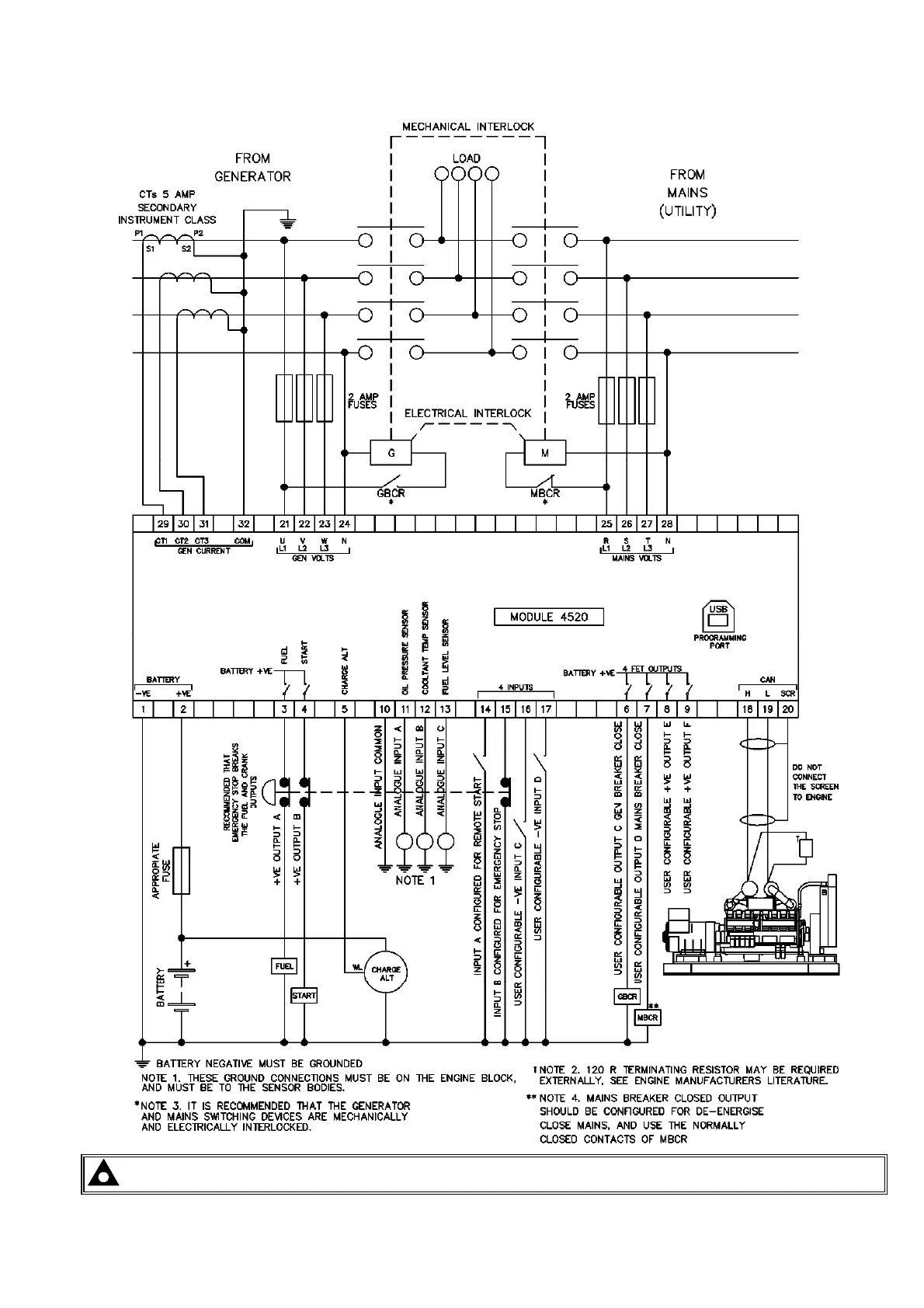

4.2.2 DSE4520 TYPICAL WIRING DIAGRAM (3 PHASE 4 WIRE)

NOTE: Terminals 29-32 are not fitted on the DSE45xx-01 variant.
