Connector Pinouts and LEDs
■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
DS1104 Hardware Installation and Configuration March 2004
I■■■■■■■■■■■■■
94
■■■■■■■■■■■■■■■
Slave I/O PWM Connector (CP18)
The slave I/O PWM connector (CP18) is a 37-pin, female Sub-D
connector located on the front of the connector panel.

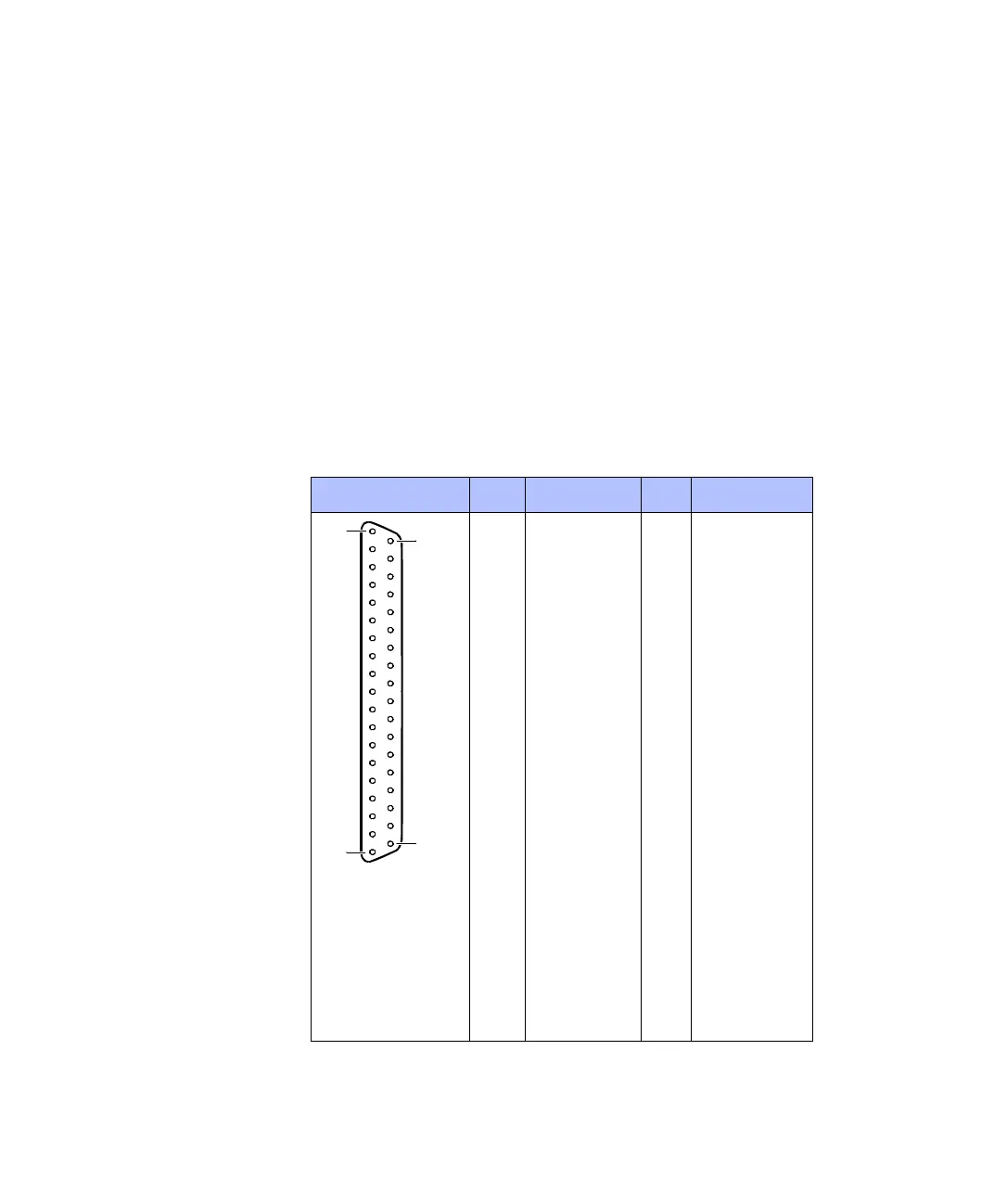

Pinout Because the pin numbering used for Sub-D connectors is not
standardized, the following figure shows the numbering scheme used
(front view).
C
Do not rely on the numbers written on Sub-D connectors.
Connector (CP18) Pin Signal Pin Signal
1GND
2 SCAP1 20 GND
3 SCAP3 21 SCAP2
4 GND 22 SCAP4
5 ST2PWM 23 ST1PWM
6 GND 24 ST3PWM
7SPWM1 25GND
8 SPWM3 26 SPWM2
9 SPWM5 27 SPWM4
10 SPWM7 28 SPWM6
11 SPWM9 29 SPWM8
12 GND 30 GND
13 GND 31 GND
14 GND 32 GND
15 GND 33 GND
16 SSIMO 34 SSOMI
17 SCLK 35 SSTE
18 VCC (+5 V) 36 GND
19 VCC (+5 V) 37 GND
1
37
20
19
