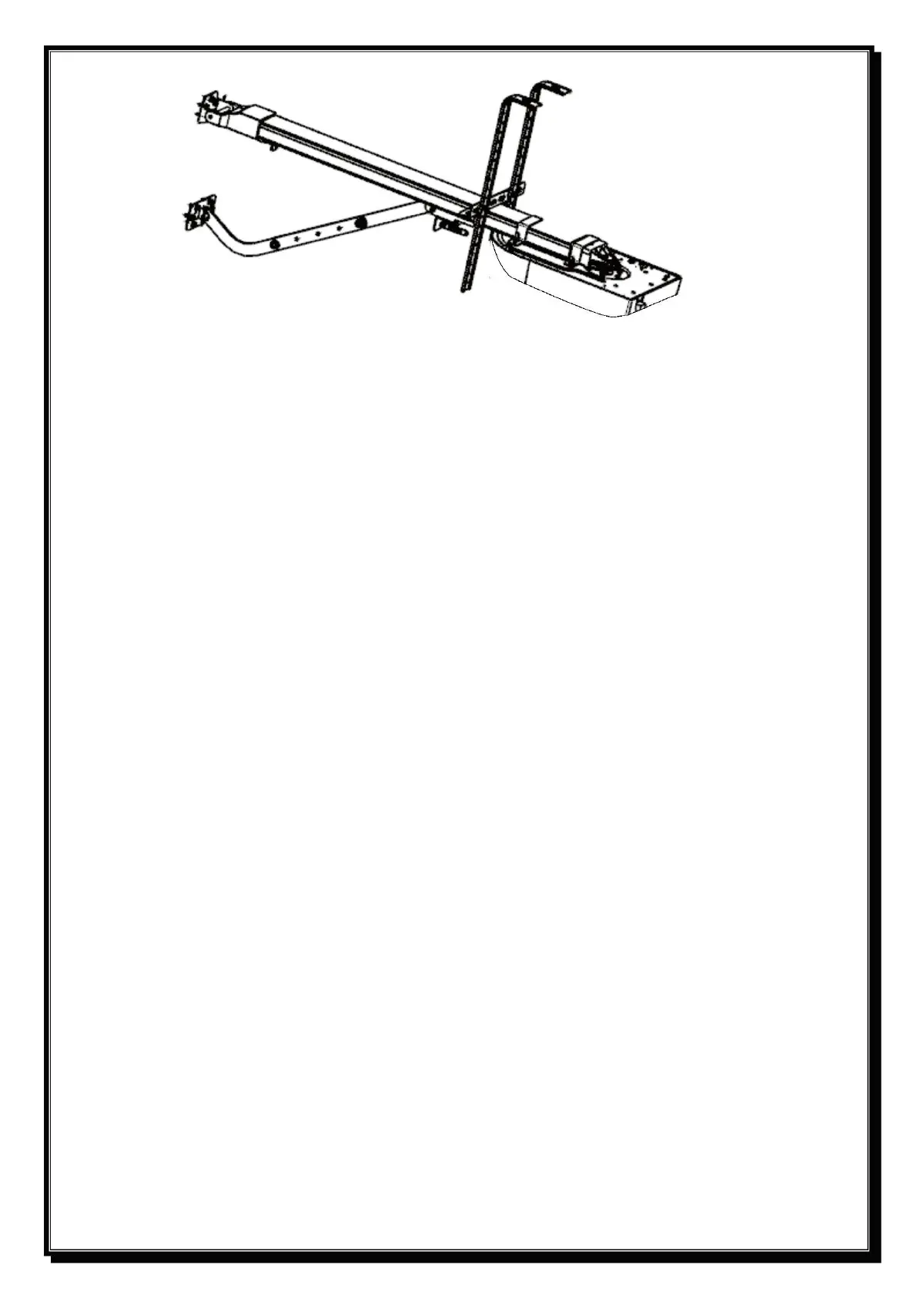

1. Fixing the wall bracket. Fixing the wall bracket to the wall 20-150mm over the shaft or intermediate bracket
(depending on the actual installation space).
2. Fixing the steel track to the wall bracket with a cotter pin.
3. Sleeve the motor shaft adapter to the motor shaft according to Fig. 6.
Notice: the flanged end facing down.
4. Fixing garage door opener to the track by U bracket A. It’s enough for a 2 Nm fastening force.
5. Fixing the iron angle A to the wings of the garage door opener base plate, hanging the track to the ceiling by iron
angle A.
Notice: Make sure the connection of iron angle A and the ceiling is firm enough. Make sure the track is horizontal
and vertical to the shaft.
6. Fixing the door bracket on the door panel, fixing the straight arm and bent arm, and fixing the traveller
cord.
7. Release the traveller, and try to open and close the door by hand. Make sure there is no resistance between
the door panel and the track.
8. Connect the opener with power and adjust the operation.
Notice: Make sure the opener’s voltage is in accordance with the local voltage. Connect the opener to a properly
