DTS 1000 User Manual

Fig.4
Fig.5

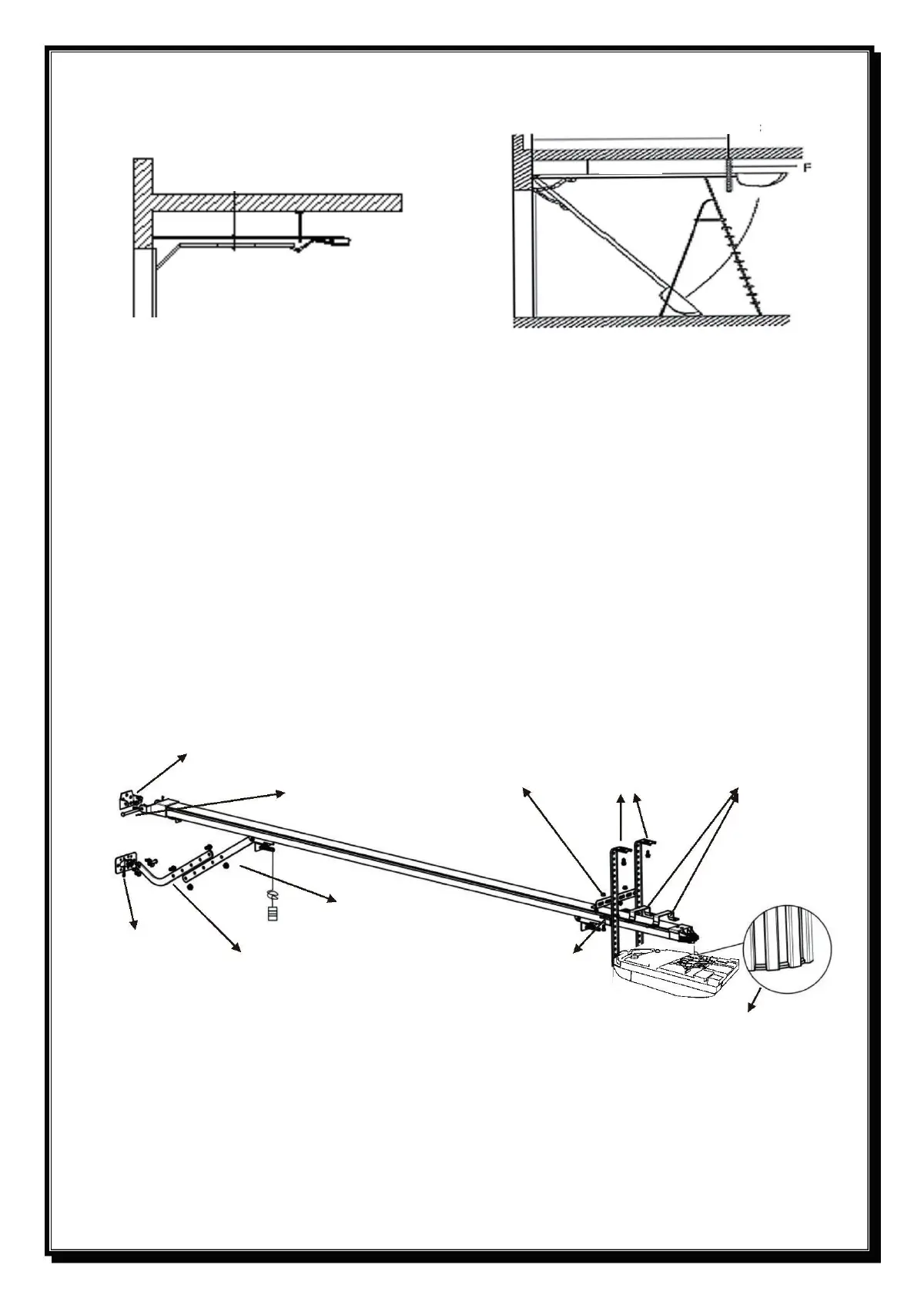

Maintain a minimum gap of 30mm from the top panel’s maximum height (Fig.4).
Make sure the track is horizontal and vertical to the shaft. Make sure the connection of hanging bracket F and
The ceiling is firm enough (Fig. 5).
Warning: Make sure the opener is affixed to noggins in the ceiling and not to the plasterboard. Failure to have a
safe and secure fixing will lead to the opener falling, and causing serious personal and /or property damage.
Installation (aluminum track)
Wall bracket
Track bracket
Iron angle A
U bracket A
Cotter pin
Straight arm
Door bracket
Bent arm
U bracket B
Motor shaft adapter
Fig.6
5
30 mm
2800mm
400mm
