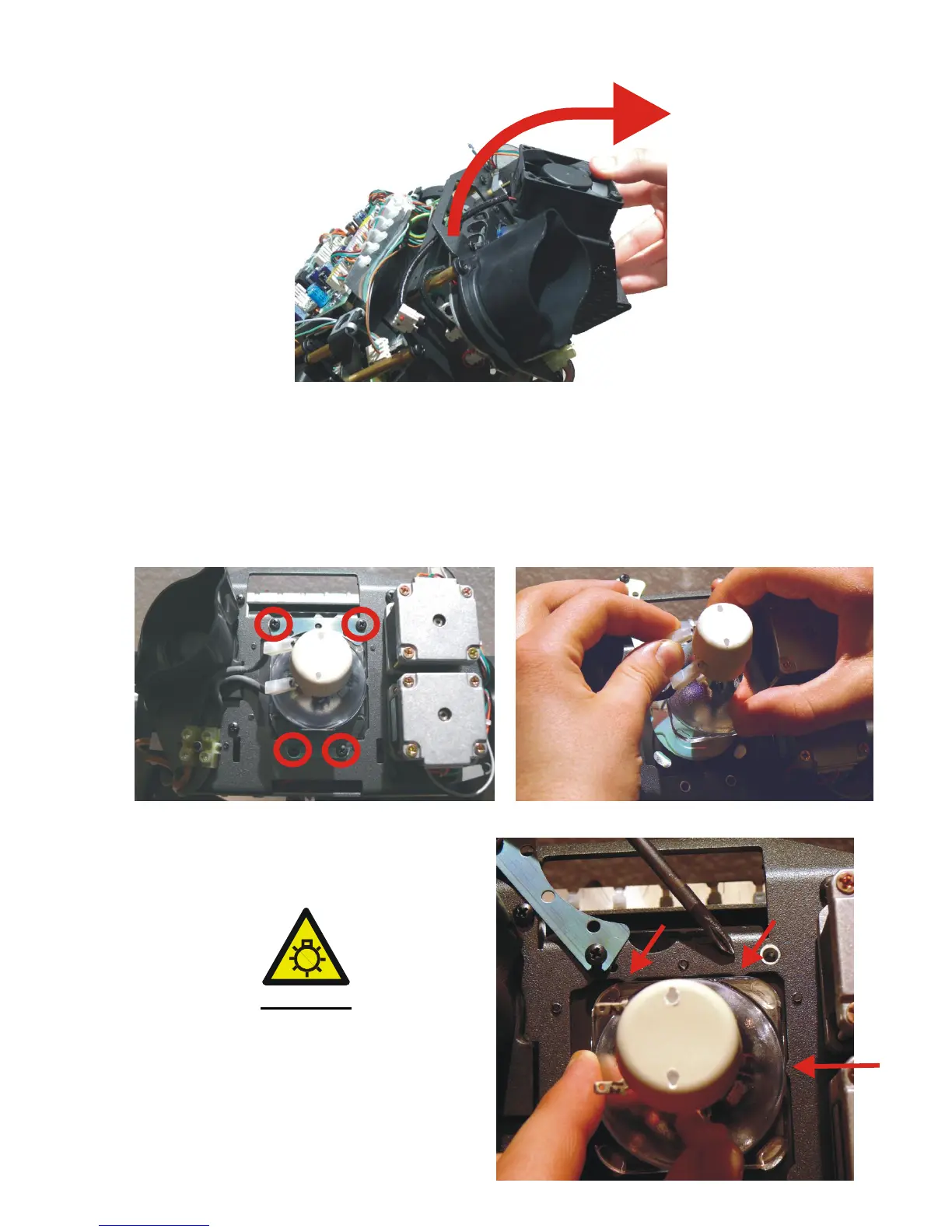

Photo 6
4) Loose the four screws which fix the lamp (photo 7), unplug the two fast-on cable
connectors (photo 8) and remove the old lamp.
5) Put in place the new lamp and push it toward the three mechanical ends D, E, F
(photo 9) on the lamp support; this let you have the lamp properly aligned on the
optical system.
Photo 7 Photo 8
WARNING:
Never look directly at the lamp when it‟s lit.
Discharge lamps emits UV rays;
radiation from this lamp can cause
damage to eyes and skin.
Photo 9
