7- MOUNTING / REPLACING THE LAMP AND LAMP ALIGNMENT
Warning: Switch off the unit before replacing the lamp.
MSD Platinum 5R
Power 189W
Luminous flux 7950 lm
Colour temperature 8.000°K
Type of connection: PINS 2,8 x 0,8 mm
Rated life 2000 hours

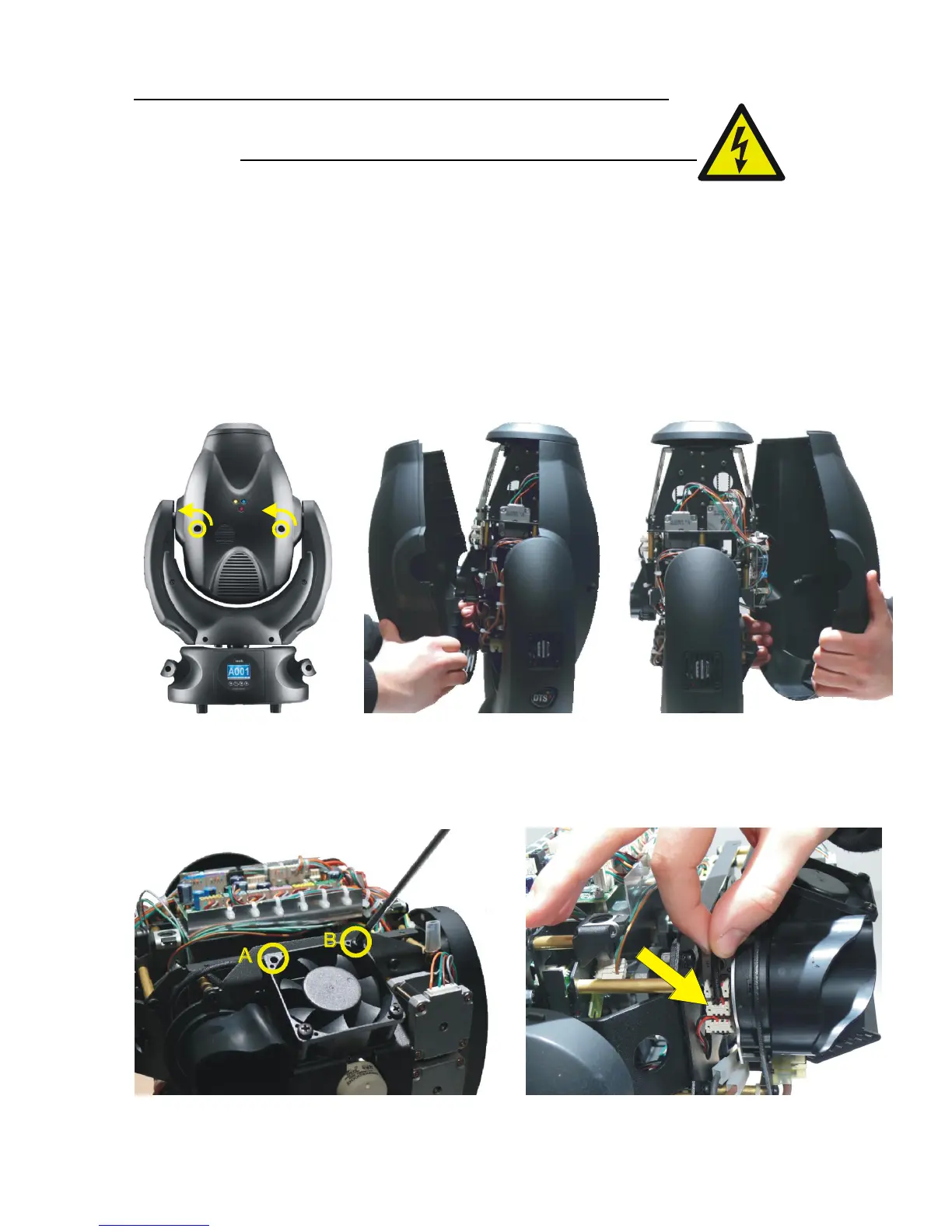

1) Loosen the 2 “¼ turn” screws which fix the head covers (photo 1) .
2) Once loosen the screws, simply lift the covers to access the internal components
(photo 2 and 3).
Photo 1 Photo 2 Photo 3
3) Using a Philips screwdriver, loose the 2 screws A, B, (photo 4), unplug the fan
connector (photo 5) and remove the lamp fan assembly (photo 6).
Photo 4 Photo 5
