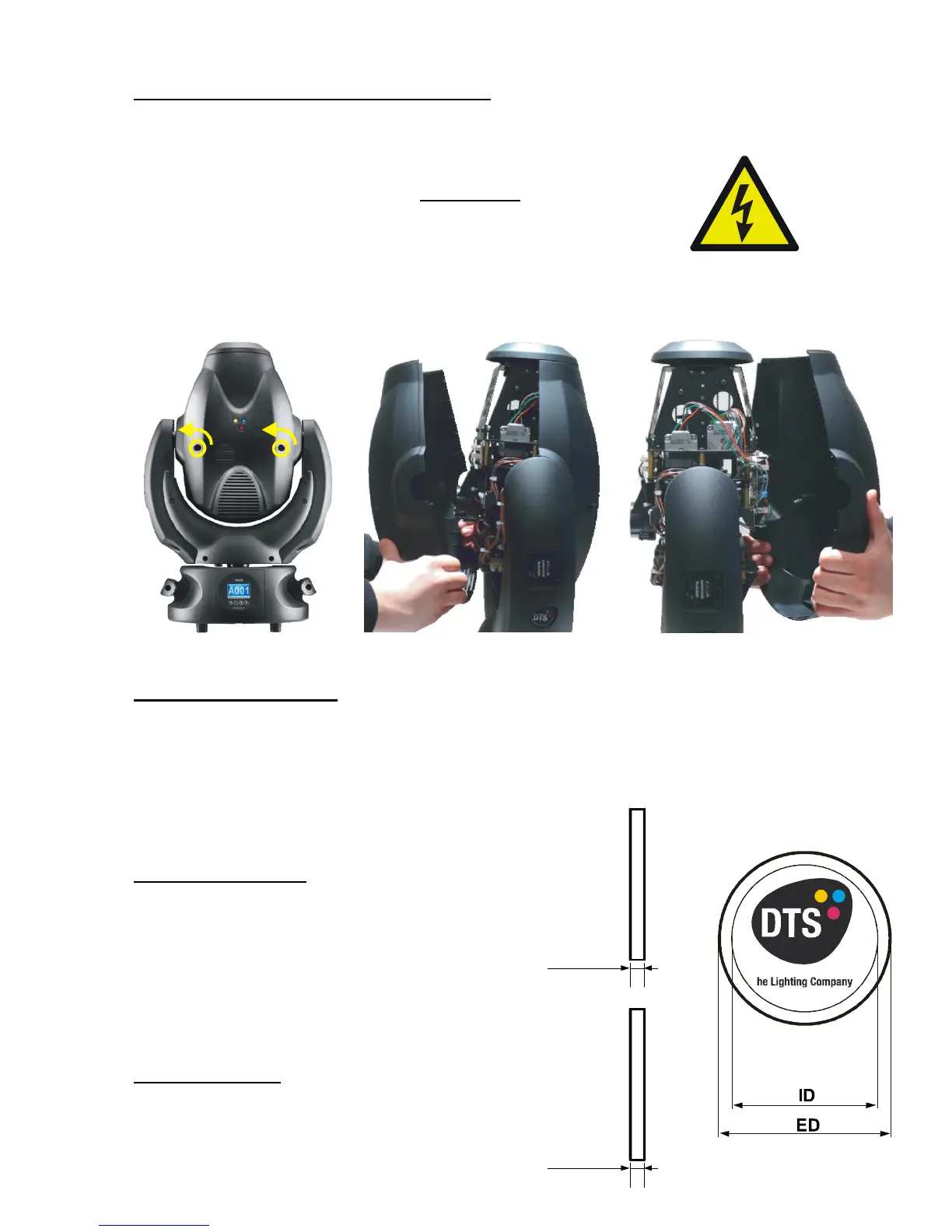

18- OPENING THE PROJECTOR HOUSING
It is possible to inspect the inside of the projector by removing the cover as indicated
below.
ATTENTION
REMOVE MAINS POWER PRIOR TO ACCESSING THE
PROJECTOR‟S INTERNAL COMPONENTS.
1) Loosen the 2 screws which fix the head covers (photo 1) .
2) Once unscrewed, simply lift the covers to access the internal components (photo 2
and 3).
Photo 1 Photo 2 Photo 3
19- REPLACING GOBOS
JACK uses a mechanical system which allows the fixture's gobos to be removed
without the use of special tools.
Replacement gobos should be made of either heat resistant glass or metal.
An ever-increasing range of gobos is available from your D.T.S. sales network.
Gobo dimensions are as follows:
Rotating gobo wheel
ø external (ED) = 14.0 mm
ø of image with defined edge (ID) = 6.0 mm
thickness = from 0.2 to 3 mm (see catalogue)
Max thickness 3 mm
Fixed gobo wheel
ø external (ED) = 14.0 mm
ø of image with defined edge (ID) = 6.5 mm
thickness = from 0.2 to 1.2 mm (see catalogue)
Max thickness 1.2 mm
