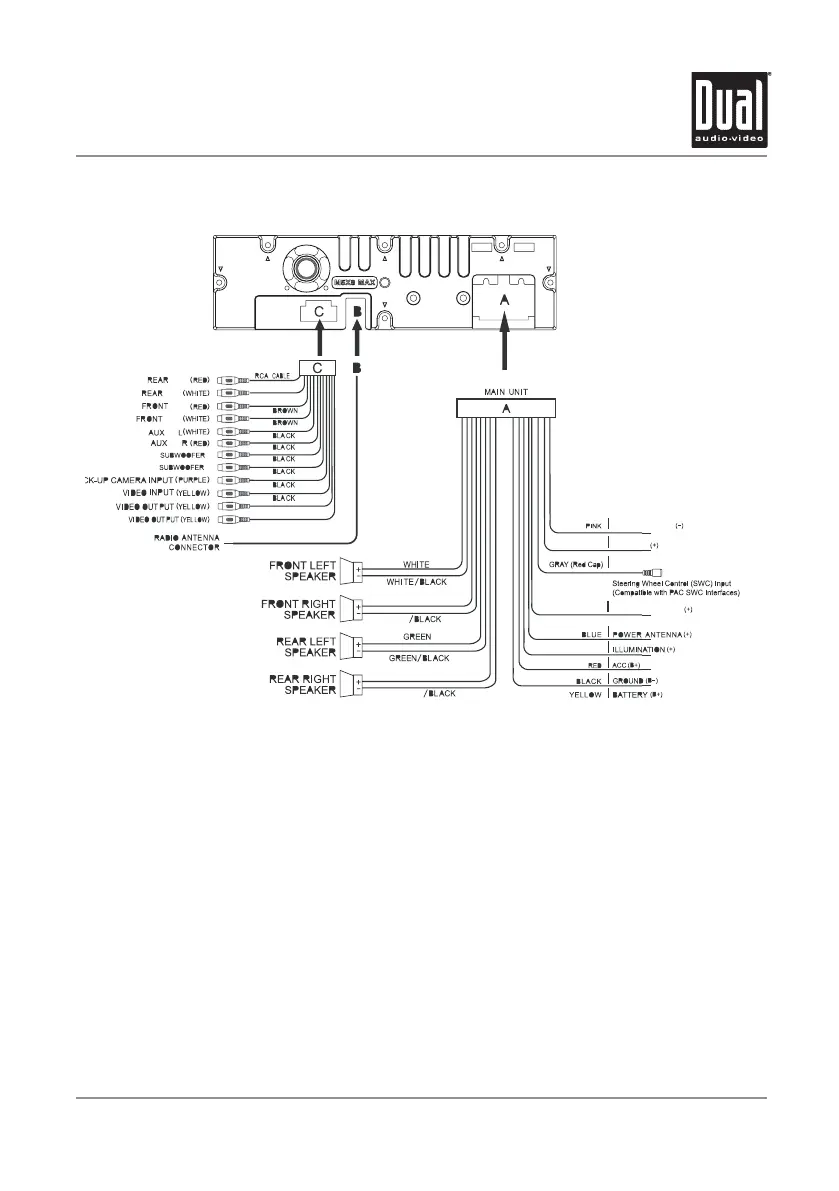

Wiring Diagram - Inputs/Outputs
DV715B INSTALLATION
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could
cause damage. The unit uses (1) 10 amp ATC mini style fuse located on the power connector.
Wiring Notes:
Subwoofer output
The Subwoofer preamp audio output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
1
2
PARKING BRAKE
REVERSE
SWC - 3.5mm JACK
REMOTE
RCH
RCH
LCH
LCH
IN
IN
GRAY
GRAY
GRAY
VIOLET
VIOLET
GRAY
GRAY
GRAY
TURN-ON
ORANGE
BLUE/BLACK
ORANGE/BLACK
