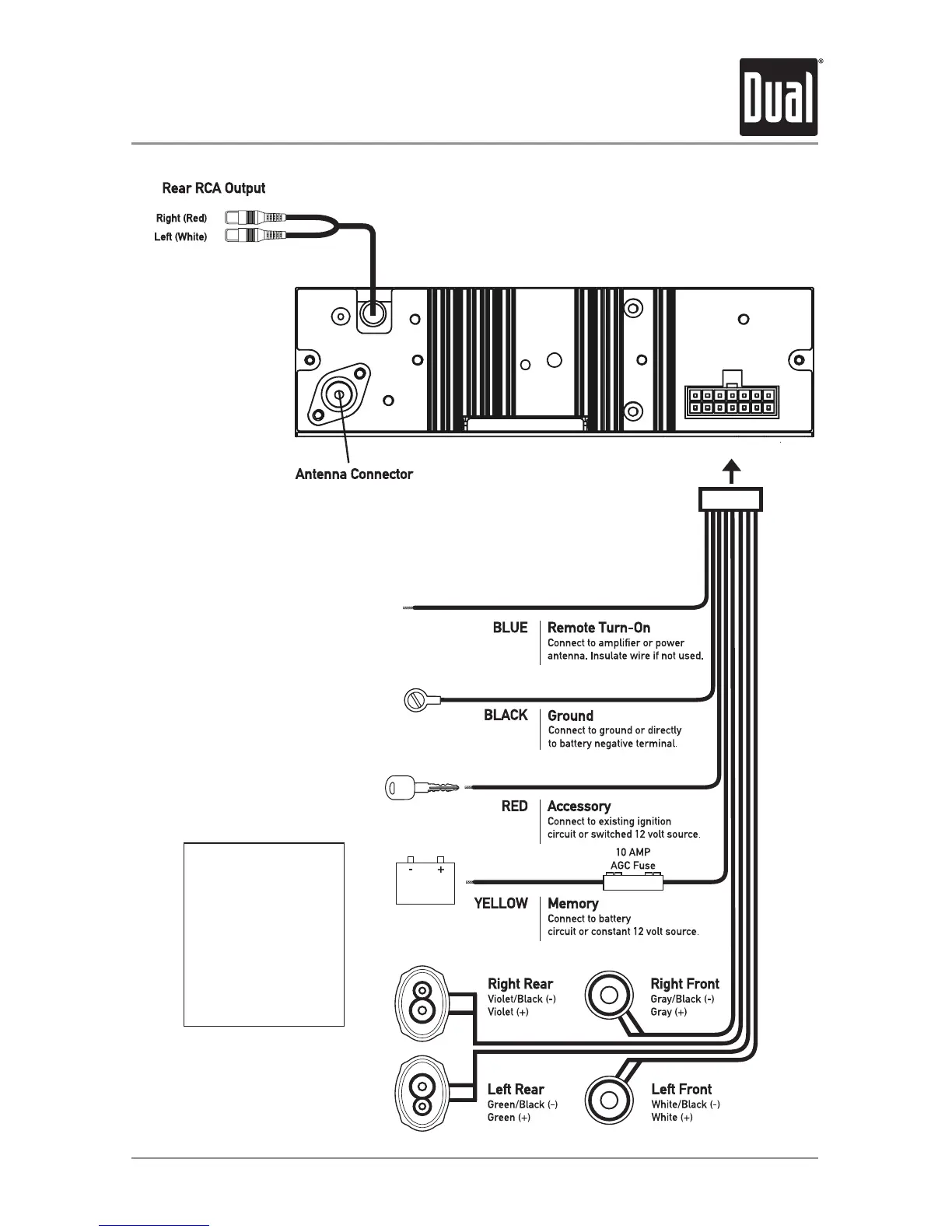

Wiring Diagram
FUSE
Whenreplacingthefuse,
makesurenewfuseisthe
correcttypeandamperage.
Using an incorrect fuse
coulddamagetheradio.The
MR100usesone10amp
AGCfuselocatedin-line.
MR100 INSTALLATION
