Dual MXD13 Series User Manual

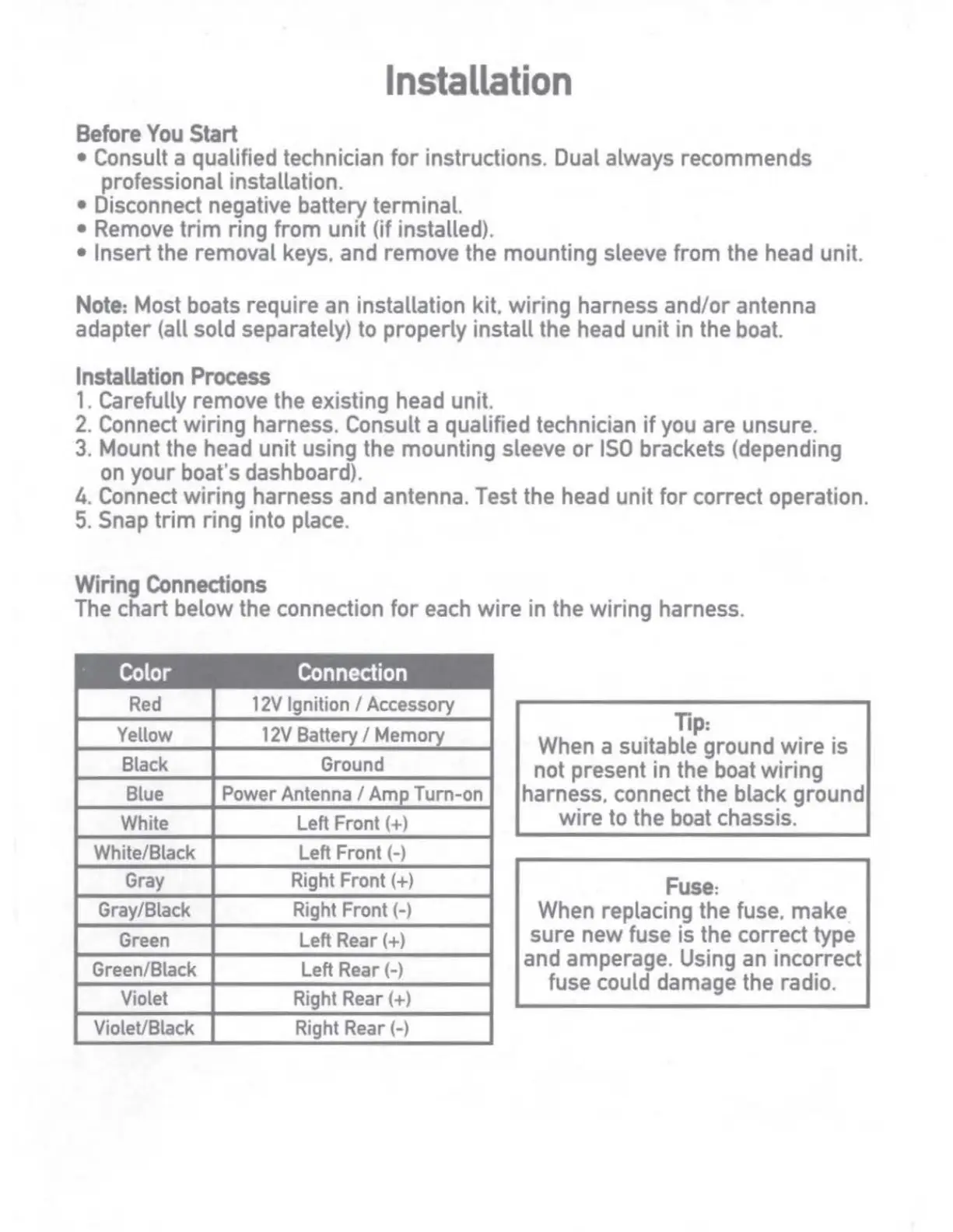

Installation
Before You Start
• Consult a qualified technician for instructions. Dual always recommends
professional installation.
• Disconnect negative battery terminal.
• Remove trim ring from unit (if installed).
• Insert the removal keys. and remove the mounting sleeve from the head unit.
Note: Most boats require an installation kit. wiring harness and/ or antenna
adapter (all sold separately) to properly install the head unit in the boat.
Installation Process
1. Carefully remove the existing head unit.
2. Connect wiring harness. Consult a qualified technician if you are unsure.
3. Mount the head unit using the mounting sleeve or ISO brackets (depending
on your boat's dashboard).
4. Connect wiring harness and antenna. Test the head unit for correct operation.
5. Snap trim ring into place.
Wiring Connections
The chart below the connection for each wire in the wiring harness.
Color
Red
Yellow
Black
Blue
White
White/Black
Gray
Gray/Black
Green
Green/Black
Violet
Viole t/ Black
Connection
12V Ignition / Accessory
12V Battery / Memory
Ground
Power Antenna / Amp Turn-on
Left Front (+)
Left Front (-)
Right Front (+)
Right Front (-)
Left Rear (+)
Left Rear(- )
Right Rear (+)
Right Rear (-)
Tip:
When a suitable ground wire is
not present in the boat wiring
harness. connect the black ground
wire to the boat chassis.
Fuse:
When replacing the fuse. make
sure new fuse is the correct type
and amperage. Using an incorrect
fuse could damage the radio.
