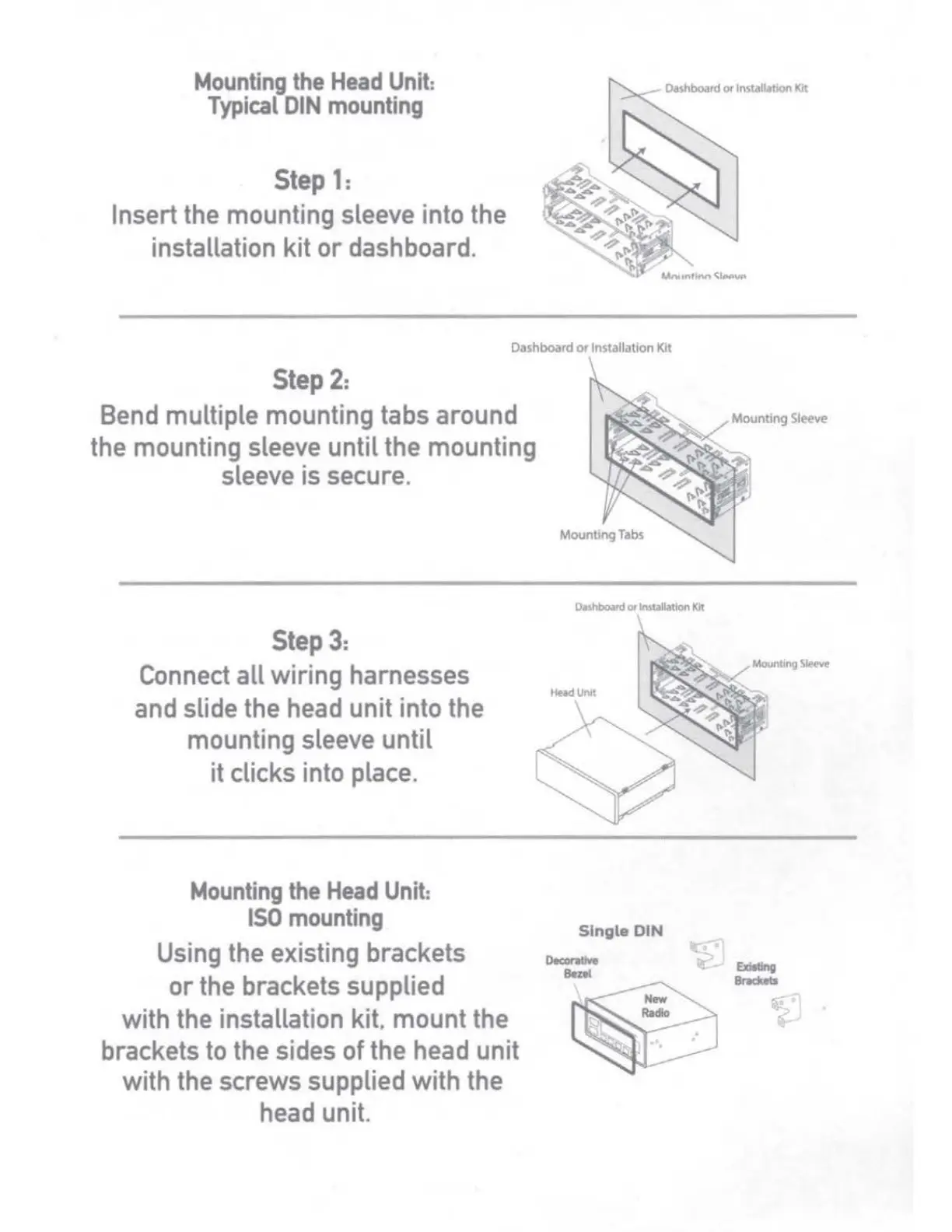

Mounting the Head Unit:
Typical DIN mounting
Step 1:
Insert the mounting sleeve into the
installation kit or dashboard.
- Dashboard or Installation Kit
Dashboard or Installation Kit
Step 2:
Bend multiple mounting tabs around
the mounting sleeve until the mounting
sleeve is secure.
Step 3:
Connect all wiring harnesses
and slide the head unit into the
mounting sleeve until
it clicks into place.
Mounting the Head Unit:
ISO mounting
Using the existing brackets
or the brackets supplied
with the installation kit, mount the
brackets to the sides of the head unit
with the screws supplied with the
head unit.
Mounting Tabs
Dashboard o, Installation Kit
Single DIN
OtcoratiYe
Bezel
~
~j Existing
BrKbts
