Dual X2DMA400 - Wiring Diagram; Replacing Fuse

3
X2DMA400 OPERATION
FUSE
Whenreplacingthefuse,
makesurenewfuseisthe
correcttypeandamperage.
Usinganincorrectfuse
coulddamagetheradio.
TheX2DMA400usesone
10ampATMfuselocated
besidethewiringconnector.

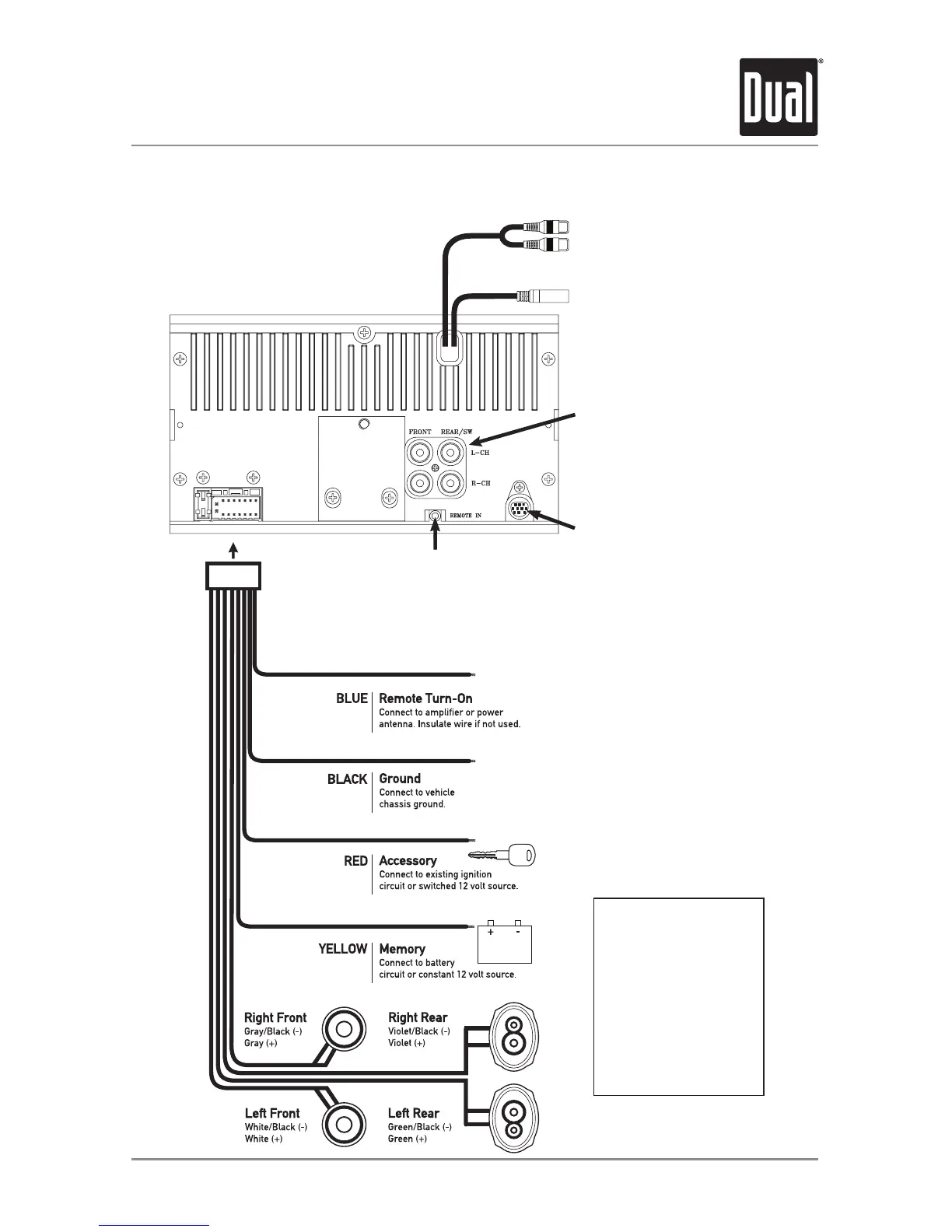

Wiring Diagram
SiriusXM Vehicle Tuner Connection
(tuner sold separately)
Steering Wheel Interface Input
(PAC SWI-PS sold separately)
RCA Preamp Outputs
External Amplifer Connections
YELLOW - Rear RCA Input
Connect a portable device
BLACK - Antenna Input
Connect the vehicle antenna
