Dual XDC100BT - Wiring Diagram; Power and Ground Connections

3
XDM290BT INSTALLATION

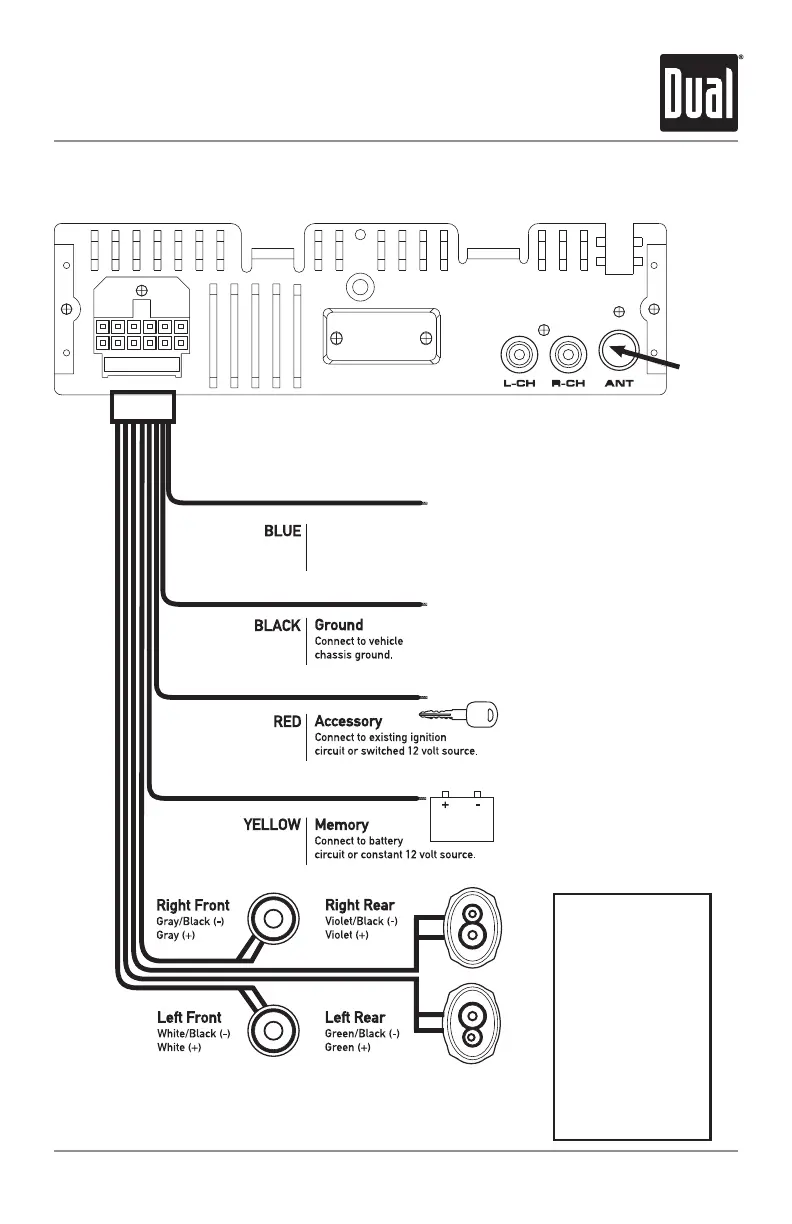

Wiring Diagram
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The
10 amp ATC fuse
located beside the wiring
connector.
unit uses one
Antenna
Connector
Remote Turn On
Connect to amplifier or power
antenna. Insulate wire if not used.
