3
5 AMP
AGC Fuse
Rear Preamp Output
Connect to amplifier RCA input
Antenna Connector

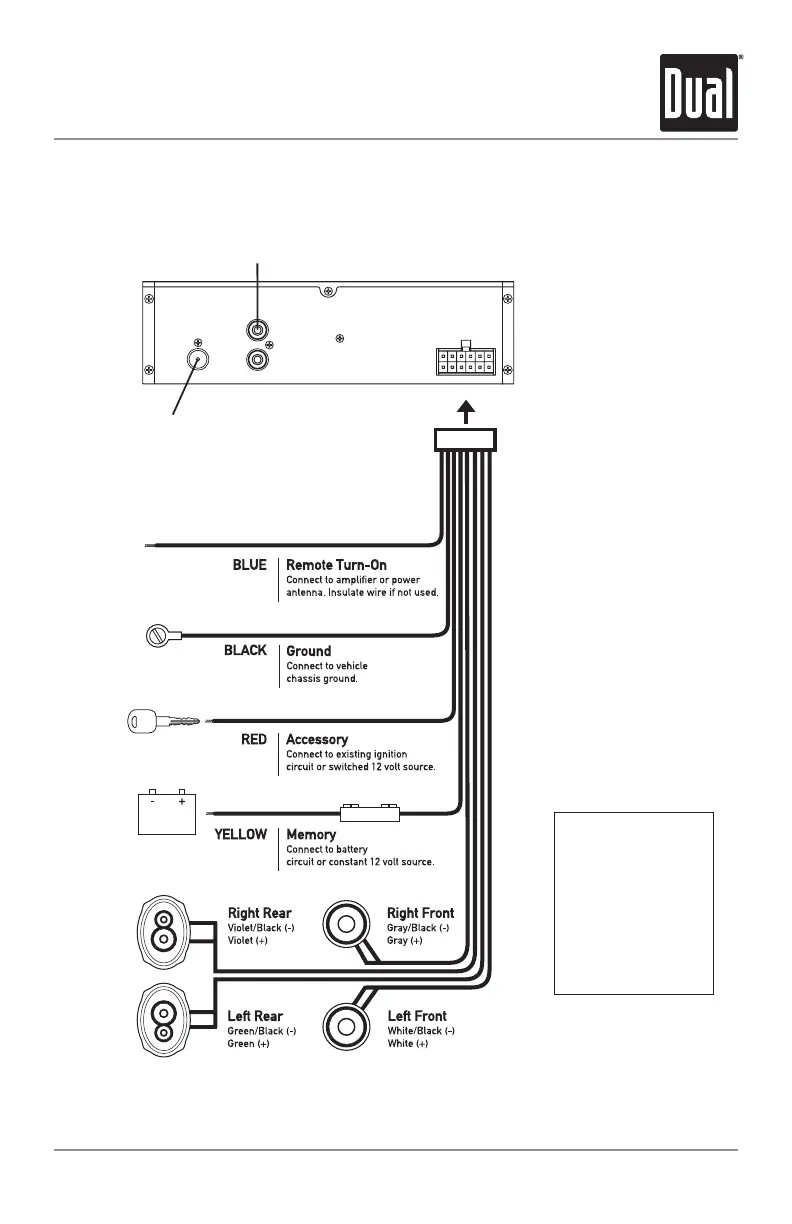

Wiring Diagram
FUSE
Whenreplacingthefuse,
makesurenewfuseisthe
correcttypeandamperage.
Usinganincorrectfuse
coulddamagetheradio.
TheXR4110usesone5amp
AGC fuse located in-line.
* Caution-Donotattachanyspeakerleadstogroundasseveredamagewilloccur.
XR4110 INSTALLATION
