DualLite LSN - Page 14

14
CAUTION:
Orient all batteries with the positive terminals to the right as shown in the diagram above.
Carefully observe battery polarity when making inter-cell and inter-tier connections.
Refertopage17forbatteryterminaltorquespecications.

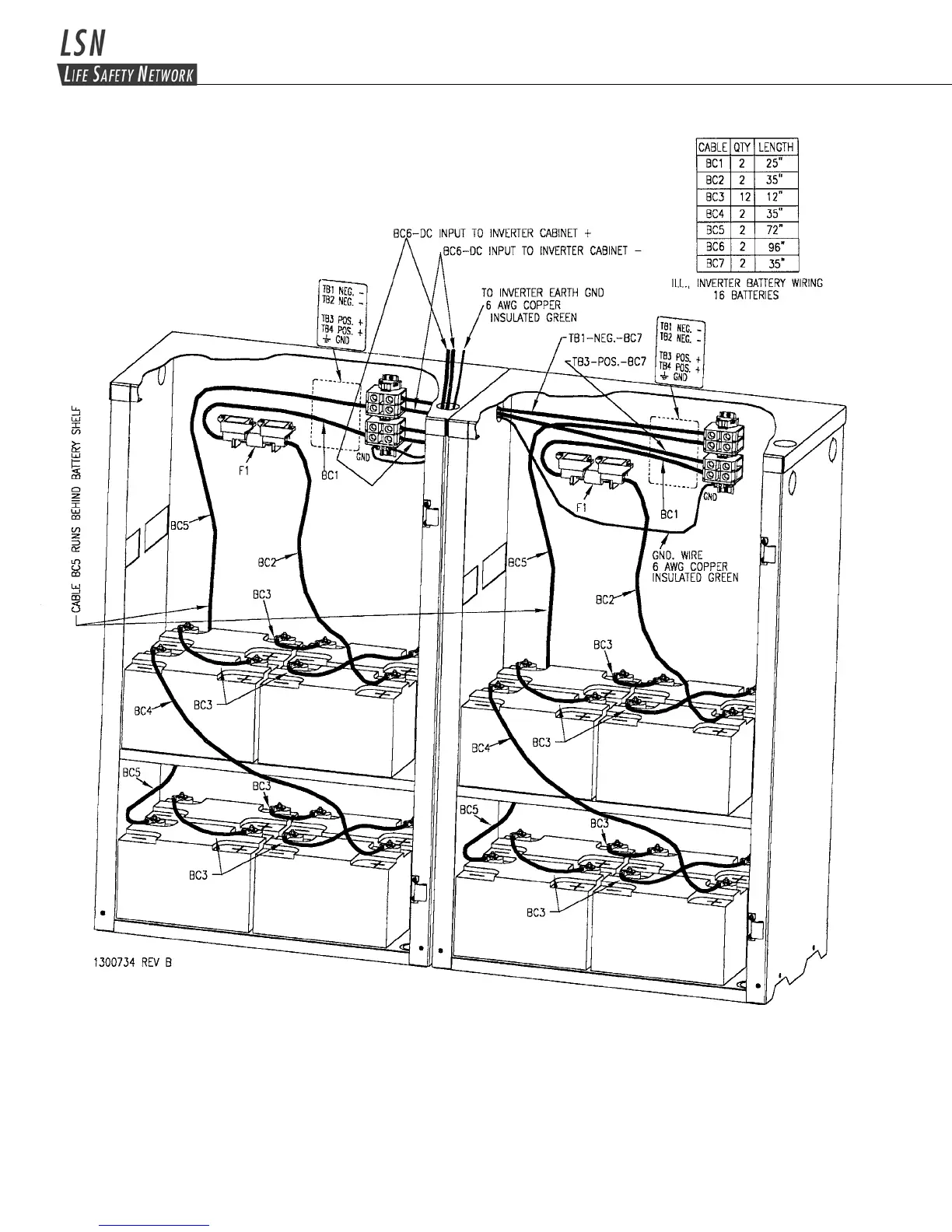

Fig. 2
BATTERY WIRING DIAGRAM
16 BATTERY SYSTEMS
