DualLite LSN - 104. Cabinet Mounting (Physical); 104.1 Dimensions; 104.2 Standard Cabinet Configurations

7

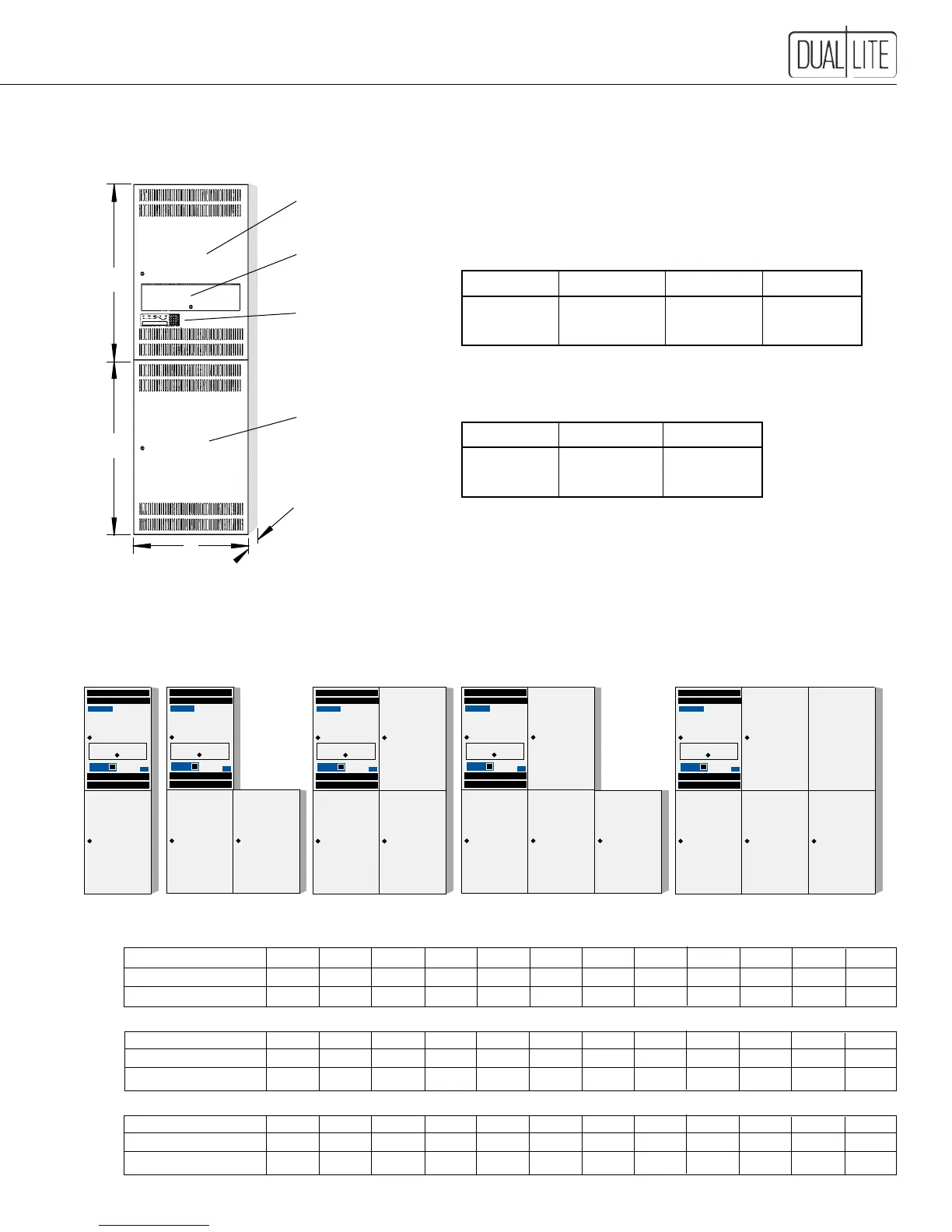

104. Cabinet Mounting
104.1 Dimensions
Table 104A - Dimensions: Unit and Battery Cabinets
Width (A) Height (B) Depth (C) Footprint
30 in. 46 in. 18.65 in 3.88 Ft
2
 (76cm) (117cm) (47cm) (.36m
2
)
Table 104B - Clearances Required:
Sides Top Front
0 in. 12 in. 30 in.
 (0mm) (31cm) (76cm)
104.2 StandardCabinetCongurations
Conguration
"A"
Conguration
"B"
Conguration
"C"
IMPORTANT: If cabinets are installed in congurations other than those shown, factory
supplied inter-cabinet connectors and battery cables may not t.
B
B
A
C
Electronics
Cabinet
User
Interface Panel
Battery
Cabinet
Circuit Breaker
Access Door
Conguration
"D"
Conguration
"E"
Standard Battery Systems for 90-Minute Runtime
Type S Battery – Maintenance-Free Sealed Lead-Calcium – 10-Year Design Life Expectancy
System Capacity 1.0K 2.0K 2.7K 3.7K 4.8K 5.5K 6.6K 8.3K 10.0K 12.5K 15.0K 17.5K
SystemConguration A A A A A B B B B B C C
TotalWeight(lbs.)* 838 1,116 1,122 1,222 1,492 1,926 2,130 2,475 2,829 2,861 4,121 4,393
Type G Battery – Maintenance-Free Sealed Lead-Calcium – 20-Year Design Life Expectancy
System Capacity 1.0K 2.0K 2.7K 3.7K 4.8K 5.5K 6.6K 8.3K 10.0K 12.5K 15.0K 17.5K
SystemConguration A A A A B B B B B D D D
TotalWeight(lbs.)* 1,365 1,384 1,390 1,472 1,684 2,062 2,630 2,679 3,589 3,657 4,885 5,491
Type N Battery – Wet-Cell Nickel-Cadmium – 25-Year Design Life Expectancy
System Capacity 1.0K 2.0K 2.7K 3.7K 4.8K 5.5K 6.6K 8.3K 10.0K 12.5K 15.0K 17.5K
SystemConguration B B B B B C C D D E E Consult
TotalWeight(lbs.)* 1,075 1,486 1,644 1,894 2,232 2,532 2,812 3,481 3,940 4,720 5,505 Factory
* Approximate system weights
