E
49
Replacing bulbs
Before replacing a burnt-out bulb, make sure that the new
one complies with voltage and wattage as specified on the
Electric System for that lighting device (page 65).

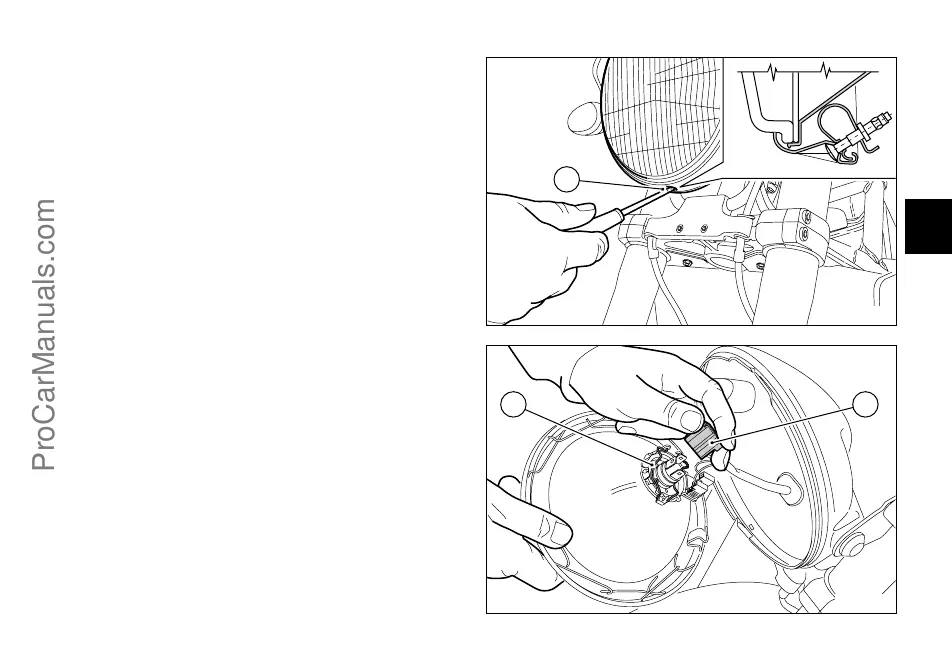

Headlight (fig. 45, fig. 46, fig. 47, fig. 48)
Loosen the lower screw (1) securing the rim/reflector unit
to the body to gain access to the headlight bulbs.
Detach connector (2, fig. 46) from headlight bulb. Release
the clip (3, fig. 46) that holds the bulb in place and take the
bulb out of its socket.
3 2
fig. 46
1
fig. 45
