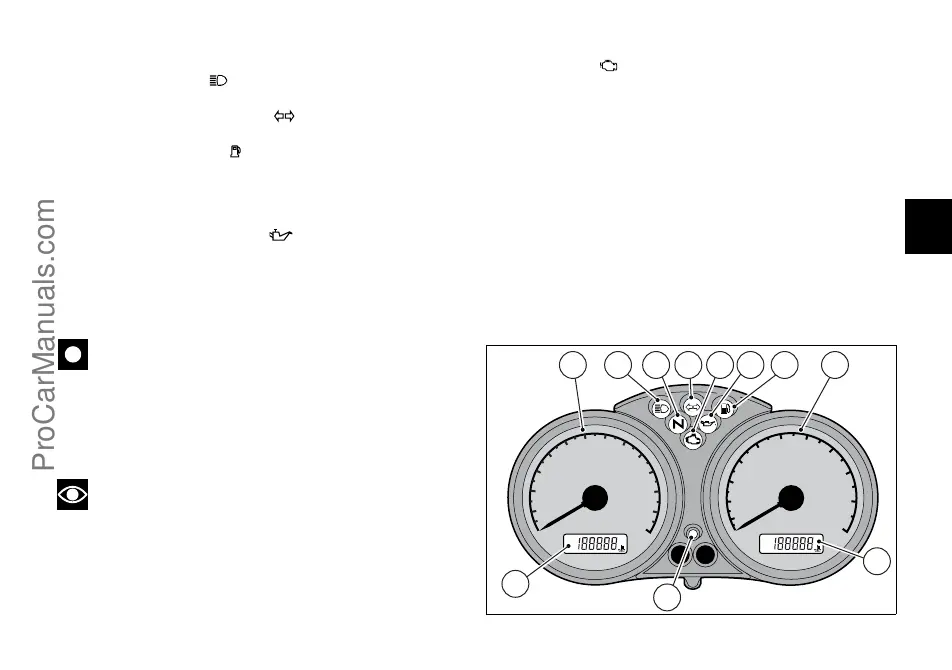

Instrument panel (fig. 4)
1) High beam light (blue).
Comes on when high beam is on.
2) Indicators re.peater light (green).
Comes on and flashes when a turn indicator is on.
3) Fuel warning light (yellow).
Comes on when there are about 3 litres of fuel left in the
tank.
4) Neutral light N (green).
Comes on when in neutral position.
5) Engine oil pressure light (red).
Comes on when engine oil pressure is too low. It briefly
comes on when the ignition is switched to ON and
normally goes out a few seconds after engine starts.
It may shortly come on when the engine is hot, however,
it should go out as the engine revs up.
Important
If this light stays on, stop the engine or it may
damage.
6) Amber light.
Comes on and flashes when the motorcycle is parked
(Immobilizer on), it is also used for immobilizer diagnosis.
Note
When the Immobilizer is on, this light flashes for 24
hours and then goes out. The Immobilizer is still operating.
7) EOBD light (amber).
When on, engine operation is inhibited. It goes out after a
few seconds (usually 1.8 - 2 sec.).
8) Tachometer (km/h).
Gives road speed.
a) LCD (1):
- Odometer (km).
Gives total distance covered.
- Trip meter (km).
This function indicates the distance covered since the
meter was last reset.
9) Revolution counter (rpm).
Shows the engine rotation speed/minute.
b) LCD (2):
- Clock
- Oil temperature
TOT
TRIP
¡C
¡F
AMPM
260
240
220
200
180
160
140
120
100
80
60
40
20
0
km/h
TOT
TRIP
¡C
¡F
AMPM
min
-1
X1000
11
10
9
8
7
6
5
4
3
2
1
0
1
4 2
7
5 3
8 9
a
b
6
fig. 4
