Engine rpm indication (RPM)
The instrument panel receives the engine rpm
information and displays it on the relevant bargraph (in
TRACK, FULL and OFF ROAD display modes only).
The information is displayed by the bargraph filling
from the left to the right according to the engine rpm
and with the enlargement of the numerical digit of the
relevant miles (e.g., if the RPM value is "8000" or
higher, number "8" is displayed bigger).
When reaching 12000 rpm no numerical digit is
enlarged.
The area for the 8500-10000 rpm range (pre-warning
area) is indicated on the display in orange, used for
filling the bar graph (orange area).
The area for the 10000-11000 rpm range (warning
area) is indicated on the display in red, used for filling
the bar graph (red area).

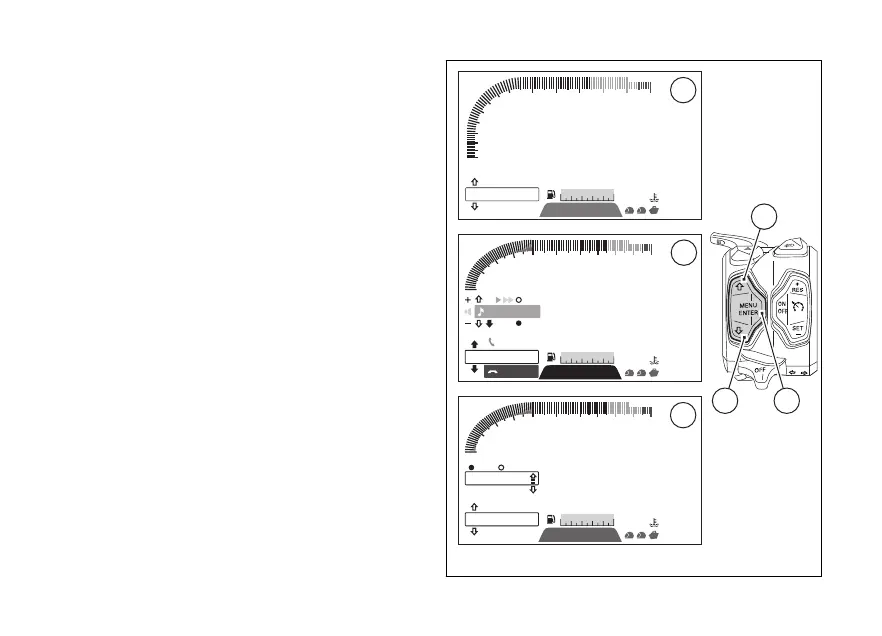

TRACK (A) layout indicates rpm in a different way
compared to FULL (B) and OFF ROAD (C) layouts.
CITY layout does not provide for rpm indication.
When the threshold before the rpm limiter is reached,
the corresponding warning lights will turn on.
During the first 1000 km (600 mi) of the odometer
(vehicle break-in period) a “virtual” engine rpm limiter
6
