A. Oven Controls —
Electro-Mechanical
• 1. The Power Switch - Controls power to ON or
Cool Down Function.
• 2. The Indicator Light - When lit indicates burners
are operating. When the light goes out, the oven
has reached its cooking temperature.
• 3. The Cooking Thermostat - Controls the oven
temperature.
• 4. The Cooking Timer - Sounds an electric buzzer
on expiration of operator set time as a reminder
to remove product at end of cooking cycle.
• 5. The Light Switch (Optional) - Controls interior
lights.
• 6. The Fan Speed Switch (Optional) - Sets fan
speed to high or low.
• 7. The Manual Gas Shut Off Valve - Turns gas
supply to oven controls on or off.

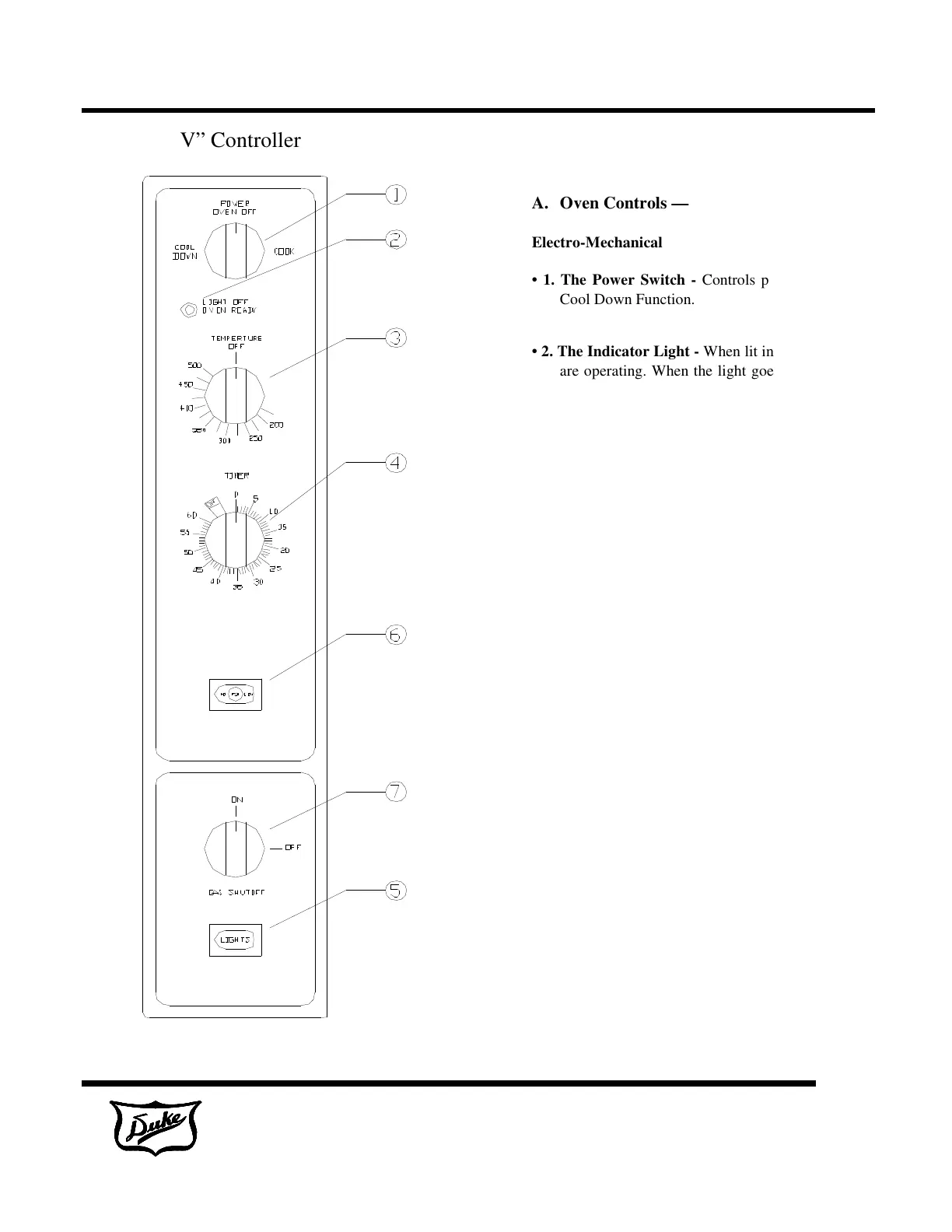

“V” Controller
