Duke FBB-10-230 - Broiler Assembly

Installation & Operation Manual for Flexible Batch Broiler - CE Units
8
C. BROILER ASSEMBLY
Beforeassemblingandinstallingthebroiler,pleasecheck
tomakesurethatallnecessarypartsarepresent.
ITEM # PART NAME PART #
1 PRODUCTPANSHELF 175353
2 DISCHARGECHUTE 175340
3 DISCHARGEHOOD 175362
4 DISCHARGEPANHOLDER 175358
5 DISCHARGEGREASEPAN 175357
6 “V”GREASEPAN 175325
7 MAINGREASEPAN 175329
8 LOADER 175444
9 LOADERTRAY 175430
10 LOADERBRACKET 175438
11 DOOR 175429
12 LOADERRAMP 175741
13 IMPEDANCEPAN 175226
14 CATALYST(OPTIONAL) 175480
15 CATALYSTGUARD(OPTIONAL) 175482
16 SANITATIONPAIL 175842
Loader Install Tool
(Included with Broiler Tools Kit)
12
13 15
11
10
9
8
7
6
5
4
3
2
1
16

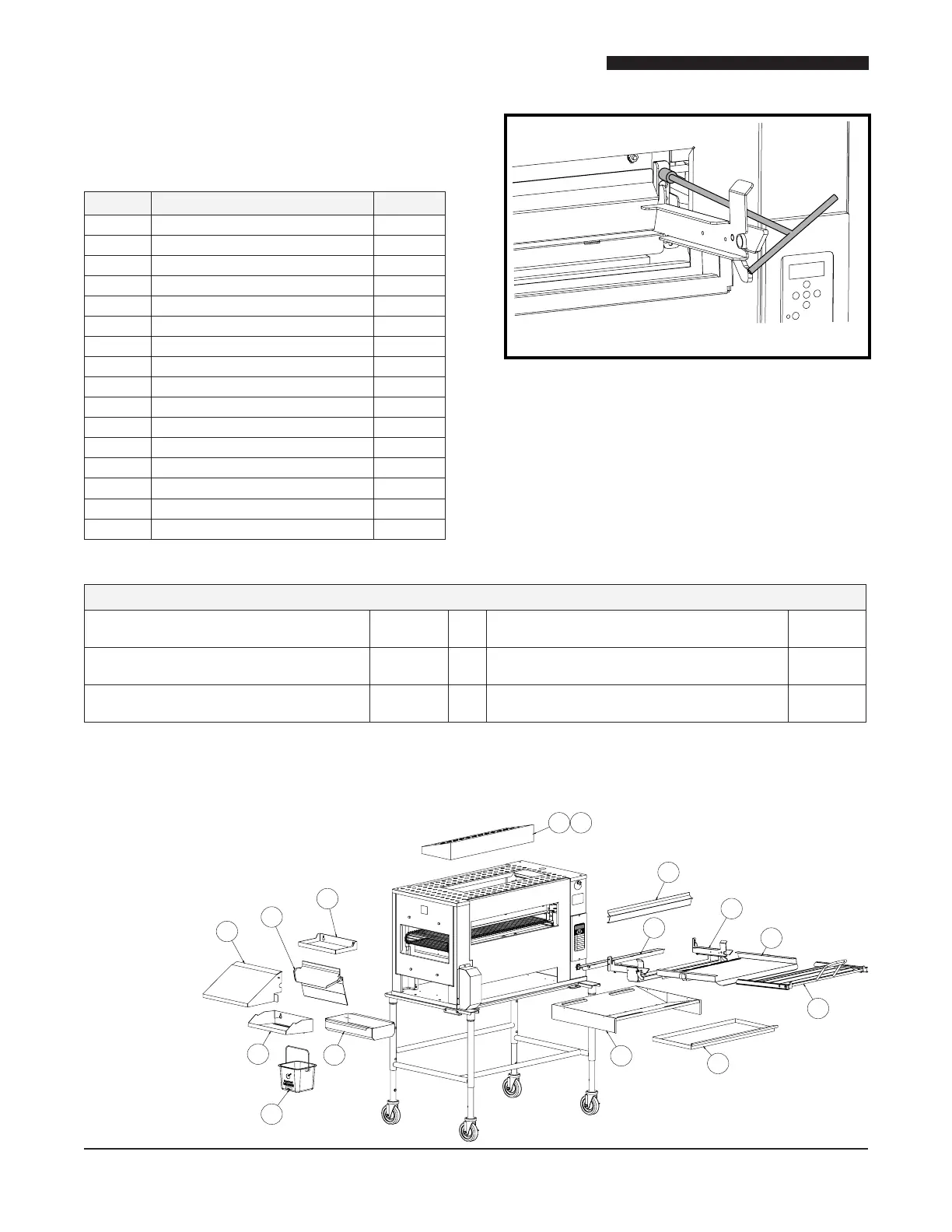

Setup: Installallitemsasshownbelow.
Note: Install loader bracket with (4) ¼-20 nuts.
Use supplied extension tool to remove and
reinstall nuts.
(Nuts are shipped installed on
loader mounting studs.)
OPTIONAL SERVICE PARTS & ACCESSORIES
PARTSKIT–I2H/I2E(G20)&I2L(G25)(w/
Controller&CookChain)
176351
PARTSKIT- (Burner,Arrestor,Loader,&Burner
Shield)
176353
PARTSKIT–I3B/P(G30)&I3P(G31) (w/
Controller&CookChain)
176352 KIT–CEGASHOSECONNECTOR
175831
PARTSKIT-(Burner&FlameArrestor) 176354 KIT–CEGASHOSECONNECTOR-UK 175827
