Dunkirk DCC-150 - External Buffer Tank Piping Diagram (Primary Pump)

25

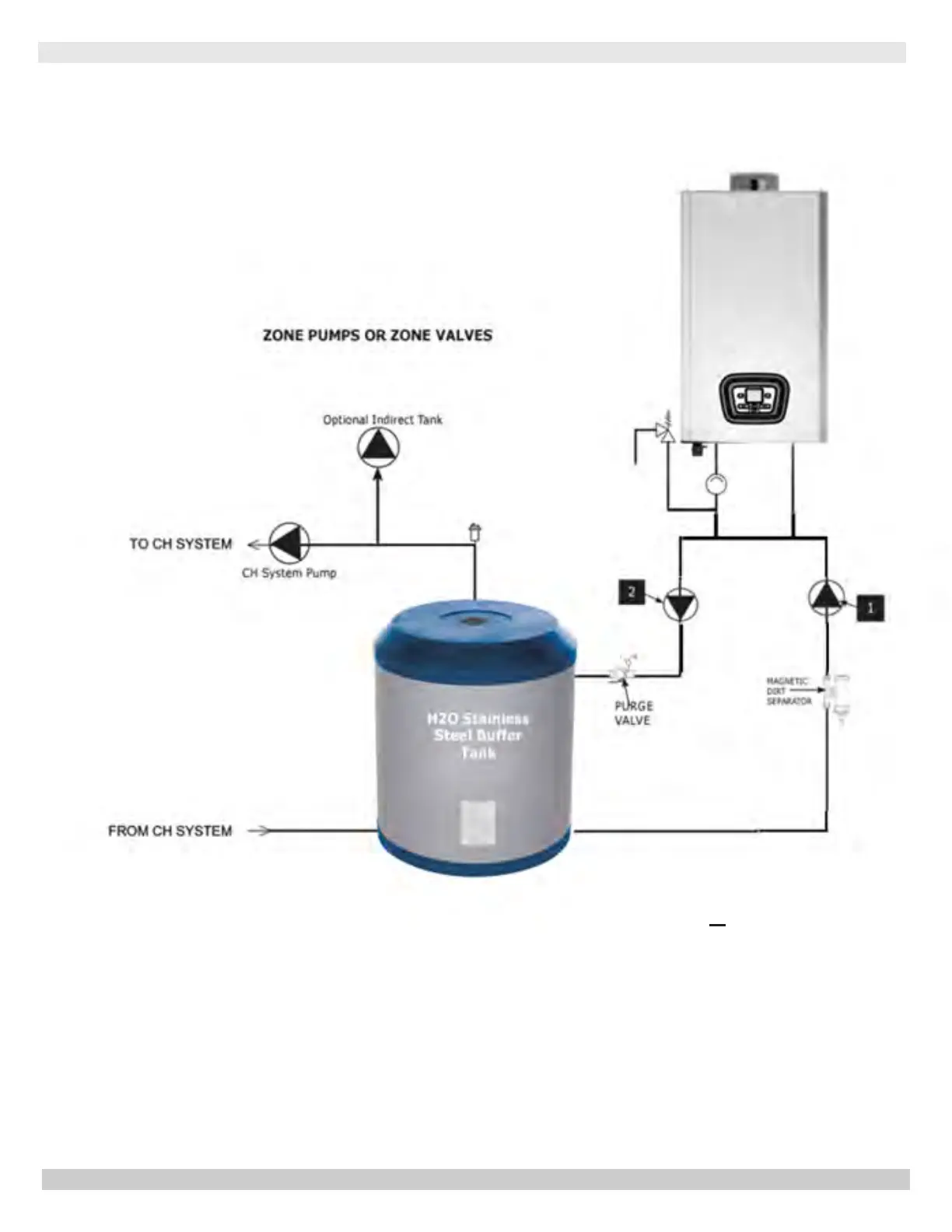

EXTERNAL BUFFER TANK - PIPING DIAGRAM
NOTE : Acceptable primary pump
locations: Either 1 or 2.
For pump wiring see diagrams on
pages 26-29.
Buffer Tank On Central Heat Circuit With Primary Pump and Supplied Manifold
PN 240011430 REV. O [07/01/2021]
