Dunkirk DCC-150 - Component Listing (DCC 115)

11

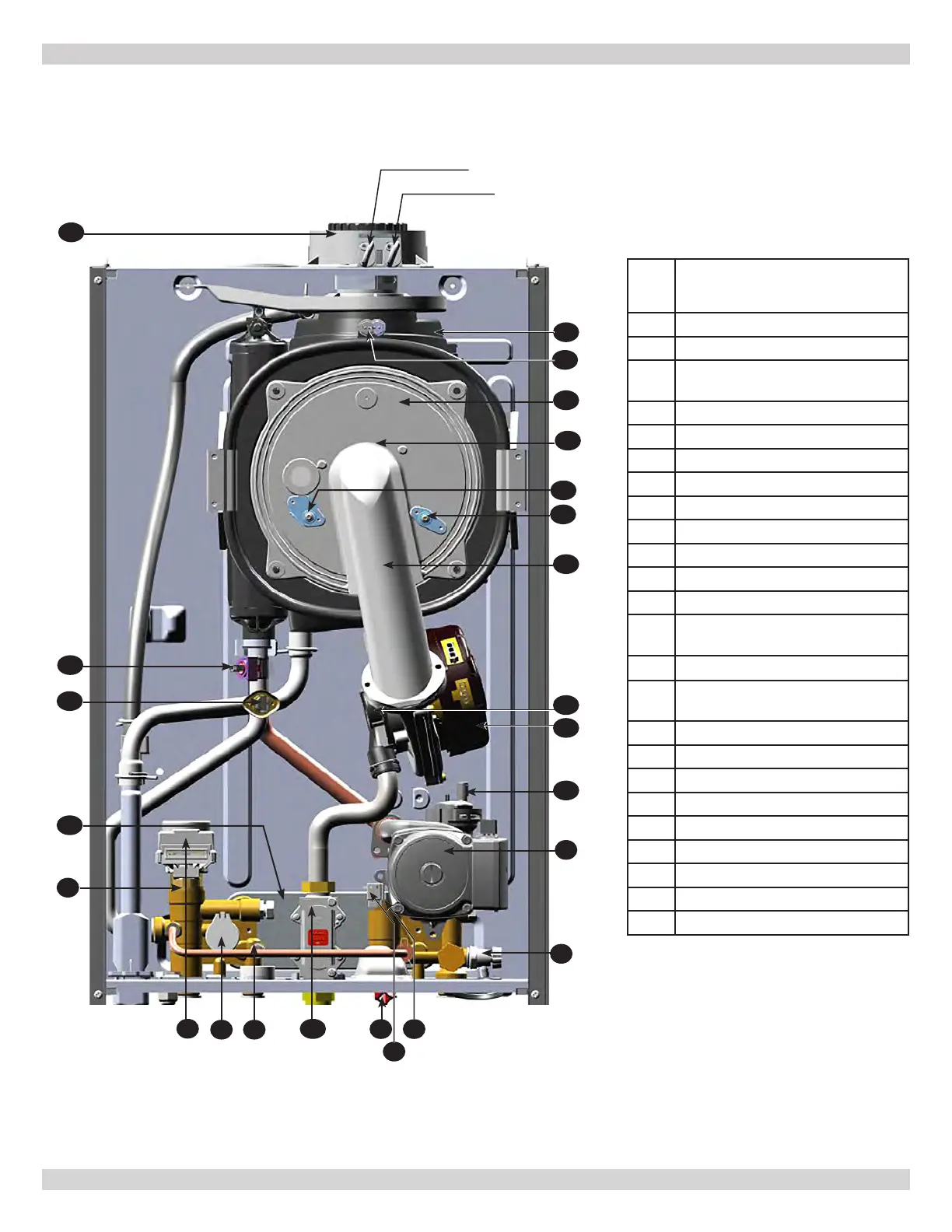

3 - COMPONENT LISTING
Illustrations are a depiction of the boiler for general location of parts and may vary depending on model.
2
1
3
8 7
10
5
12
13
11
18
14
19
6
16
21
20
15
9
23
4
ITEM
NO.
Dunkirk
DCC 115
1 Pump with Air Separator
2 Boiler Drain Tap
3
Flow Sensor with Water Filter
and Flow Restrictor
4 DHW Priority Sensor
5 Controlled Fast Fill
6 Gas Valve
7 NTC DHW Sensor
8 
9 3-Way Valve with Motor
10 Check Valve
11 DHW Heat Exchanger
12 Water Safety Thermostat
13
NTC Heating sensor (Flow/Return)
QTY 2, (1 Shown for clarity)
14
Coaxial Connector
15
Heat Exchanger Temperature
Protector
16 Flue Sensor
17 Heat Exchanger
18 Burner (not shown)
19 Ignition Electrode
20 Flame Detection Electrode
21 Air/Gas Blend Manifold
22 Venturi
23 Fan
24 Air Vent
22
17
24
Exhaust Port
Intake Port
240013360 REV A [07/01/2021]
DUNKIRK - DCC 115
