Dunkirk DXL Series - 1 Physical Data

4
1 - PHYSICAL DATA
Model
DXL-060K DXL-095K DXL-120K DXL-150K DXL-175K DXL-200K DXL-235K
# Sections 3 4 5 6 7 8 9
A Width with Jacket
13-³/" 13-³/" 16-/" 19" 21-/ 27-¹/ 27-¹/
340 mm 340 mm 411 mm 483 mm 555 mm
700 mm 700 mm
B Vent Location (Half Width)
6-
³/ " 6- ³/ " 8-¹/" 9-¹/ 10-¹
5
/" 13- ³/ "
13-
³/ "
171 mm
171 mm
206 mm 241 mm 278 mm
349 mm 349 mm
C Height
32-
¹/" 32-¹/" 32-¹/" 32-¹/" 32-¹/" 32-¹/" 32-¹/"
816 mm 816 mm 816 mm 816 mm 816 mm 816 mm 816 mm
D Damper Height
6" 6" 6-¹/ 6-¹/ 7" 7" 7"
153 mm 153 mm 165 mm 165 mm 178 mm 178 mm 178 mm
E Depth w/o Draft Hood Installed
22" 22" 22" 22" 22" 22" 22"
559 mm 559 mm 559 mm 559 mm 559 mm 559 mm 559 mm
F Depth W/ Draft Hood Installed
26" 26" 26" 26" 26" 26" 26"
660 mm 660 mm 660 mm 660 mm 660 mm 660 mm 660 mm
G Flue Diameter
4" 5" 6" 6" 7" 7" 7"
102 mm 127 mm 152 mm 152 mm 178 mm 178 mm 178 mm
Supply & Return Tappings 1-
¹/ " NPT 1- ¹/ " NPT 1- ¹/ " NPT 1- ¹/ " NPT 1- ¹/ " NPT 1- ¹/ " NPT 1- ¹/ " NPT
Natural Gas Inlet 1/2" NPT 1/2" NPT 1/2" NPT 1/2" NPT 1/2" NPT 3/4" NPT 3/4" NPT
Relief Valve NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT
Drain Valve NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT 3/4" NPT
Heating Water Content, Gal (Liters) 1.9 (7.2) 2.3 (8.8) 2.8 (10.5) 3.2 (12.2) 3.7 (13.9) 4.1 (15.6) 4.6 (17.3)
Air Cushion Tank, Gal (Liters) Estimate.*
(Actual Based on System Size)
15 (27)* 30 (114)* 30 (114)* 30 (114)* 30 (114)* 30 (114)* 30 (114)*
Boiler Weight, less pkg - Lbs (KG) 170 (77) 210 (96) 250 (114) 280 (128) 320 (145) 350 (159) 390 (177)
Shipping Weight, lbs (KG) 215 (98) 250 (114) 295 (134) 335 (152) 385 (175) 420 (191) 465 (211)
PN 240012787 Rev. C [11/15/2020]

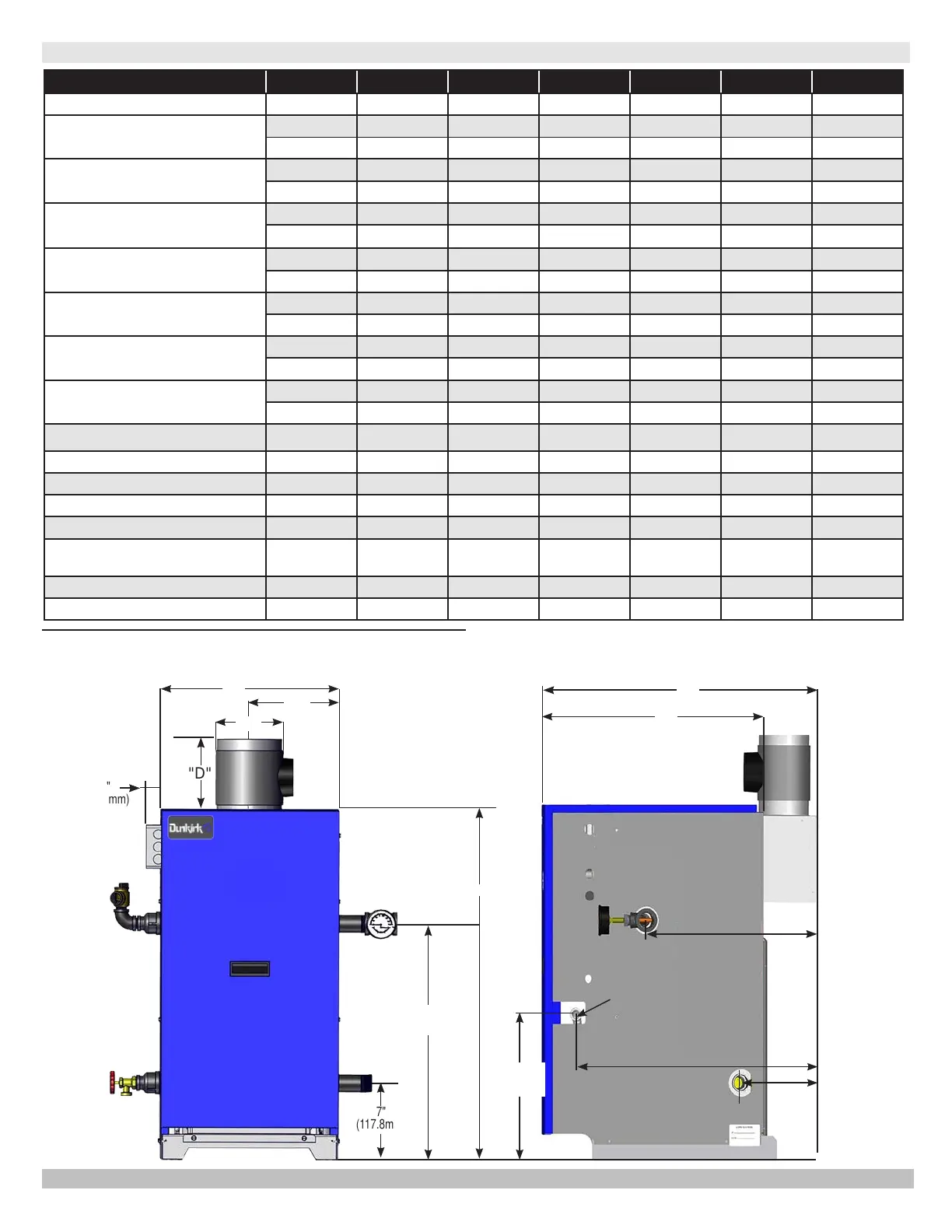

Figure 1 - Dimensions
Front View
Right Side View
"A"
"B"
"C"
"D"
"G"
2"
(50.8 mm)
"F"
"
(549.3 mm)
7"
(117.8mm)
12¹/"
(317.5 mm)
23" (584mm)
7¹/" (181mm)
16³/" (416mm)
"E"
GAS SUPPLY
