Duplo 660P User Manual

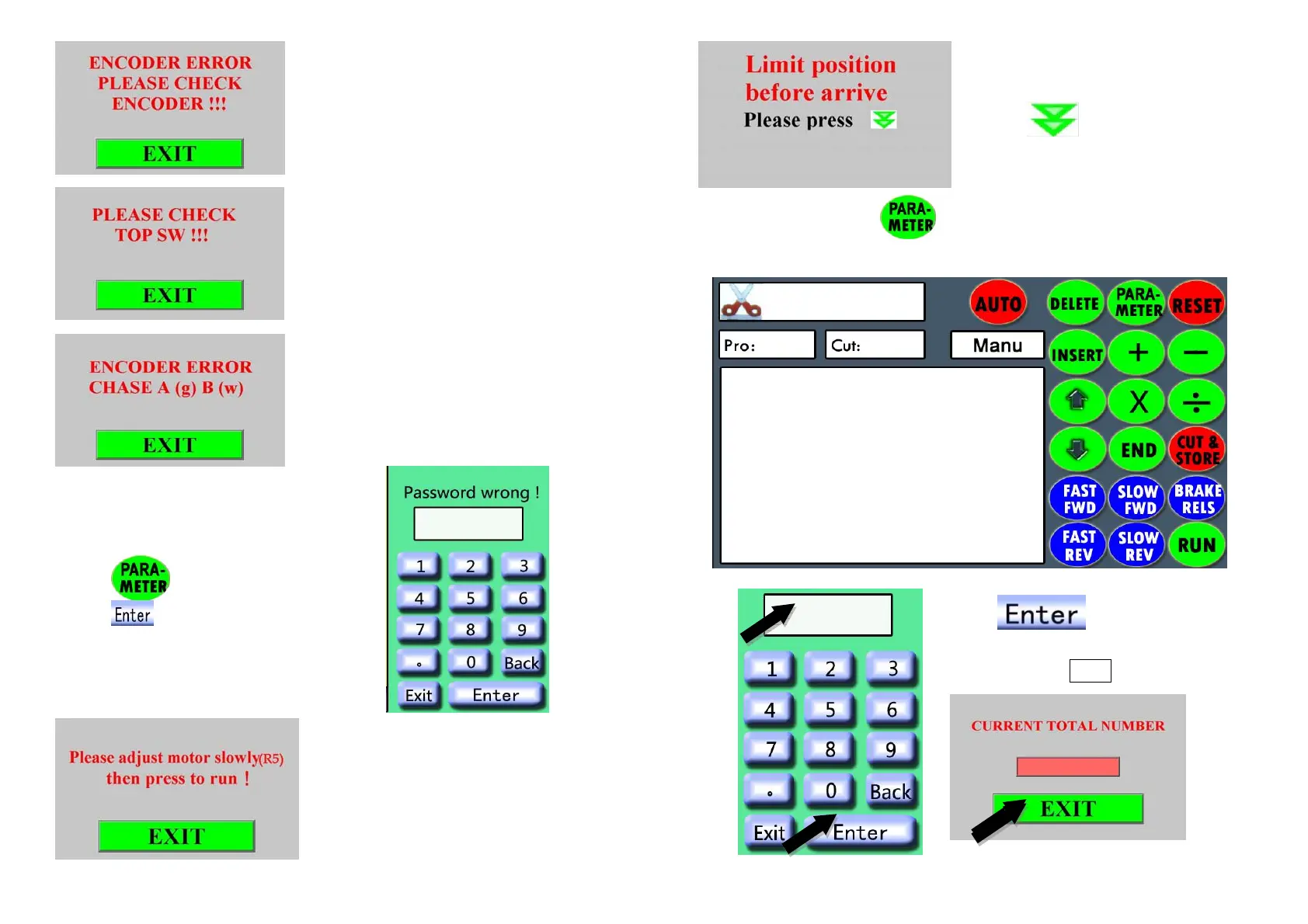

Error Display:
Check if the encoder wires cut off
and faulty, or the plug loosen.
Error Display:
Check the clamp top position switch.
Error Display:
Check if wrong connection for the
encoder wires A & B. Switch both
wires connection.
Error Display:
Press and enter password,
press if this display appears, it
means the password is wrong,
please enter the correct code.
Error Display:
Check & adjust R5, then press
RUN, if you can’t get proper
adjustment, change a new R5.
Error Display:
Check if backgauge overrun.
Press to move
bgackguage backward.
In Manual mode, press to get into parameter setup, press
the place where arrow is,
After enter password <56789>,
press , below display
appears, you can read out total cuts
number, press EXIT quit the screen.
32
~ 49 ~ ~50~
56789
26.000
0 0
0.000
