15

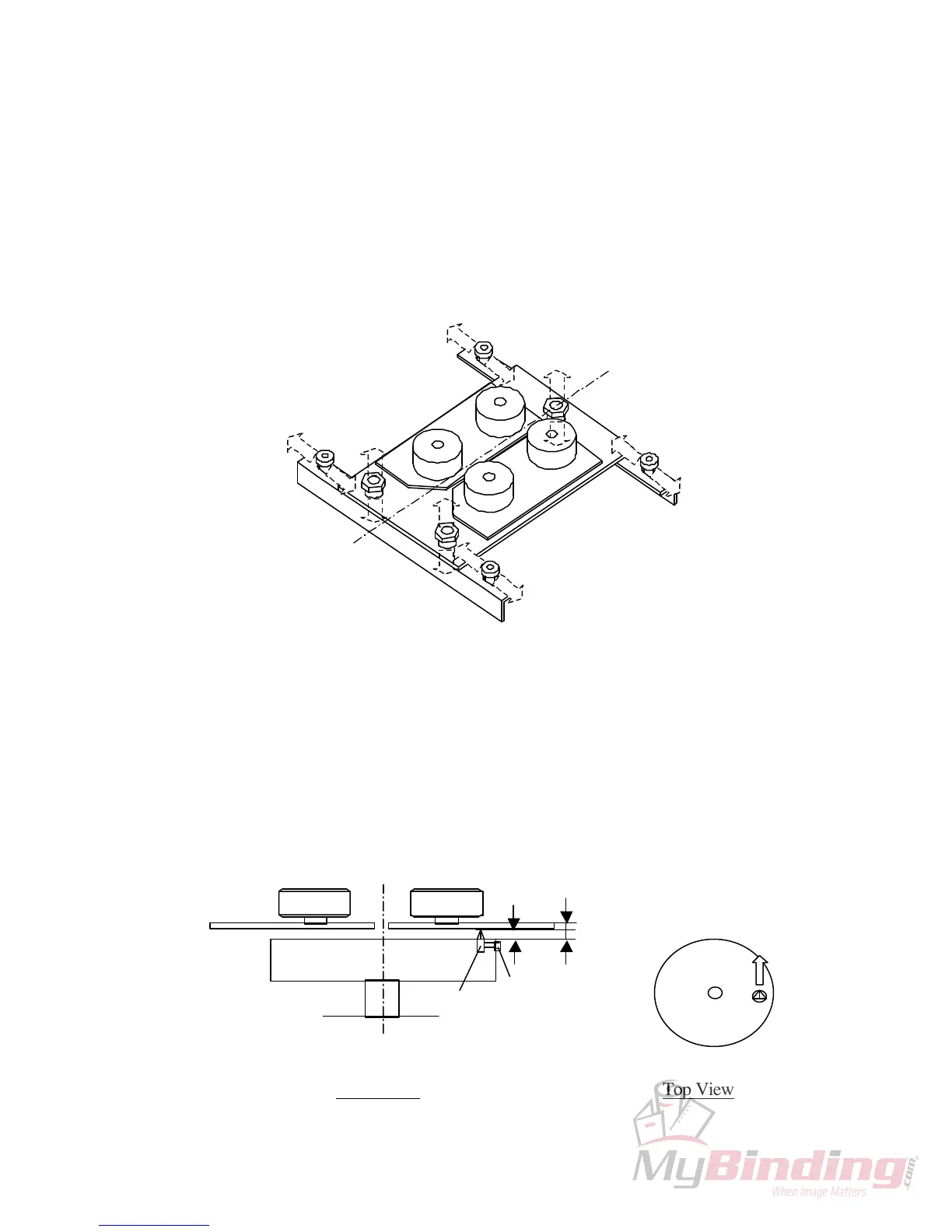

1-3 Adjustment
In order to get appropriate depth of the cuts and the precision of the center path for
clamp station, the notching station can be adjusted to the up, down, right, and left
positions as shown. Note that notching surface should be adjusted evenly on both sides
to prevent tilting the notching surface. Otherwise, the cuts of the book will have one
side deeper than the other. The standard depths of the cuts are 1 mm evenly on the
spine of the book.
You also can lift up the notching station to gain the depth of the cuts when the blade
has been worn out a little bit. Or you have to change the blade.
Left
Up Center Line
Down
Right
Changing the blade:
1) Open one side of the notching station.
2) Loosen the blade screw and remove the old blade.
3) Install the new blade as shown, then set the height of the blade about 3mm above
the surface of notching wheel.
4) Tighten the blade screw.
7 mm Blade Direction
3 mm on Notching Wheel
( CCW )
Notching Wheel
Screw
Blade
Side View Top View
To Next Page
